Model RVSK Series
Spool Kit

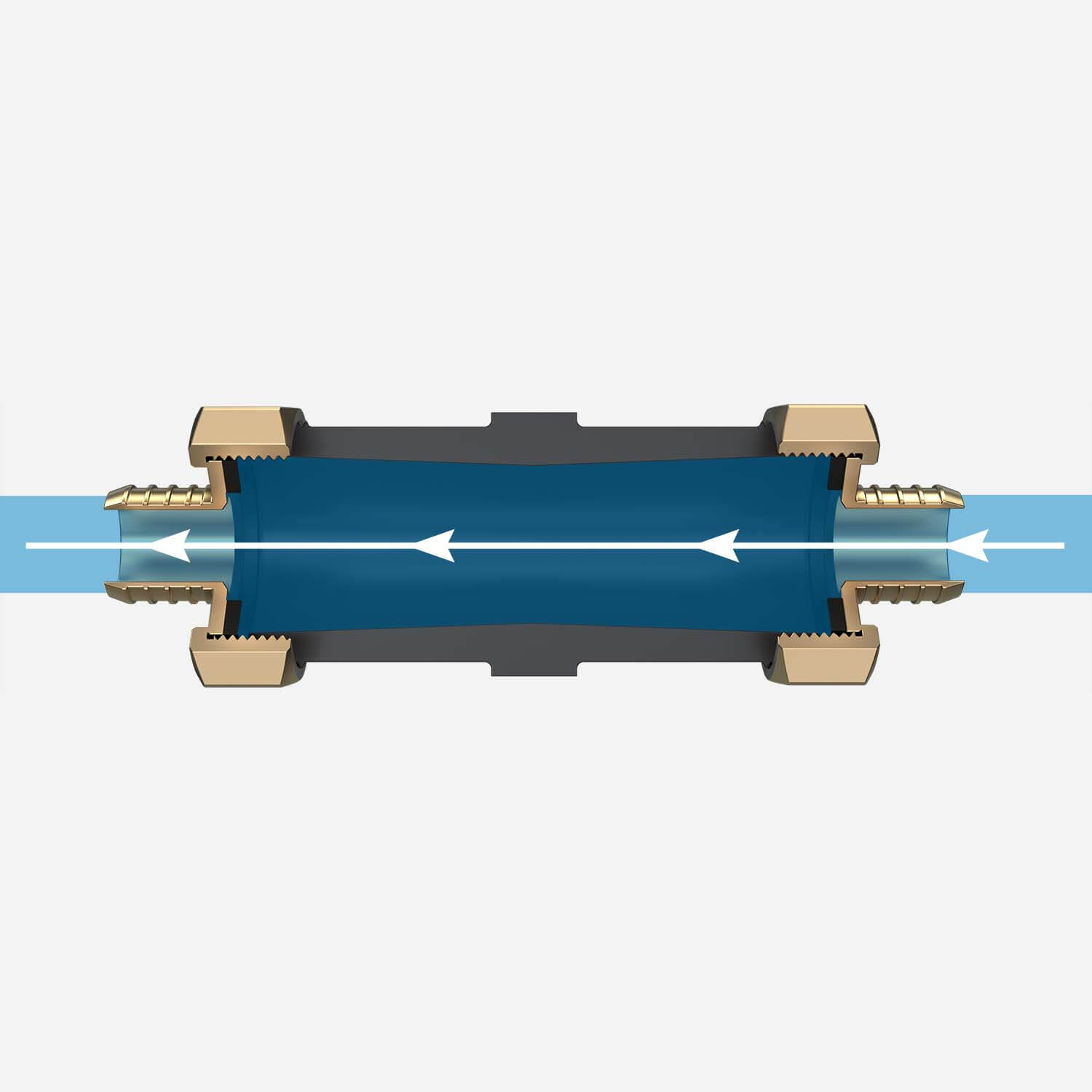

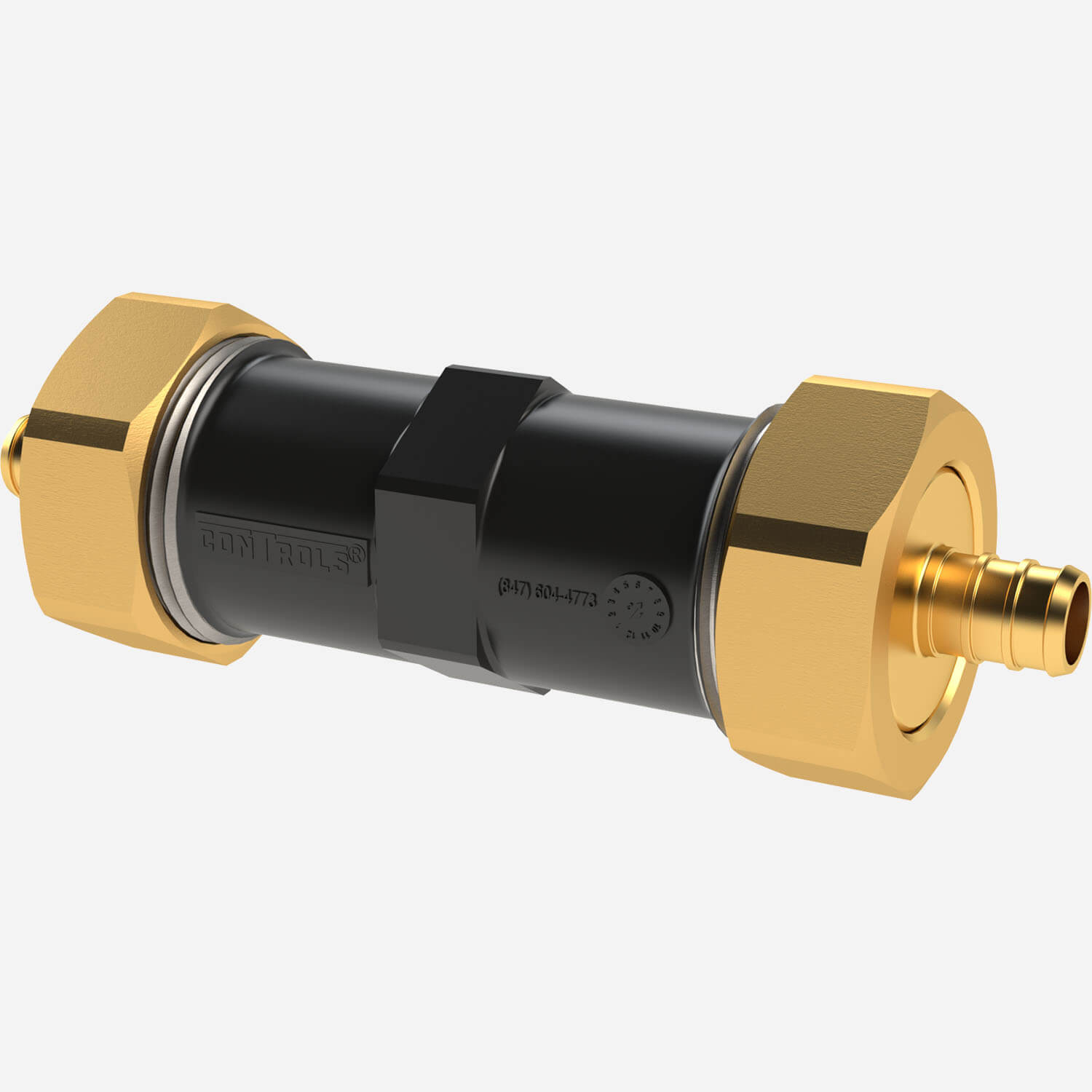

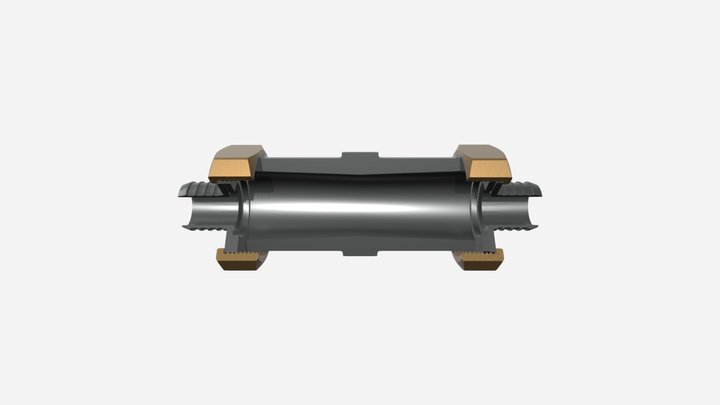

RVSK Series PRV Spool Kit is designed as a temporary spacer in potable water systems. The face-to-face length of the spool piece matches that of the Acorn ConTrols® RV03. These are intended for installation in newly constructed systems to deter theft and help prevent valve damage caused by startup debris.
The Spool Kit permits testing of the piping for leaks and pressure loss while providing means to flush piping systems prior to installing the PRV. The kit allows fast and easy replacement with the Pressure Reducing Valve and features Lead-Free construction suitable for water supply pressures up to 400psi (27.6 bar) and temperatures up to 180°F (82.2°C).
Features
- Available Sizes 1/2" to 1-1/4” with Sweat, NPTF, PEX, Press, and CPVC Adapter Kits
- Integral 300 Series Stainless Steel Strainer
- Lead-Free Construction- The wetted surface of these valves contacted by consumable water contains less than 0.25% of lead by weight in conformance with national lead-free law.
- EPDM Gaskets
- Engineered UV Resistant Thermoplastic
- Optional Pressure Gauge Available
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | RVSK Series Spook Kit | 0 | 303 KB | ||
| | Spook Kit | 0 | 194 KB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Acorn ConTrols® PRV Flyer (pdf) | 0 | 1 MB | ||
| | Kwik Ship® Brands PRV Spec Sheet (pdf) | 0 | 707 KB | ||
 | | Make water circulation simple with Acorn ConTrols® valves. Our valves address all your water supply needs throughout the entire building at every fixture on every floor. Watch our video to learn how! | 0 | 133 KB |
Specifications
| Compliance | NSF/ANSI 372, No Lead - Federal Public Law 111-380 |
| Valve Size | 1/2", 3/4", 1", 1-1/4" |
| Connections | Sweat, NPTF, CPVC, PEX-B, Press Fit |
| Pressure Rating | 400 PSI (2758 kPa) |
| Temperature Rating | 180°F (82.2°C) |
| Brand | Acorn ConTrols® |
| Product Type | Spool Kit, Thermostatic Balancing Valve |
Models
