Pressure Reducing Valves
RV03 Series Water Pressure Reducing Valves are designed to regulate incoming potable water pressure to protect plumbing system components and reduce water consumption. The valve is suitable for supply pressures up to 400 psi (27.6 bar), is factory set to 50 psi, and may be adjusted from 10 to 75 psi (69 to 517 kPa). Optionally available with factory preset pressure to suit customer requirements (must specify).
Available Sizes
PRV used in residential, commercial, institutional, and industrial applications
All parts, including the strainer, are quickly and easily serviceable without removing the valve from the line. The Integral Bypass prevents excessive downstream pressure caused by thermal expansion. The RV03 is designed to provide longevity with smooth, quiet operation under a wide range of inlet pressure and flow variations.
Features
- All Stainless Steel Hardware eliminates the need for a "Sealed Cage"
- Integral 300 Series Stainless Steel Strainer
- Available Sizes 1/2” to 2” with Sweat, NPTF, PEX, Press, and CPVC Adapter Kits
- Brass Body and Internal Stem
- Lead-Free construction to meet NSF-61 Requirements - The wetted surface of these valves contacted by consumable water contains less than 0.25% of lead by weight in conformance with national lead-free law.
- EPDM Seals and Reinforced Rolling Diaphragm
- Available with Engineered UV Resistant Thermoplastic. Steel, Brass Bonnet
- Temporary Spool Kit available; refer to CONTROLS® RVSK Spool Kit
- Optional Pressure Gauge Available
- Valve Bodies and Gauge Adapters have female NPT threads to allow for installation without optional adapter(s).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | RV03 Series - Pressure Reducing Valves; RV03B Series - Large All-Brass Pressure Reducing Valve | 0 | 967 KB | ||
| | Pressure Reducing Valves 1/2" to 2" | 0 | 600 KB | ||
 | | Pressure Reducing Valves, Brass Body, Plastic Bonnet, Standard Spring [RV03P0-1000 | 1/2" Valve Size; RV03P0-2000 | 3/4" Valve Size; RV03P0-3000 | 1" Valve Size; RV03P0-4000 | 1-1/4" Valve Size; RV03P0-5000 | 1-1/2" Valve Size; RV03P0-6000 | 2" Valve] | 0 | 384 KB | ||
| | Pressure Reducing Valves, Brass Body, Plastic Bonnet, Standard Spring [RV03P0-1000 | 1/2" Valve Size; RV03P0-2000 | 3/4" Valve Size; RV03P0-3000 | 1" Valve Size; RV03P0-4000 | 1-1/4" Valve Size; RV03P0-5000 | 1-1/2" Valve Size; RV03P0-6000 | 2" Valve] | 0 | 715 KB | ||
| | Pressure Reducing Valves, Brass Body, Steel Bonnet, Standard Spring [RV03S0-1000 | 1/2" Valve Size; RV03S0-2000 | 3/4" Valve Size; RV03S0-3000 | 1" Valve Size; RV03S0-4000 | 1-1/4" Valve Size; RV03S0-5000 | 1-1/2" Valve Size; RV03S0-6000 | 2" Valve] | 0 | 384 KB | ||
| | Pressure Reducing Valves, Brass Body, Steel Bonnet, Standard Spring [RV03S0-1000 | 1/2" Valve Size; RV03S0-2000 | 3/4" Valve Size; RV03S0-3000 | 1" Valve Size; RV03S0-4000 | 1-1/4" Valve Size; RV03S0-5000 | 1-1/2" Valve Size; RV03S0-6000 | 2" Valve] | 0 | 716 KB | ||
| | Pressure Reducing Valves - Brass Bonnet, Standard Spring Tension [RV03B0-2 | 3/4" valve size;RV03B0-3 | 1" valve size; RV03B0-4 | 1-1/4" valve size; RV03B0-5 | 1-1/2" valve size; RV03B0-6 | 2" valve size] | 0 | 532 KB | ||
| | Pressure Reducing Valves - Brass Bonnet, Standard Spring Tension [RV03B0-2 | 3/4" valve size;RV03B0-3 | 1" valve size; RV03B0-4 | 1-1/4" valve size; RV03B0-5 | 1-1/2" valve size; RV03B0-6 | 2" valve size] | 0 | 947 KB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Acorn ConTrols® PRV Flyer (pdf) | 0 | 1 MB | ||
| | Kwik Ship® Brands PRV Spec Sheet (pdf) | 0 | 707 KB | ||
 | | Make water circulation simple with Acorn ConTrols® valves. Our valves address all your water supply needs throughout the entire building at every fixture on every floor. Watch our video to learn how! | 0 | 133 KB |
Specifications
| Valve Size | 1/2", 3/4", 1", 1-1/2", 1-1/4", 2" |
| Pressure Rating | 400 PSI (2758 kPa) |
| Temperature Rating | 180°F (82.2°C) |
| Pressure Range | 10 - 75 PSI (69 - 517 kPa) |
| Connections | PEX-A, Sweat, NPTF, PEX-B, CPVC, Press Fit |
| Compliance | NSF/ANSI 61, ASSE 1003, CSA B356-10, UPC, No Lead - Federal Public Law 111-380 |
| Brand | Acorn ConTrols® |
| Product Type | Pressure Reducing Valve |
Models
RV03 - -
Bonnet Material 1st Cell
- B | Brass
- P | Plastic
- S | Steel
Spring Tension 2nd Cell
- 0 | Standard Pressure
- H | High Pressure
Valve Size 3rd Cell
- 1 | 1/2"
- 2 | 3/4"
- 3 | 1"
- 4 | 1-1/4"
- 5 | 1-1/2"
- 6 | 2"
Inlet Adapter Type 4th Cell
- 0 | None
- A | Sweat
- B | NPTF
- C | PEX-B
- D | CPVC
- E | Press Fit
- F | PEX-A
Outlet Adapter Type 5th Cell
- 0 | None
- A | Sweat
- B | NPTF
- C | PEX-B
- D | CPVC
- E | Press Fit
- F | PEX-A
Presure Gauge 6th Cell
- 0 | No Gauge Adapter
- G | Adapter with 0-20 psi Gauge
- T | Adapter with 1/4" Plug (No Gauge)
Optional Preset 7th Cell
Indicate Factory Preset Pressure required when it differs from the Standard Factory Preset of 50 PSI.
Sample Configurations

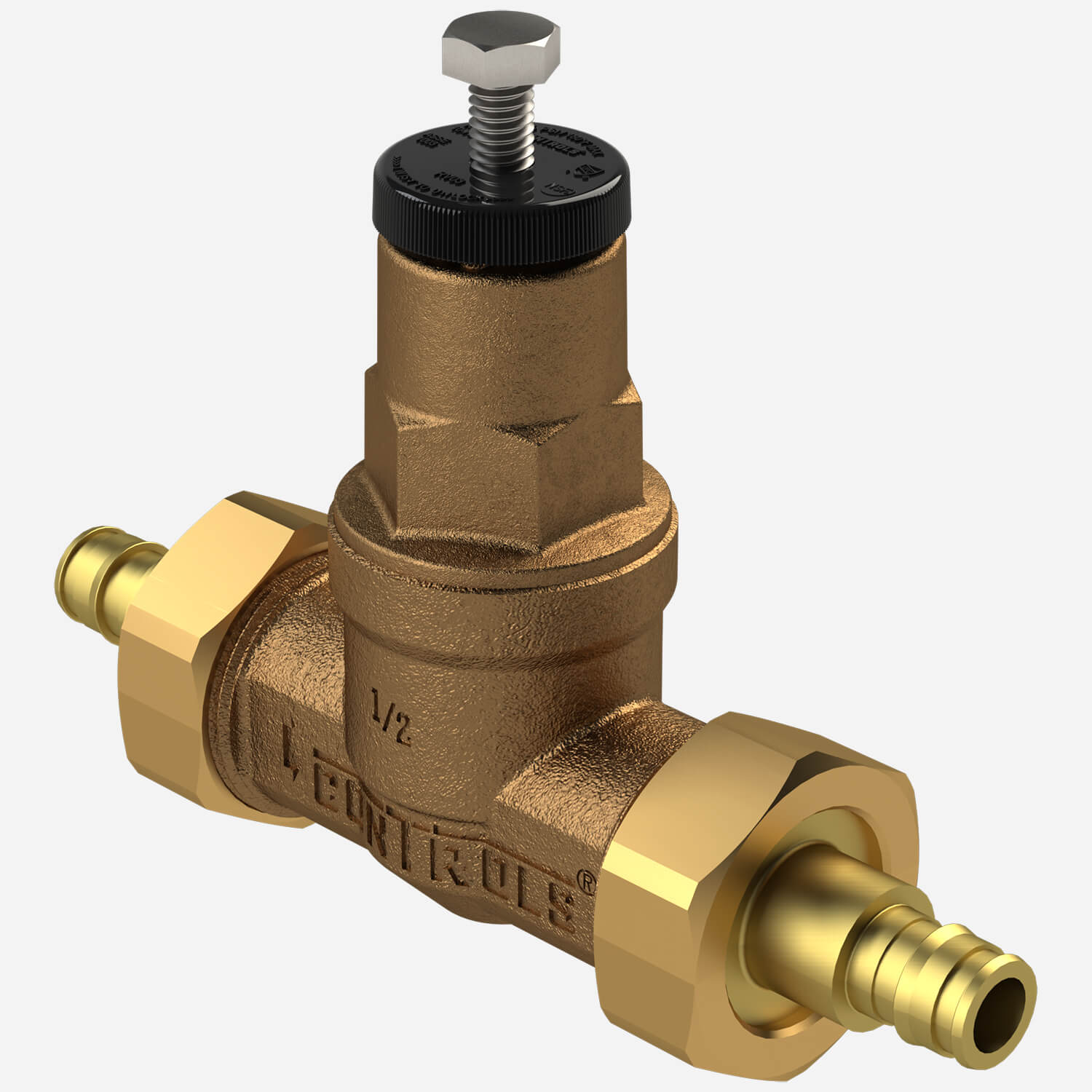

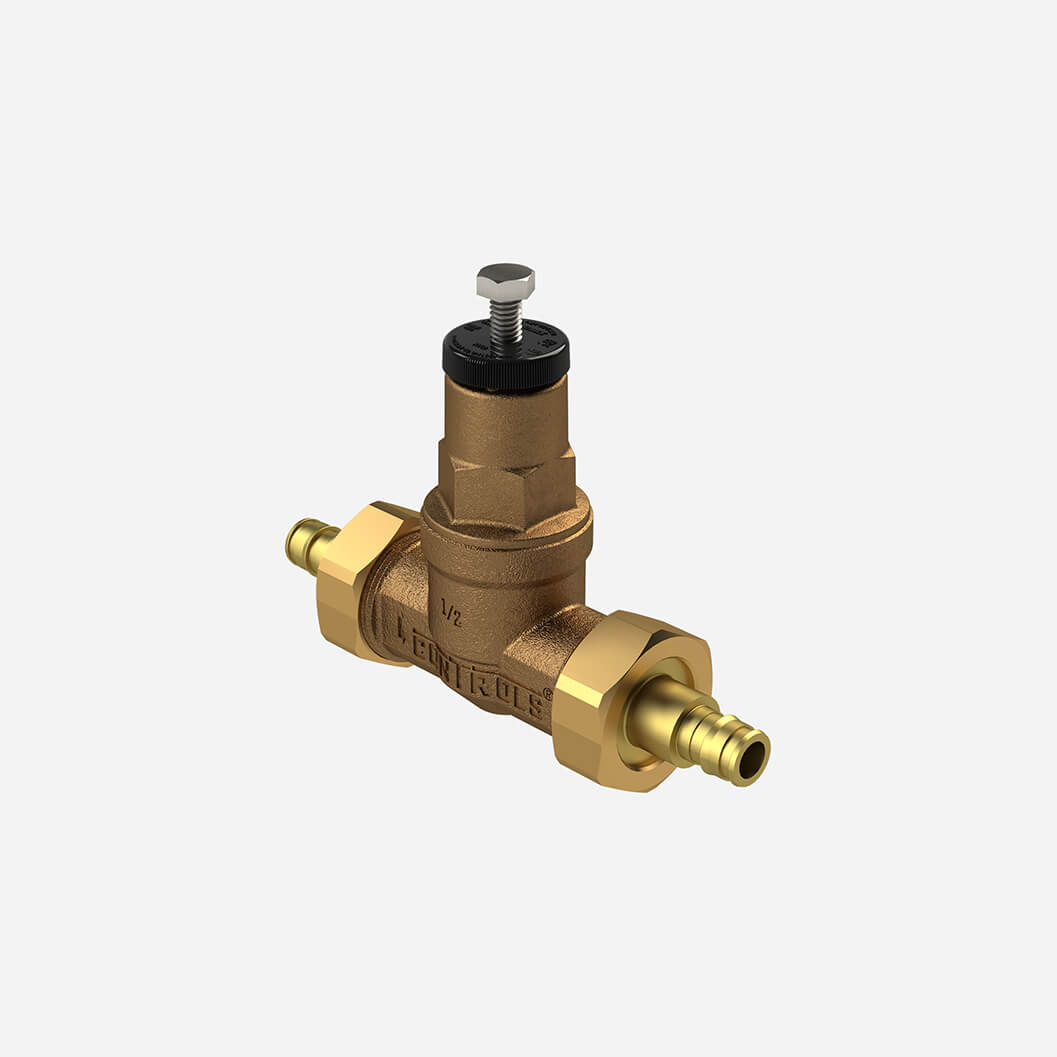

RV03SH-1FF0 Steel Bonnet High Presssure Spring 1/2" Valve Size PEX-A Inlet Adapter PEX-A Outlet Adapter No Gauge Adapter

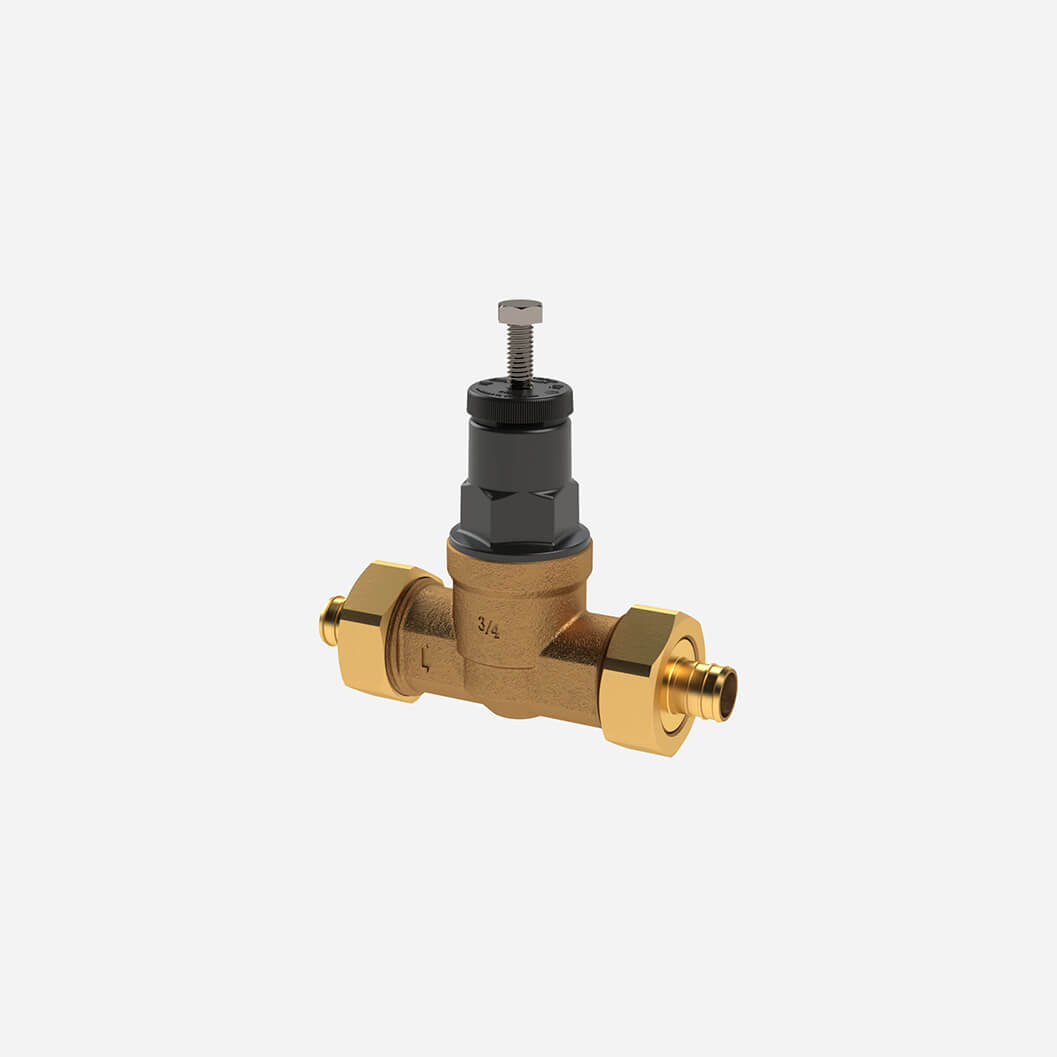

RV03P0-2AA0 Plastic Bonnet Standard Pressure Spring 3/4" Valve Size PEX-B Inlet Adapter PEX-B Outlet Adapter No Gauge Adapter

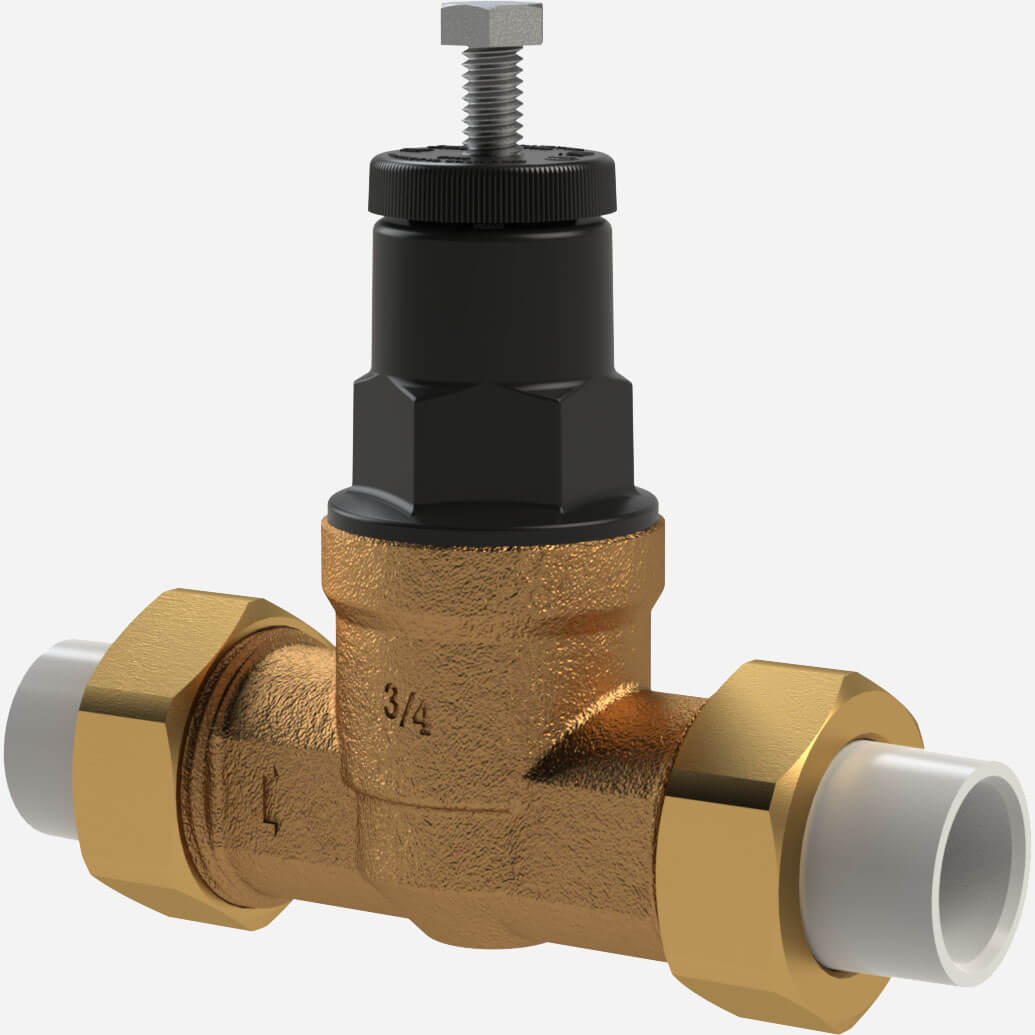

RV03HS-2DD0 Steel Bonnet High Pressure Spring 3/4" Valve Size PVC Inlet Adapter PVC Outlet Adapter No Gauge Adapter

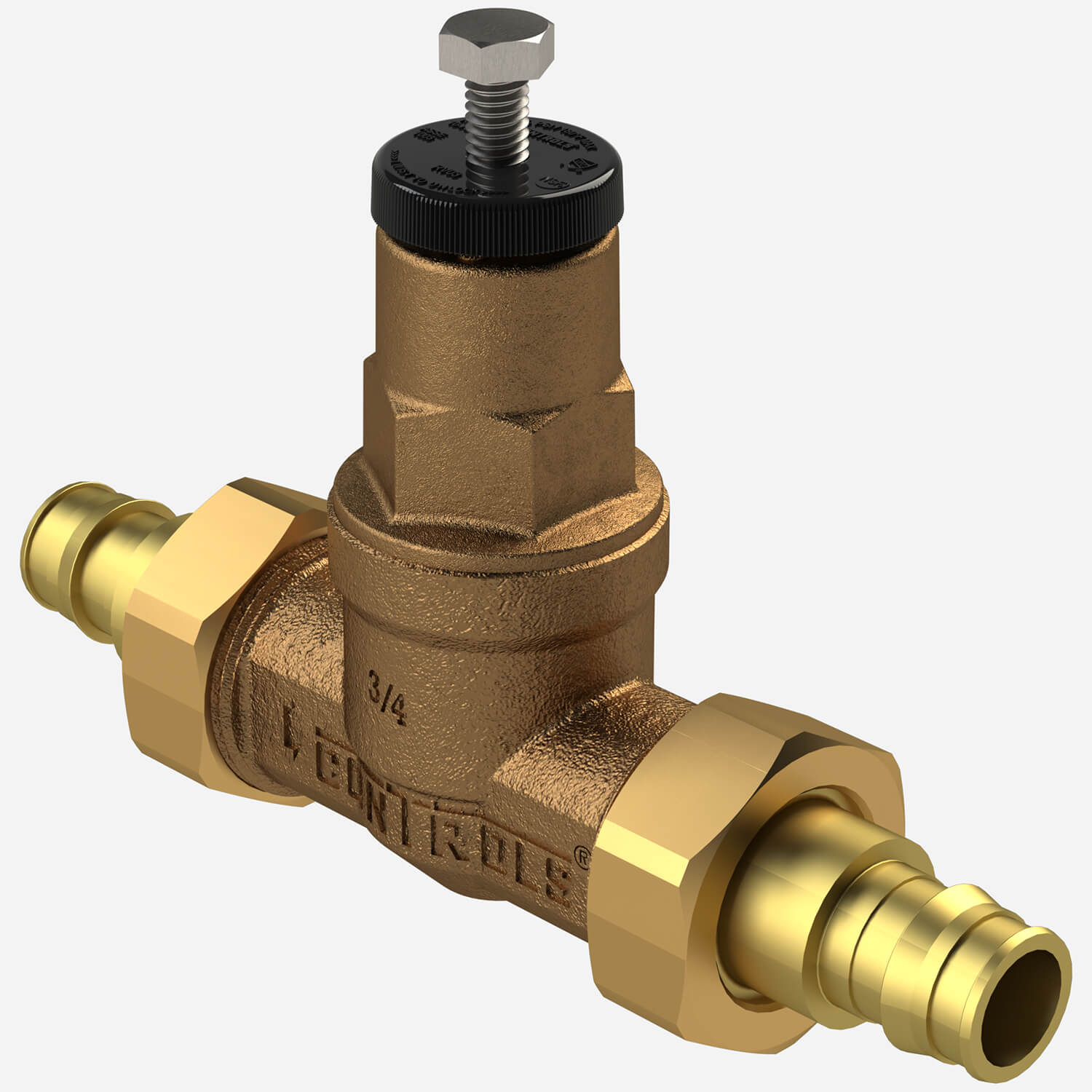

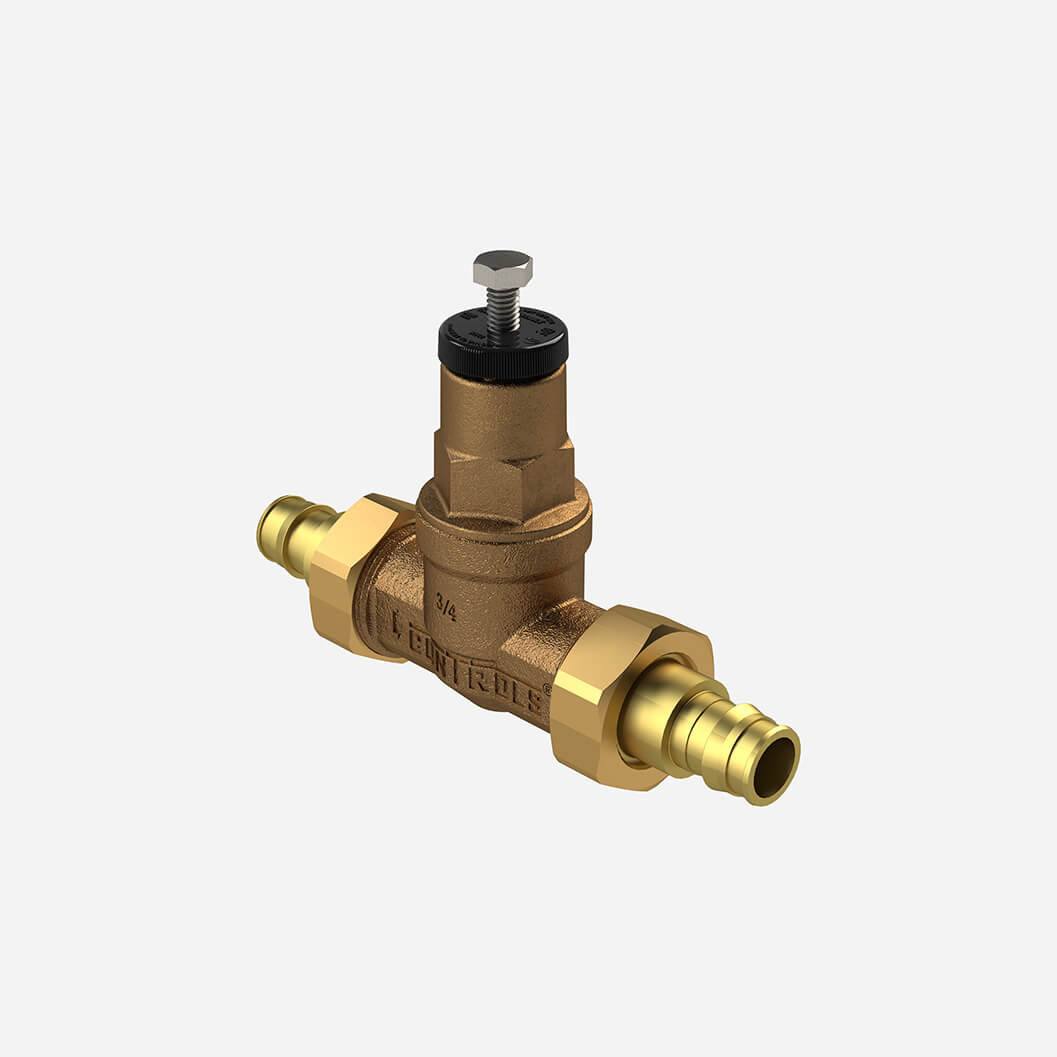

RV03S0-2FF0 Steel Bonnet Standard Presssure Spring 3/4" Valve Size Pex-A Inlet Adapter Pex-A Outlet Adapter No Gauge Adapter

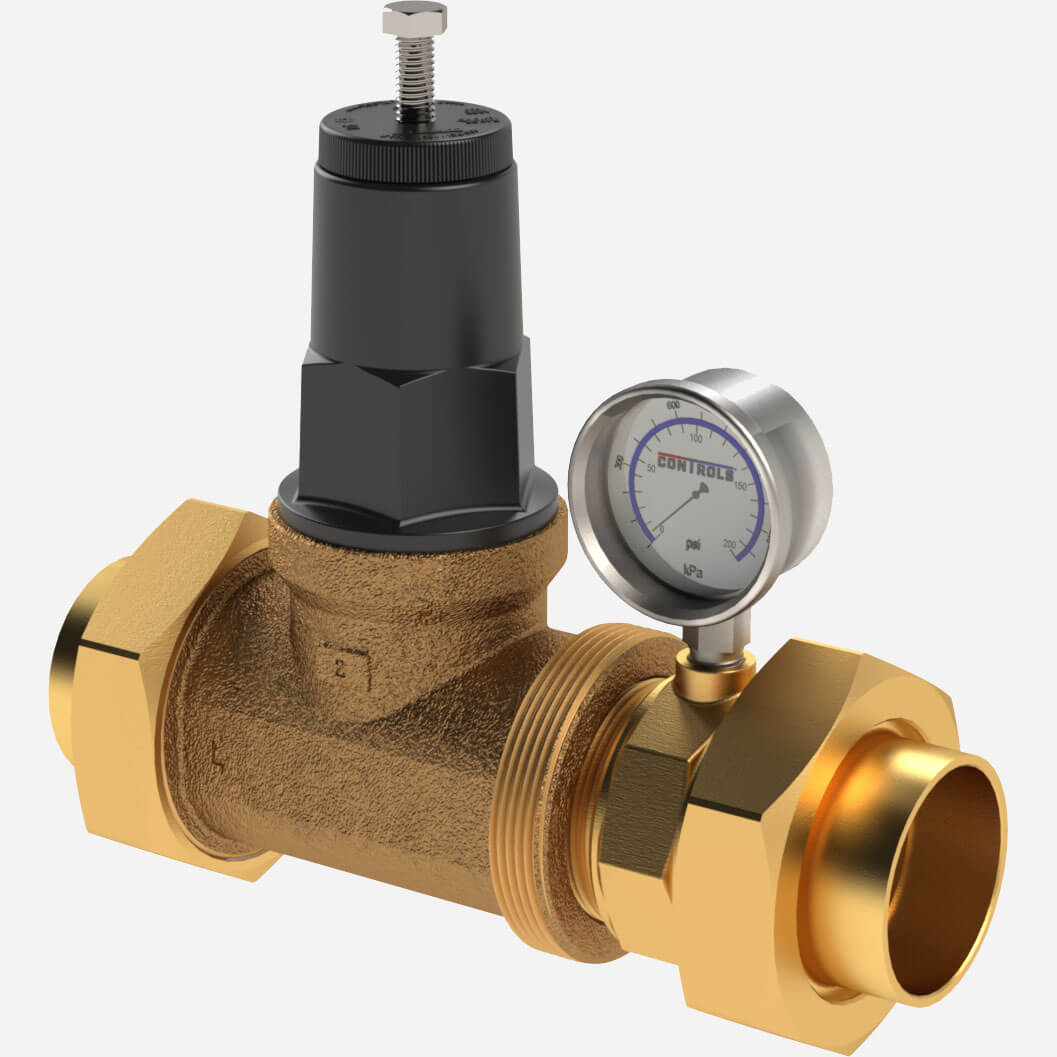

RV03PH-6AAG Plastic Bonnet High Pressure Spring 2" Valve Size Sweat Inlet Adapter Sweat Outlet Adapter Adapter with 0-200 psi Gauge
