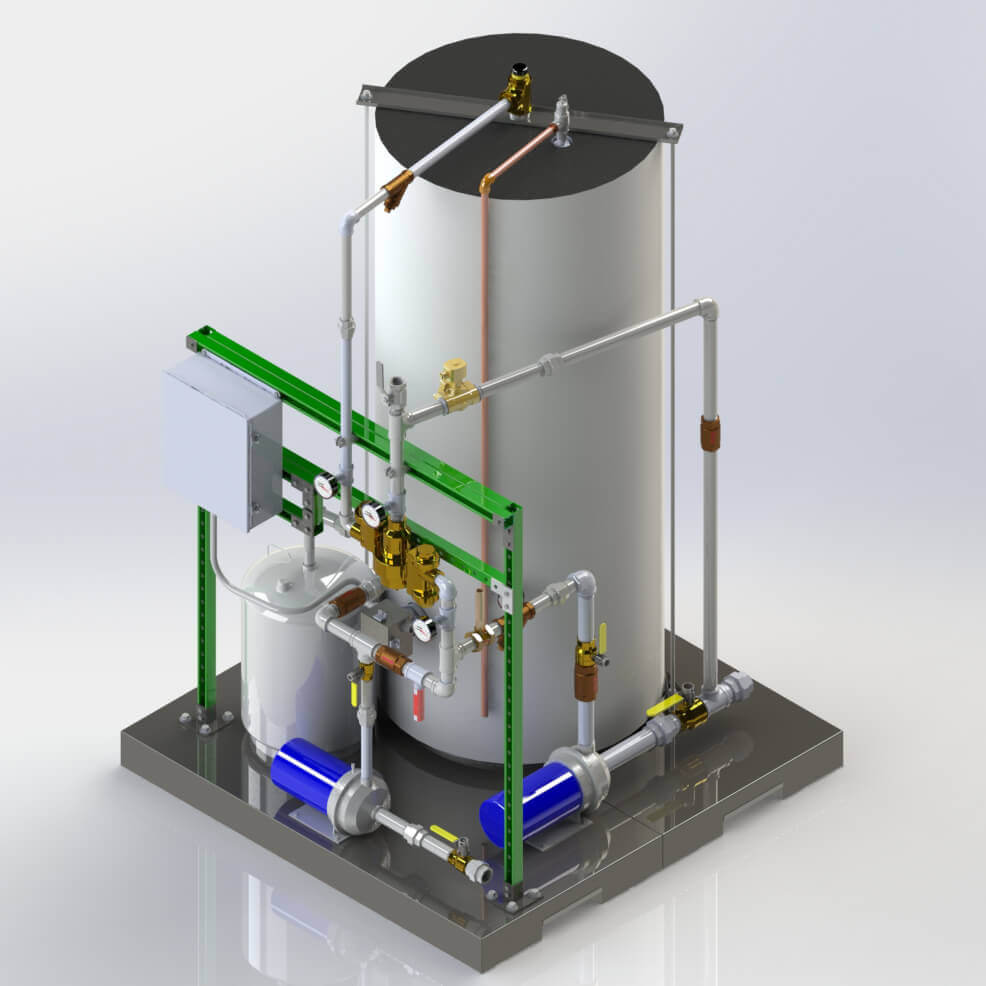

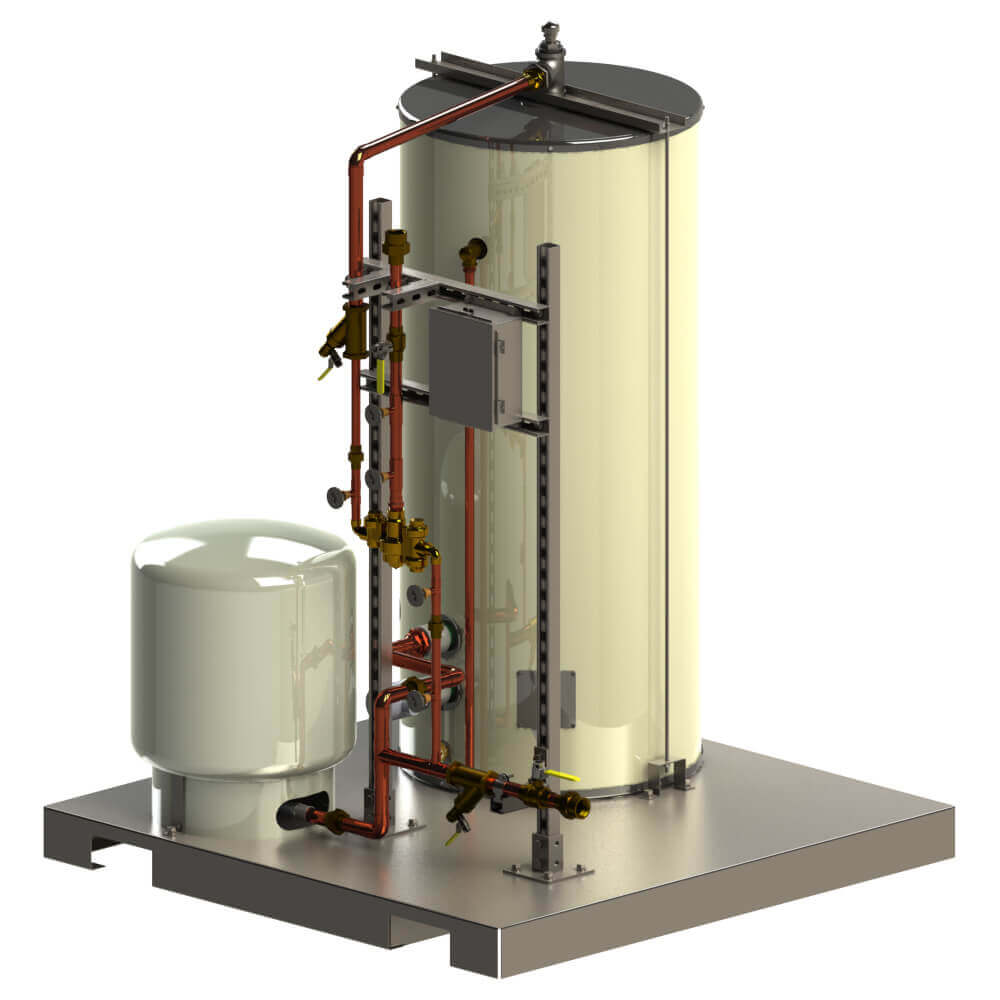

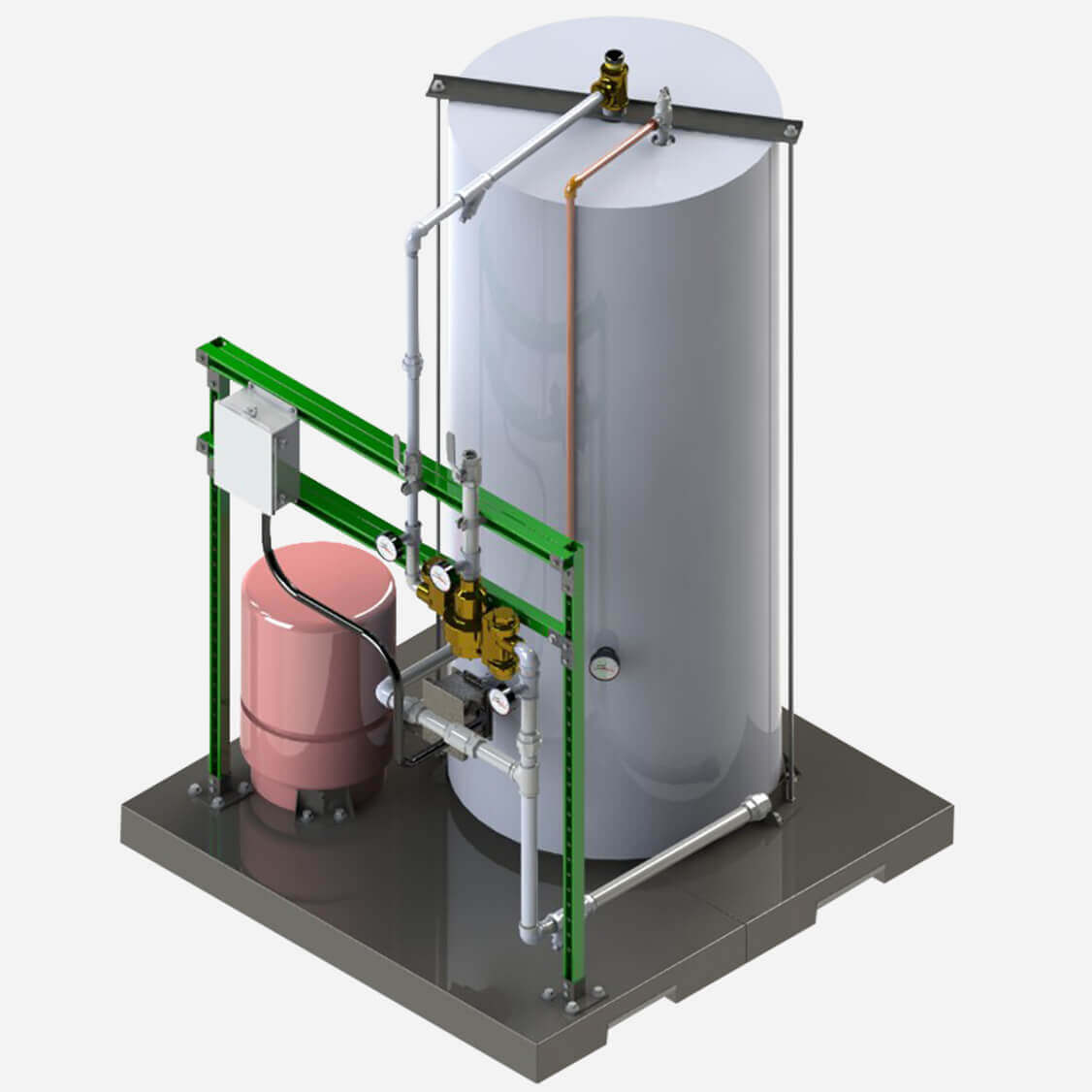

Model STS Series
Emergency Water Tempering Skid System
Acorn ConTrols® water tempering system provides usable tempered water immediately in an emergency, where time delays in receiving proper irrigation of hazardous material exposure can increase the severity of trauma and/or injury. Acorn ConTrols® offers tank and valve size options that are able to supply multiple showers, eye/face washes, and eyewashes simultaneously. All Acorn ConTrols® water tempering systems, when located in reasonable proximity to possible workplace exposure, provide an environment conducive to the quick and proper length of treatment, in accordance with ANSI Z358.1, Appendix B6.
STS Series Features
- 5’ x 5’ All stainless steel constructed skid for corrosive environments.
- 120-gallon NON-ASME tank with ET71-2 tempered water valve standard. 120-gallon and 300-gallon ASME tanks are optionally available.300-gallon tank will include an ET71-3 tempered water valve.
- Utilizes Acorn ConTrols® ET71 Series tempered water valves which are IAPMO certified per ASSE 1071 and CSA B125.3.
- Electrical components in NEMA 4 standard, or optional NEMA 7 classifications.
- Heating element with integral high-temperature shut-off.
- 15’ (4.5 m), 10 gauge, 4 wire power cord with 3”, 4 blade twist-lock connector.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Emergency Water Tempering Skid System | 0 | 669 KB | ||
 | | Emergency Water Tempering Skid System featuring 120 Galllon NON ASME Tank (Standard) with ET71-2 Tempering Valve | 0 | 1 MB | ||
| | Emergency Water Tempering Skid System featuring 120 Galllon NON ASME Tank (Standard) with ET71-2 Tempering Valve | 0 | 3 MB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
 | | Emergency Water Tempering Skid System | 0 | 46 KB |
Specifications
| Product Type | Tempering Skid System |
| Compliance | ASSE 1071, CSA B125.3, UPC |
| Max Operating Pressure | 125 PSI (861 kPa) |
| Max Hot Water Supply Temp. | 180°F (82°C) |
| Outlet Temp. Range | 60°F - 95°F (15°C - 35°C) |
| Brand | Acorn ConTrols® |
| Featured Valve | ET71 Series |
| Valve Size | 3/4" NPT Inlet & 1" NPT Outlet, 1" NPT Inlet & 1-1/4" NPT Outlet, 1-1/4" NPT Inlet & 1-1/2" NPT Outlet |
| Flow Rate | 43 GPM @ 45 PSI, 86 GPM @ 45 PSI, 150 GPM @ 45 PSI |
Models
| Model | Gallons | Description |
|---|---|---|
| STS-1 | 120 | NON-ASME Tank (Standard) with ET71-2 Tempering Valve |
| STS-1A | 120 | ASME Tank with ET71-2 Tempering Valve |
| STS-3 | 300 | ASME Tank with ET71-3 Tempering Valve |
