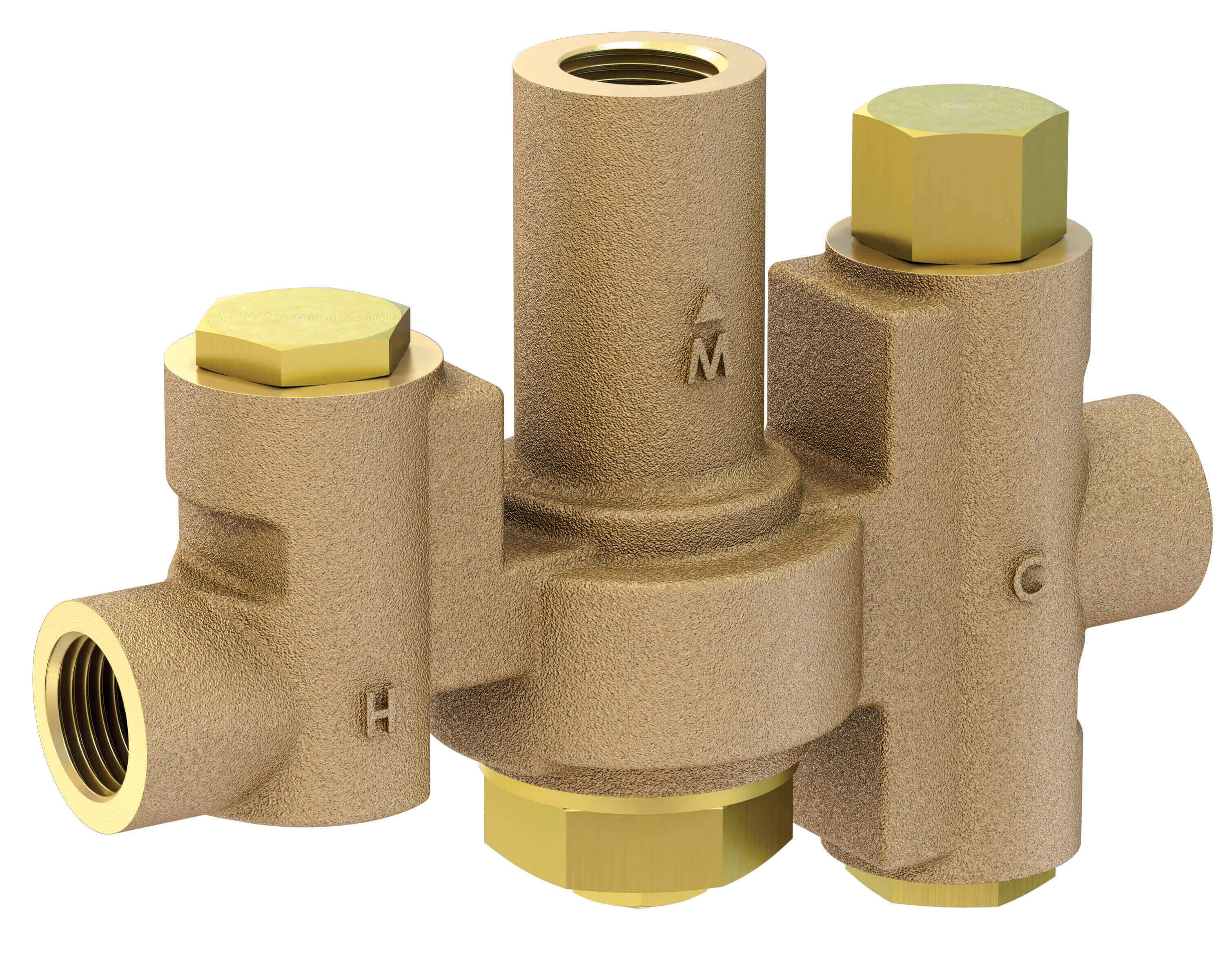

Model ET71 Series
Emergency Tempered Water Valve

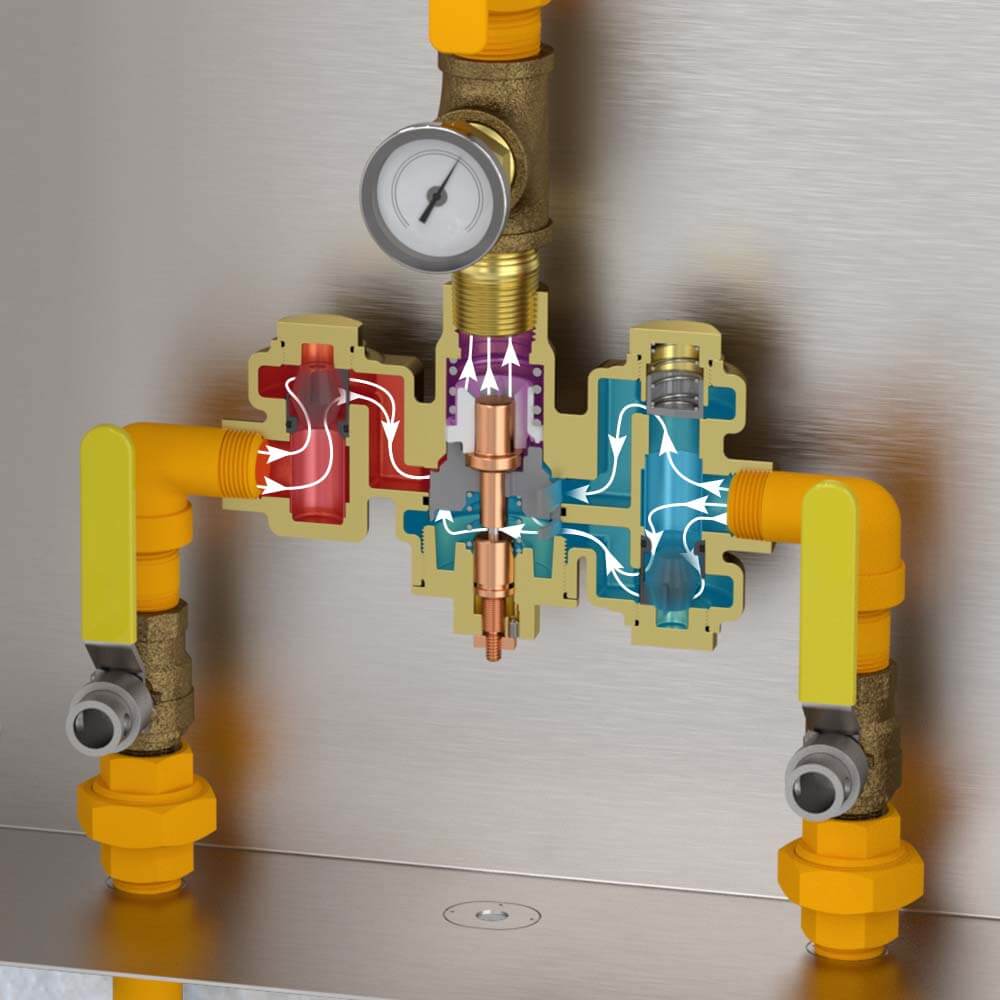

The ET71 Series thermostatic mixing valve blends hot and cold water to provide safe, tempered water for emergency eye wash equipment and safety showers. The tempered water valve is available in four sizes with flow rates from 12–150 GPM at 45 PSID, suitable for commercial, institutional, and industrial applications. Our patented cold water bypass ensures delivery to the safety device in the event of hot water failure.
CSA certified per ASSE 1071, ANSI Z358.1, and applicable sections of CSA B125.3.
Features & Benefits
- Provides safe, tempered water for eye wash equipment, emergency showers, and combination units

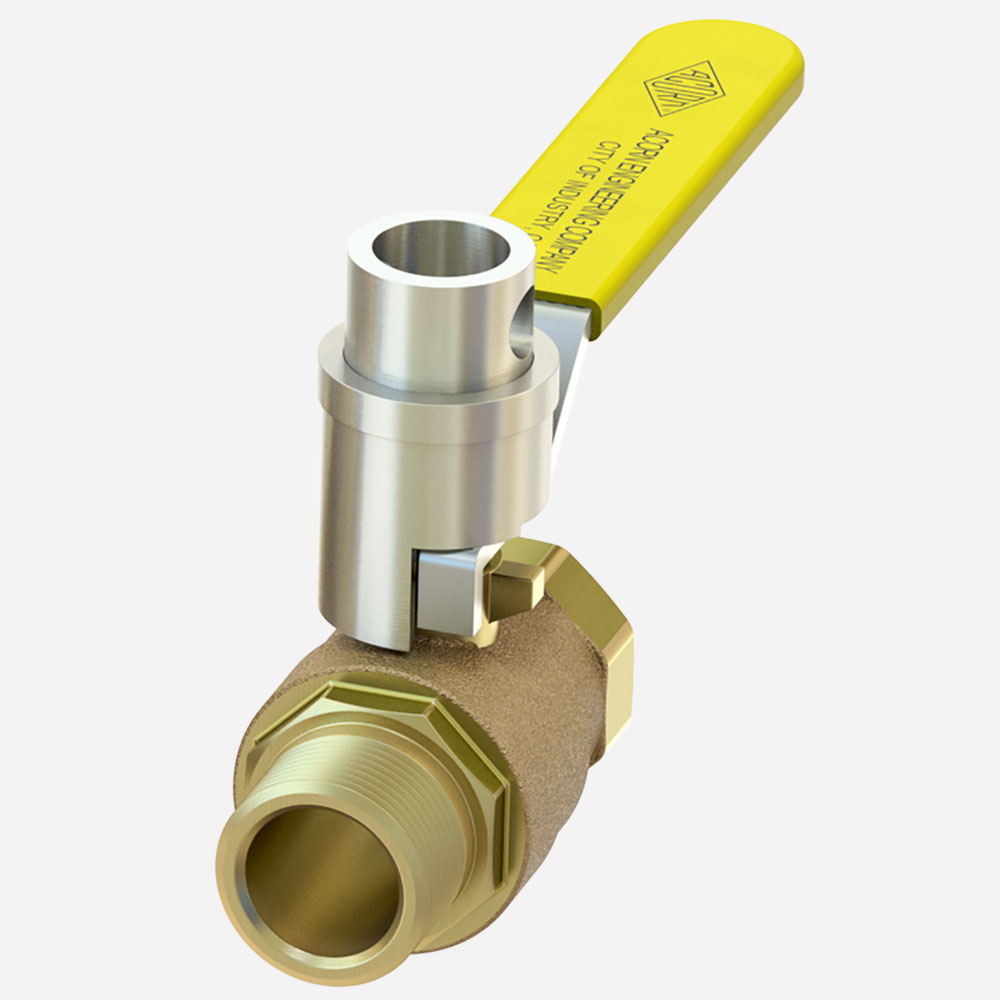

- Optional locking ball valves meet ANSI Z358.1 and ASSE 1071 requirements, eliminating the need for a lockable cabinet to prevent unauthorized shut-off

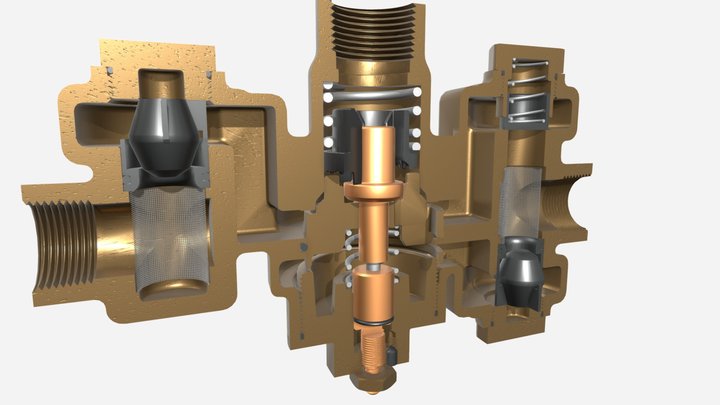

- Brass and paraffin wax design for more reliable, consistent performance compared to competitors’ bi-metal valves
- Available for use in the Acorn BASyC ® Digital Valve System, which provides round-the-clock monitoring and adjustment capability of ET71 emergency tempering valves, as well as a variety of temperature, pressure, and flow sensors.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Installation, operation, and maintenance manual (including parts assembly drawings) for ET71 Series emergency tempering valve | 0 | 688 KB | ||
| | Emergency Tempering Valve [ET71-1 | 12 GPM, 1/2" NPT Inlet & Outlet; ET71-2 | 43 GPM, 3/4" Inlet, 1" Outlet; ET71-3 | 86 GPM, 1" Inlet, 1-1/4" Outlet; ET71-4 | 150 GPM, 1-1/4" Inlet, 1-1/2" Outlet] | 0 | 480 KB | ||
 | | Emergency Tempering Valve / Eye Wash Mixing Valve / Emergency Shower Mixing Valve [ET71-1, ET71-1-BVS-OTG, ET71-2, ET71-2-BVS-OTG, ET71-3, ET71-4] | 0 | 3 MB | ||
| | Emergency Tempering Valve / Eye Wash Mixing Valve / Emergency Shower Mixing Valve [ET71-1, ET71-1-BVS-OTG, ET71-2, ET71-3, ET71-4] | 0 | 2 MB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
| | Save time and money with Acorn ConTrols® Kwik Ship products, with many items shipped fully or partially assembled and stock replenished weekly. | 0 | 737 KB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Model ET71 thermostatic mixing valve is ASSE 1071-certified to supply safe, tempered water for emergency eye wash equipment and safety showers. Four sizes are available, with flow rates from 12–150 GPM at 45 PSID. | 0 | 595 KB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 0 | 4 MB | ||
| | Kwik Ship® Brands PRV Spec Sheet (pdf) | 0 | 707 KB | ||

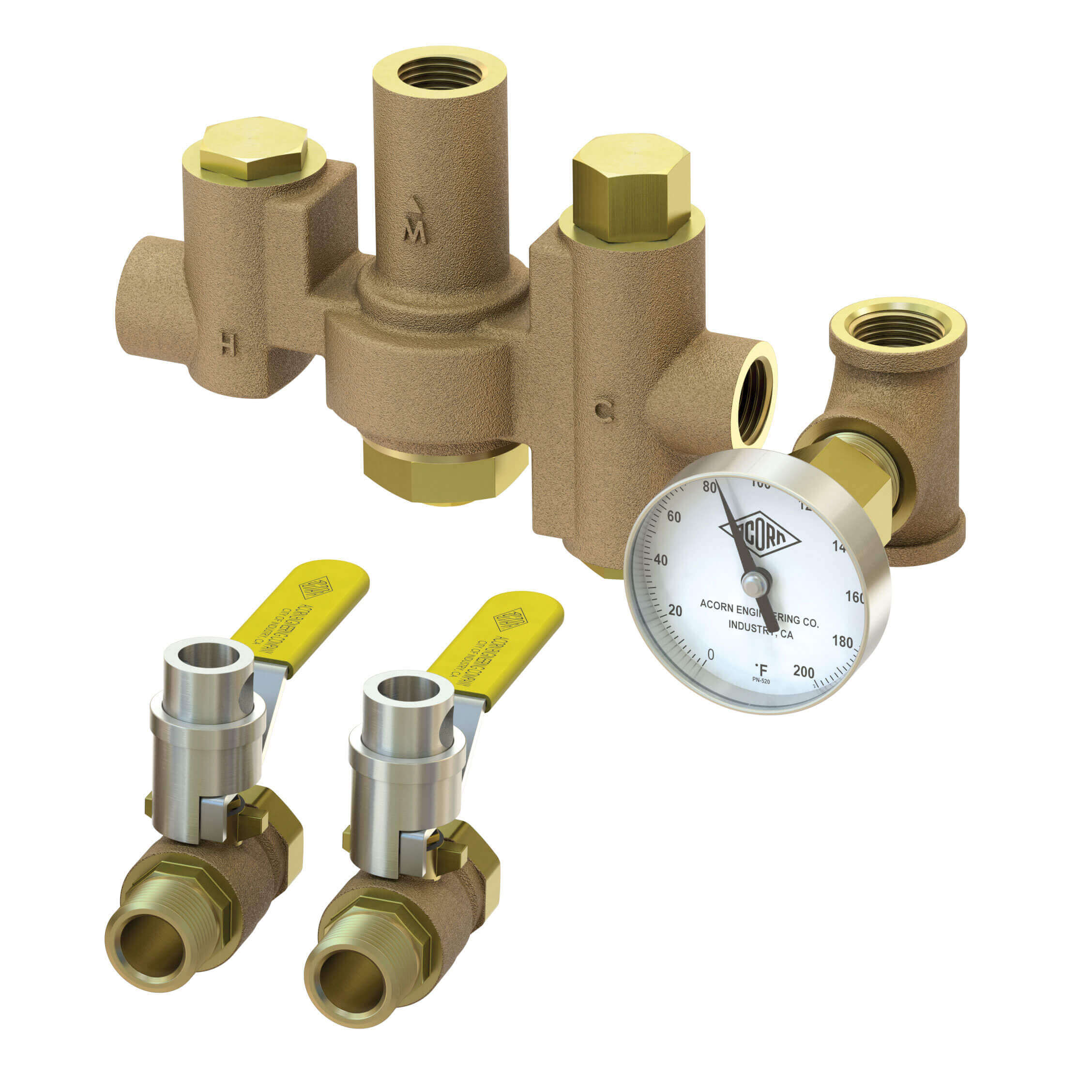

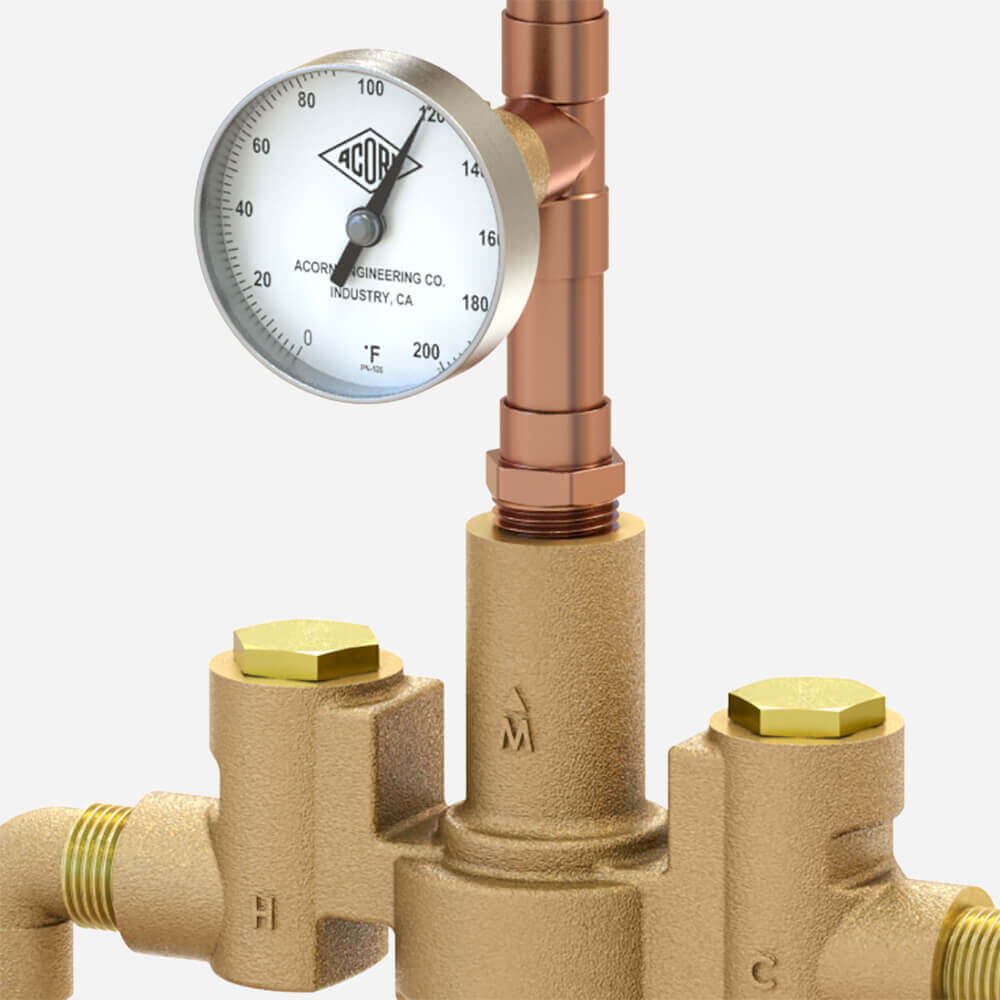

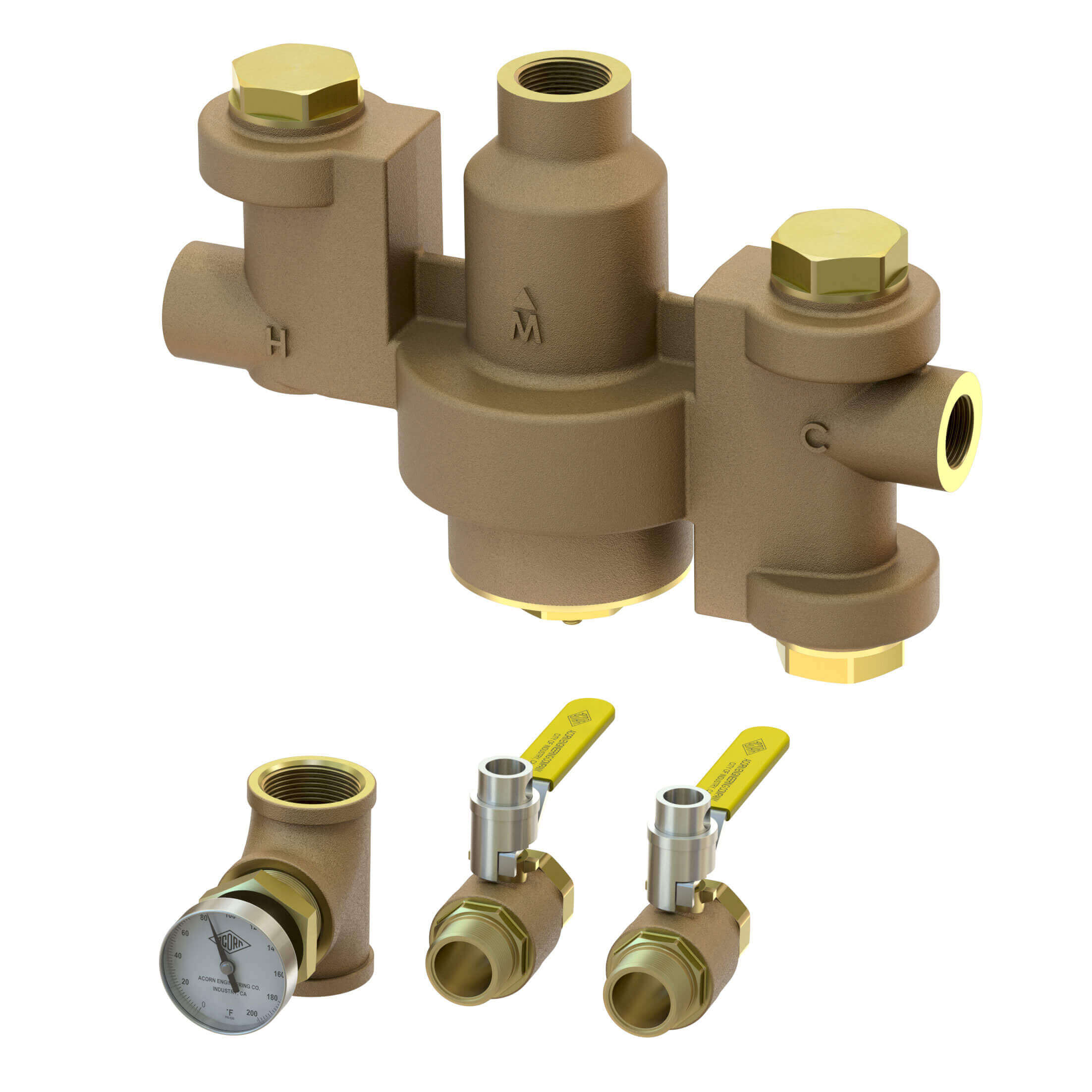

 | | Emergency tempering valve shown with optional locking ball valve shut-offs, outlet temperature gauge, and 1/2" NPT inlet & outlet connections; rated 9.8 GPM (37.1 LPM) at 30 PSID | 0 | 252 KB | ||

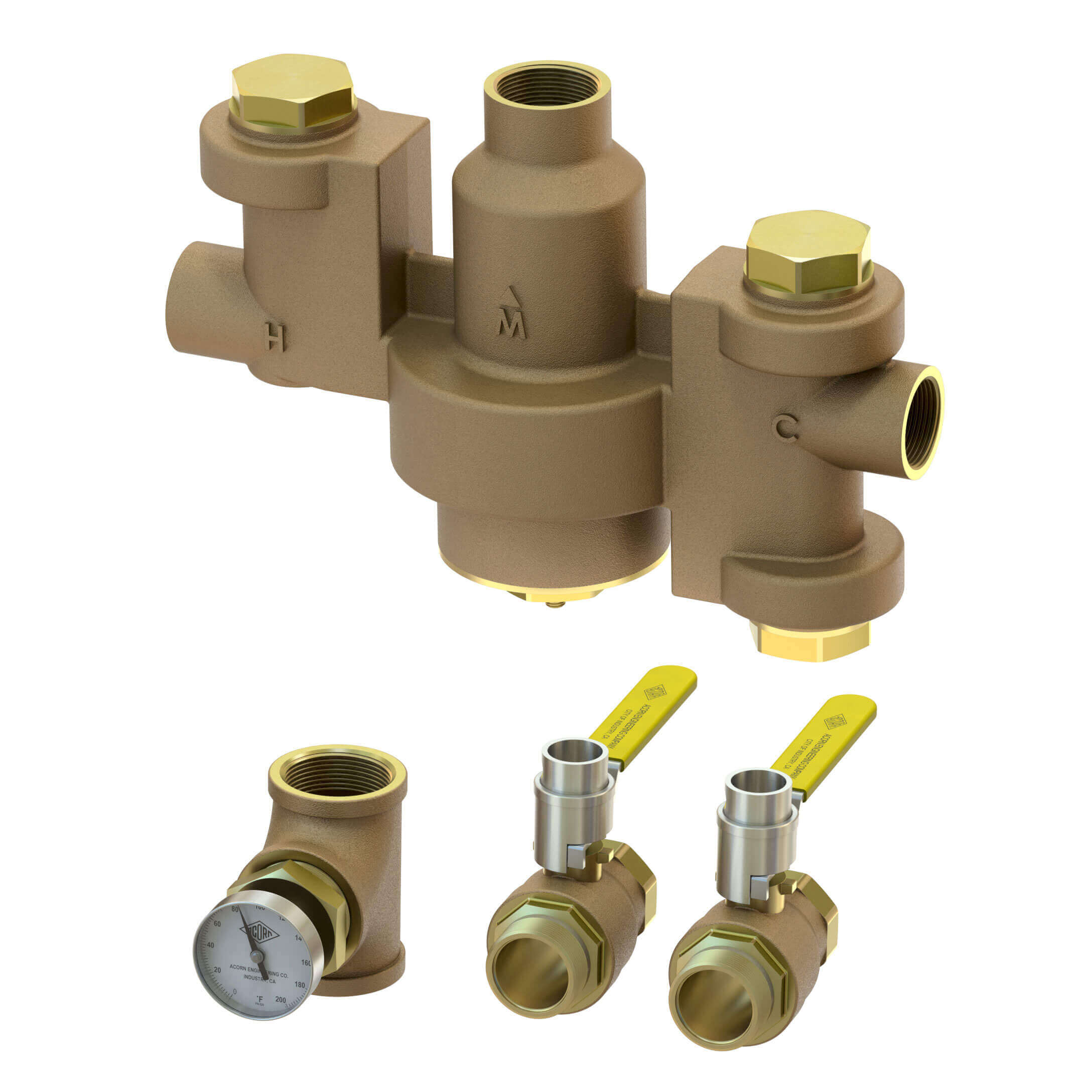

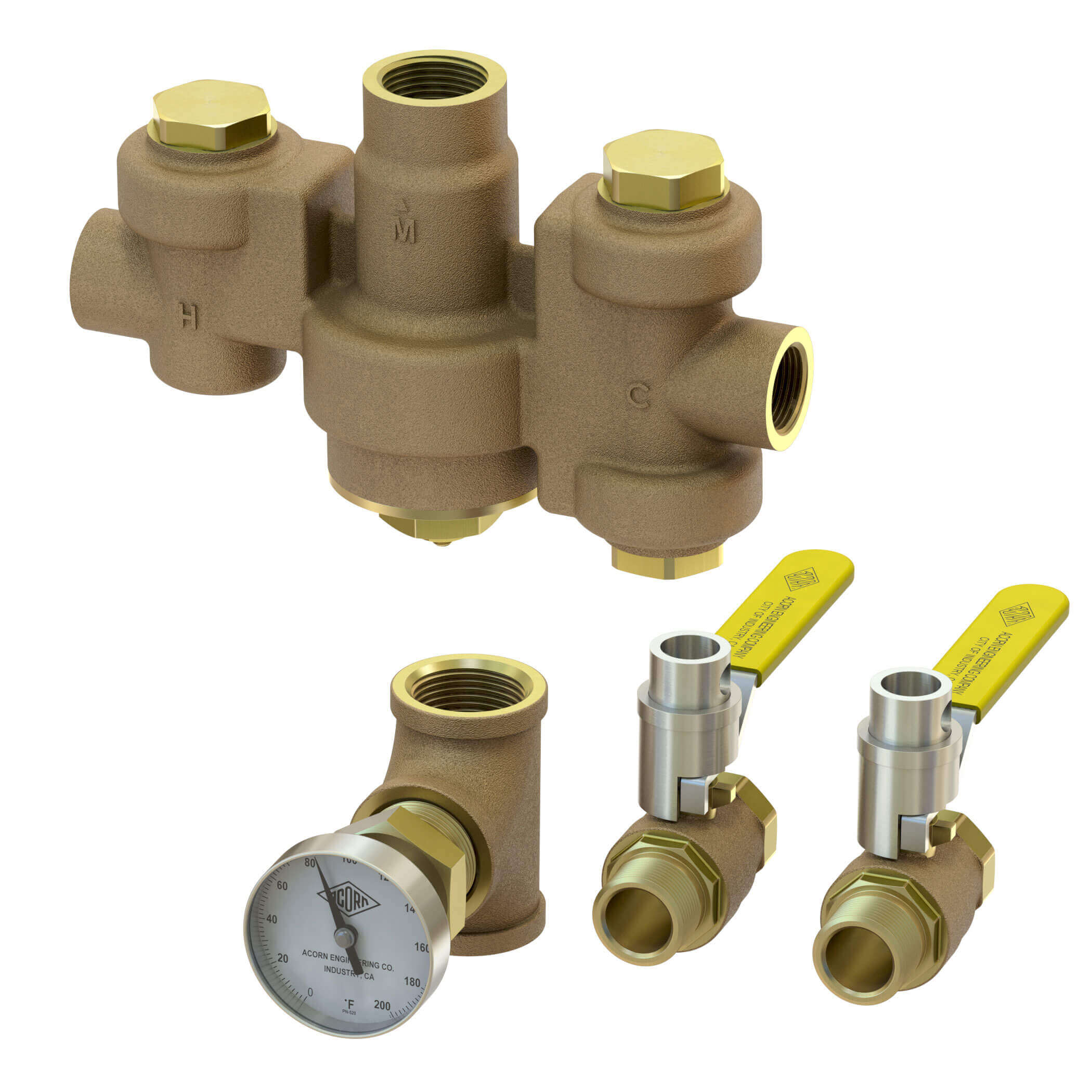

| | Emergency tempering valve shown with optional locking ball valve shut-offs, outlet temperature gauge, and 3/4" NPT inlet & 1" NPT outlet connections; rated 35.1 GPM (132.9 LPM) at 30 PSID | 0 | 215 KB | ||
| | Emergency tempering valve shown with optional locking ball valve shut-offs, outlet temperature gauge, and 1" NPT inlet & 1-1/4" NPT outlet connections; rated 70.2 GPM (265.7 LPM) at 30 PSID | 0 | 183 KB | ||
| | Emergency tempering valve shown with optional locking ball valve shut-offs, outlet temperature gauge, and 1-1/4" NPT inlet & 1-1/2" NPT outlet connections; rated 122 GPM (461.8 LPM) at 30 PSID | 0 | 170 KB | ||
| | Standard ET71-1 emergency tempering valve, 1/2" NPT inlet & outlet connections | 0 | 788 KB |
Specifications
| Material | Brass |
| Compliance | UPC, ASSE 1071, No Lead - Federal Public Law 111-380, CSA B125.3, ANSI Z358.1 |
| Product Type | Mixing Valve |
| Flow Rate | 12 GPM @ 45 PSI, 43 GPM @ 45 PSI, 86 GPM @ 45 PSI, 150 GPM @ 45 PSI |
| Valve Size | 1/2" NPT Inlet & Outlet, 3/4" NPT Inlet & 1" NPT Outlet, 1" NPT Inlet & 1-1/4" NPT Outlet, 1-1/4" NPT Inlet & 1-1/2" NPT Outlet |
| Max Hot Water Supply Temp. | 180°F (82°C) |
| Outlet Temp. Range | 60°F - 95°F (15°C - 35°C), 60°F - 90°F (15°C - 32°C) |
| Max Operating Pressure | 125 PSI (861 kPa) |
| Featured Valve | ET71 Series |
| Patent | 9,879,658, 9,898,017 |
Options

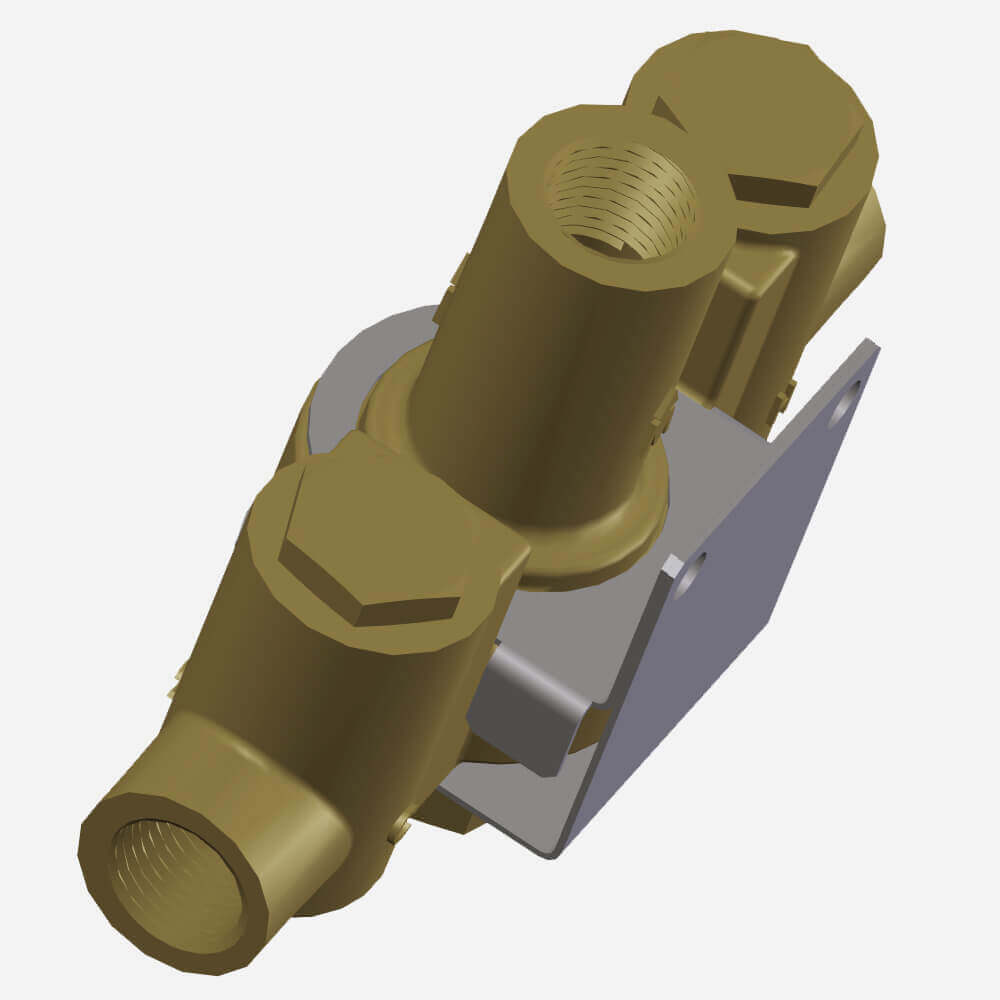

Accessories
Miscellaneous
Models
 |  |  |  | |
|---|---|---|---|---|

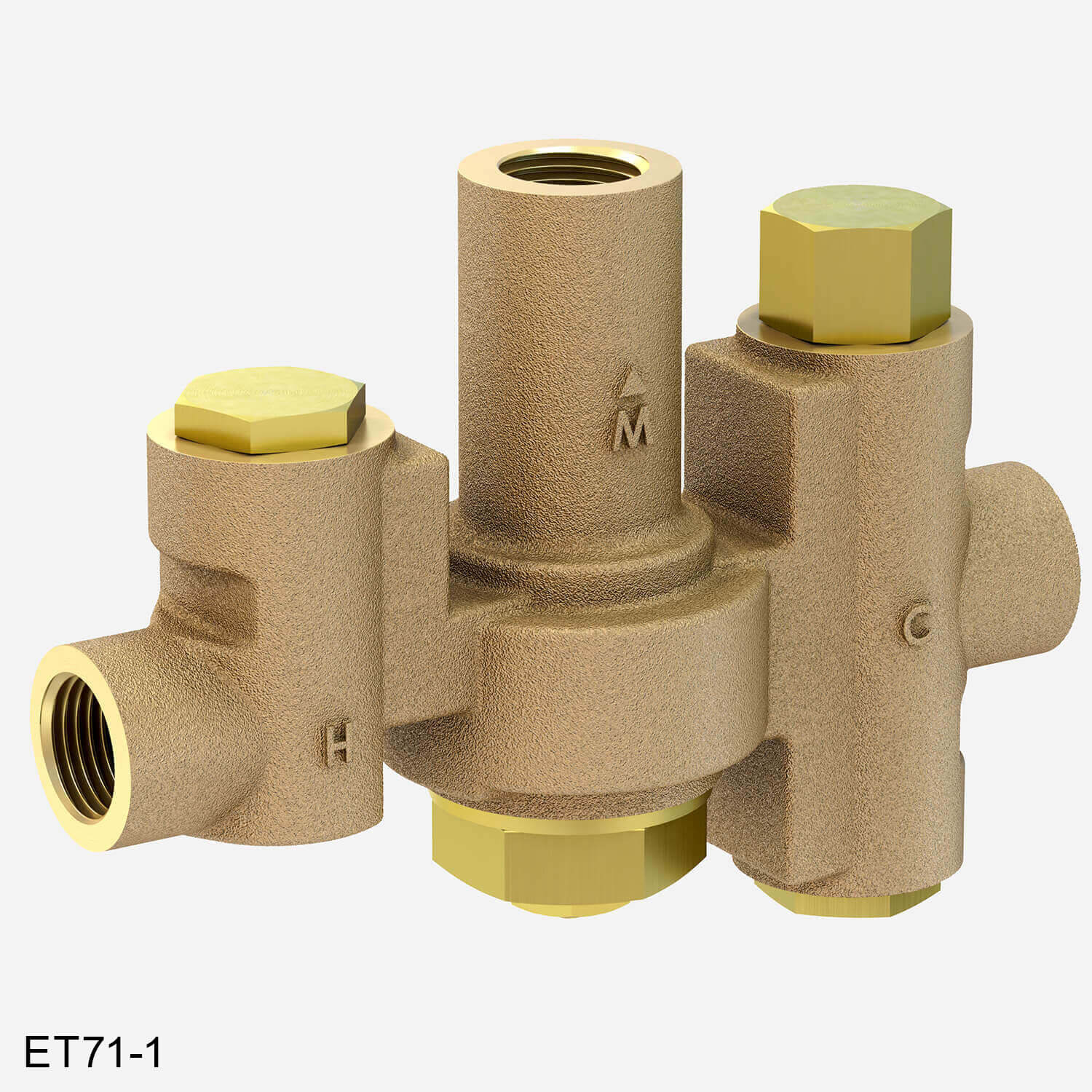

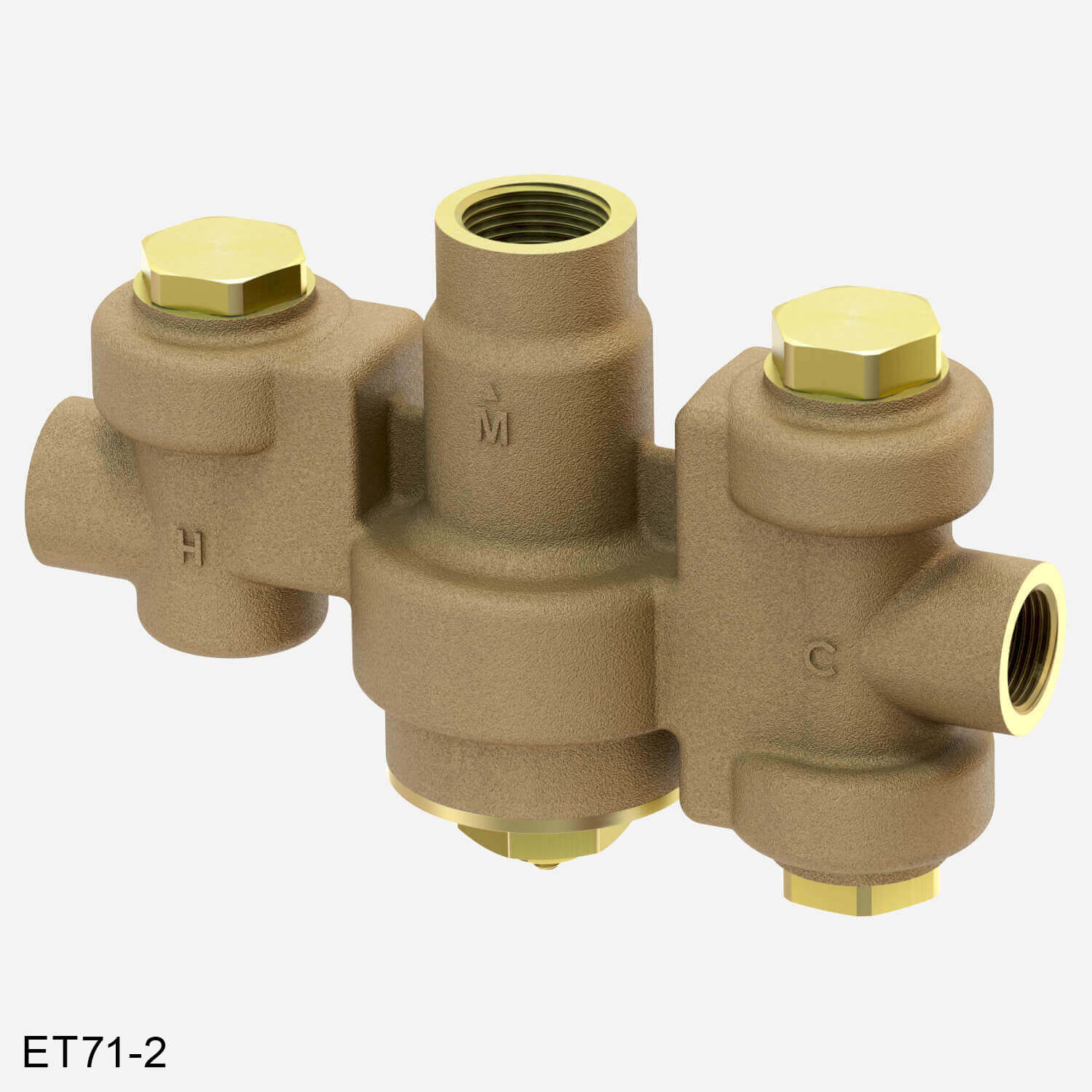

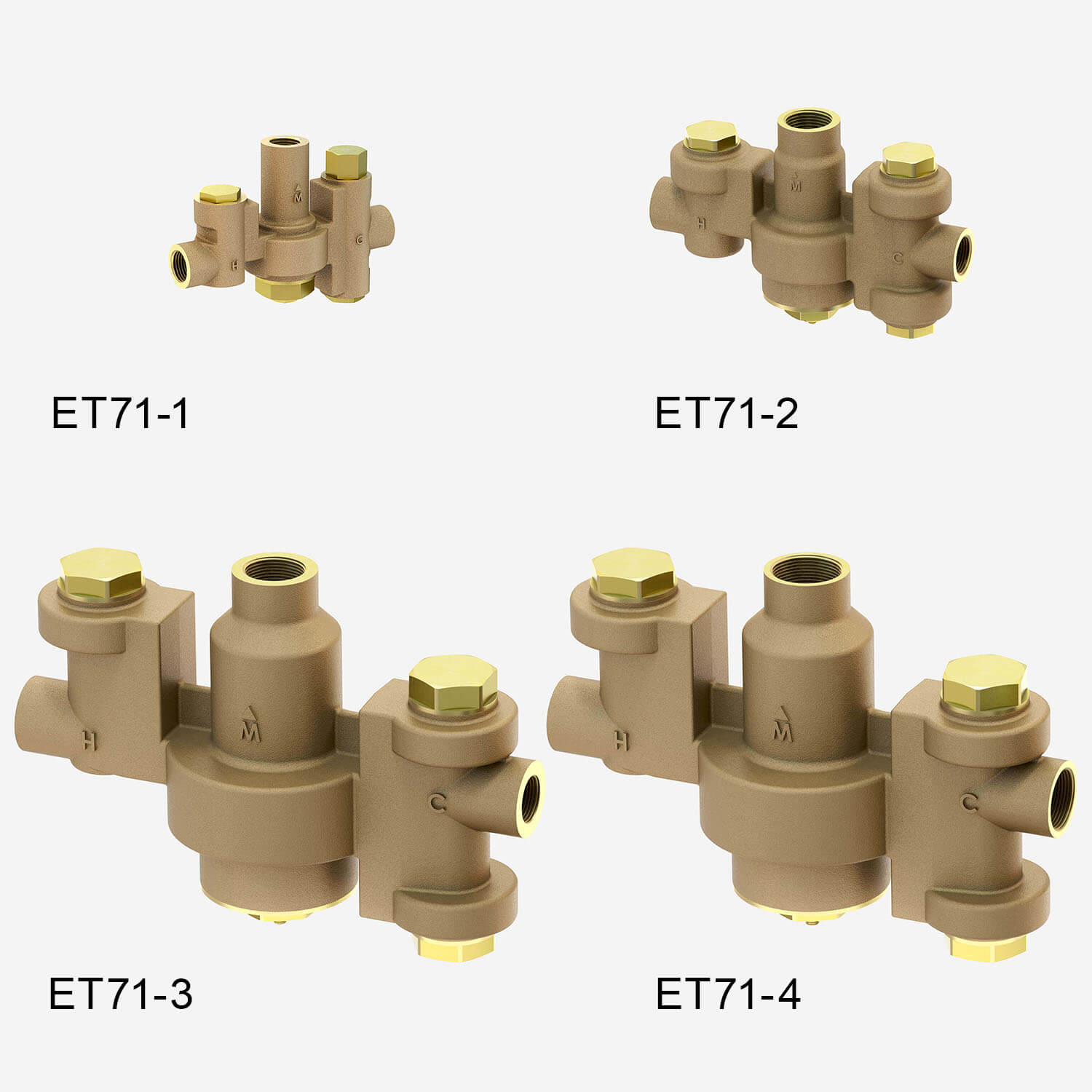

| Model | ET71-1 | ET71-2 | ET71-3 | ET71-4 |
| Inlet | 1/2" NPT | 3/4" NPT | 1" NPT | 1-1/4" NPT |
| Outlet | 1/2" NPT | 1" NPT | 1-1/4" NPT | 1-1/2" NPT |
| GPM | 12 GPM (45 LPM) | 43 GPM (163 LPM) | 86 GPM (325.5 LPM) | 150 GPM (568 LPM) |
| Length | 5-3/4" (146 mm) | 8-1/2" (216 mm) | 14" (356 mm) | 14" (356 mm) |
| Stock |  | | |
