Model SFET Series
Mixing Valve Supply Fixture for Emergency Drench Equipment
The model SFET Series Emergency Tempering Valve Supply Fixtures are Lead-Free and designed to deliver safe tepid water to safety systems such as eye, face, and shower fixtures and combination units. It's factory set to 85°F (29.44°C) to ensure comfort when used with an eye wash, yet can be safely set up to 95°F (35°C) for maximum comfort and effectiveness when used with body washes.
Key Benefits
- A customized valve system for whole-building or recirculating loop regulation
- 100% factory assembled and tested
- Based on ET71 Series Tempered Water Mixing Valves
- Used for safety systems such as eye/face washes and drench showers
- 4 models/sizes based on minimum flow performance requirements and maximum flow demands
- Available with Acorn BASyC ® Digital Mixing Valve & Monitoring System upgrade or option to add later
The SFET Supply Fixture is offered in 4 models/sizes so you can meet the needs of your application based on minimum flow performance requirements and maximum flow demands. This supply fixture can be used to control the temperature of recirculating as well as non-recirculating supply systems.
Features

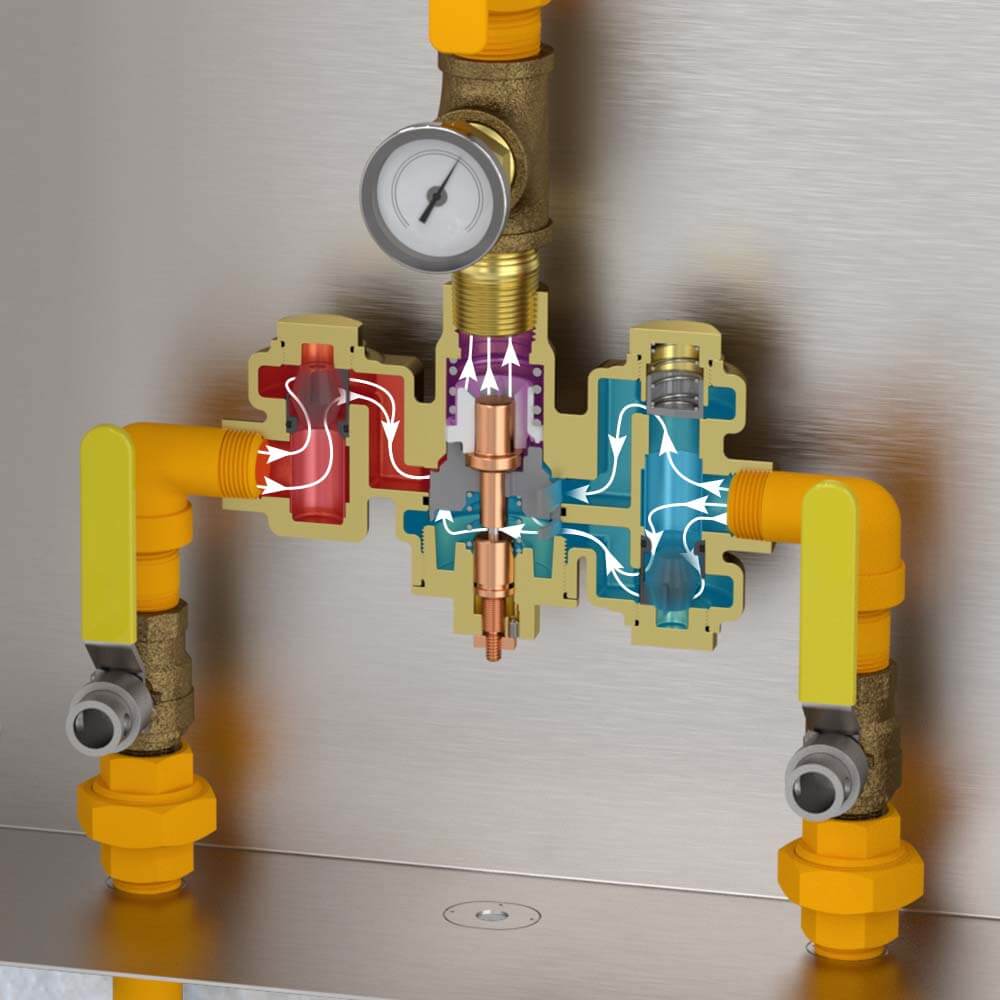

- Lead-Free sweated assembly featuring a brass mixing valve (specifically Acorn ConTrols® ET71 Series) containing corrosion-resistant internal components.
- Integral checks with screens to prevent backflow and filter debris from entering the valve.
- On-demand internal cold water bypass ensures the flow of cold water in the event of loss of hot water.
- The valve effectively shuts down the flow when the cold water supply is lost compliant with ASSE 1071.
- Temperature adjustment is made using an Allen wrench. A locknut on the bonnet prevents unauthorized or accidental temperature adjustment.
- Commercial quality paraffin actuator provides repeatable, reliable performance.

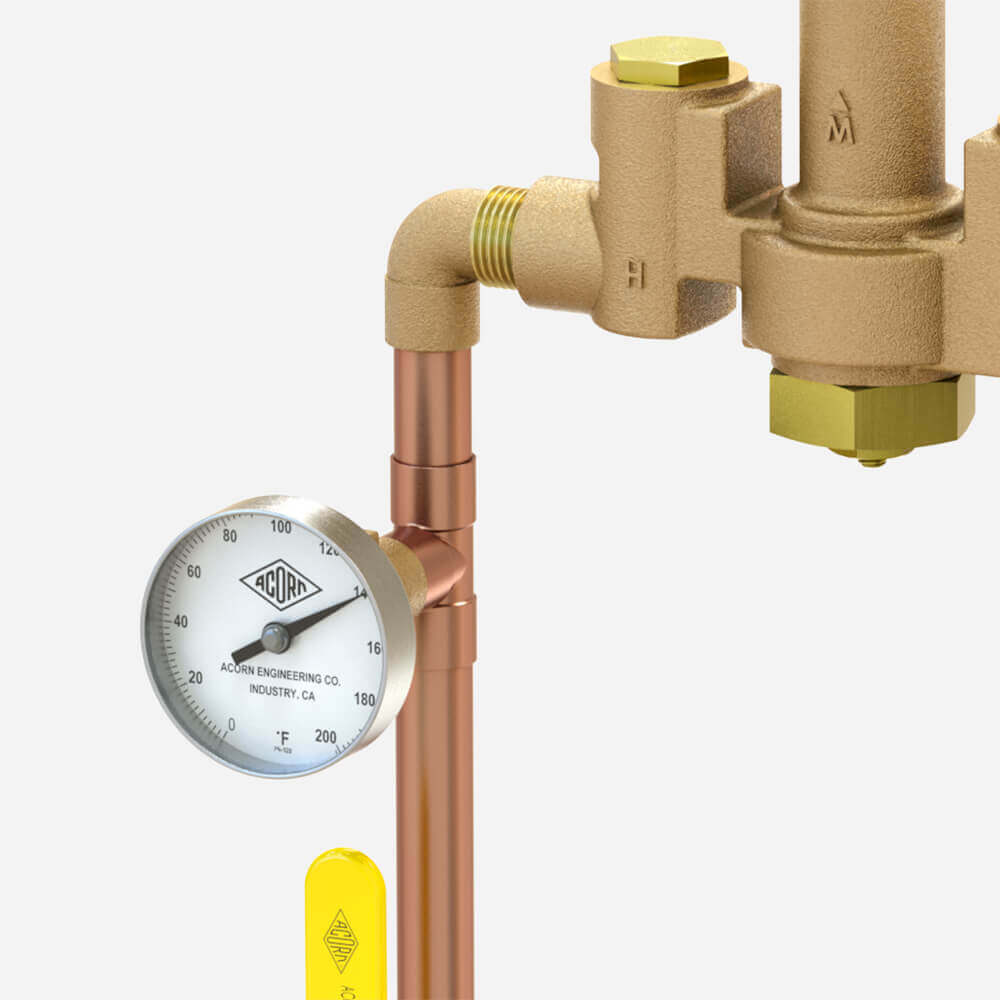

- The temperature gauge on the outlet is standard, and optionally available for supply inlets.
- Includes lockable brass ball valves on inlet and outlet connections.
- Factory assembled and pneumatically tested to 80 psi (556 kpa).
This supply fixture is upgradeable with
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Installation, Operation and Maintenance Manual (also includes parts assembly drawings) Mixing Valve Supply Fixture for Emergency Drench Equipment (using ET71 Series Valves) | 0 | 897 KB | ||
| | Supply Fixture Utilizing Controls ET71 Mixing Valve for Emergency Drench Equipment | 0 | 890 KB | ||
 | | Supply Fixture with ET71-2 Thermostatic Mixing Valve for Emergency Drench Equipment; Bottom Supply Inlet (-B) and Outlet Top (-OT) | 0 | 336 KB | ||
| | Supply Fixture with ET71-2 Thermostatic Mixing Valve for Emergency Drench Equipment; Bottom Supply Inlet (-B) and Outlet Top (-OT | 0 | 406 KB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Model ET71 thermostatic mixing valve is ASSE 1071-certified to supply safe, tempered water for emergency eye wash equipment and safety showers. Four sizes are available, with flow rates from 12–150 GPM at 45 PSID. | 0 | 595 KB |
Specifications
| Product Type | Supply Fixture |
| Brand | Acorn ConTrols® |
| Material | Brass |
| Featured Valve | ET71 Series |
| Compliance | ASSE 1071, No Lead - Federal Public Law 111-380, CSA B125.3, UPC |
| Valve Size | 1/2" NPT Inlet & Outlet, 3/4" NPT Inlet & 1" NPT Outlet, 1" NPT Inlet & 1-1/4" NPT Outlet, 1-1/4" NPT Inlet & 1-1/2" NPT Outlet |
| Flow Rate | 12 GPM @ 45 PSI, 43 GPM @ 45 PSI, 86 GPM @ 45 PSI, 150 GPM @ 45 PSI |
| Max Operating Pressure | 125 PSI (861 kPa) |
| Max Hot Water Supply Temp. | 180°F (82°C) |
| Outlet Temp. Range | 60°F - 95°F (15°C - 35°C), 60°F - 90°F (15°C - 32°C) |
| Patent | 9,879,658, 9,898,017 |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|

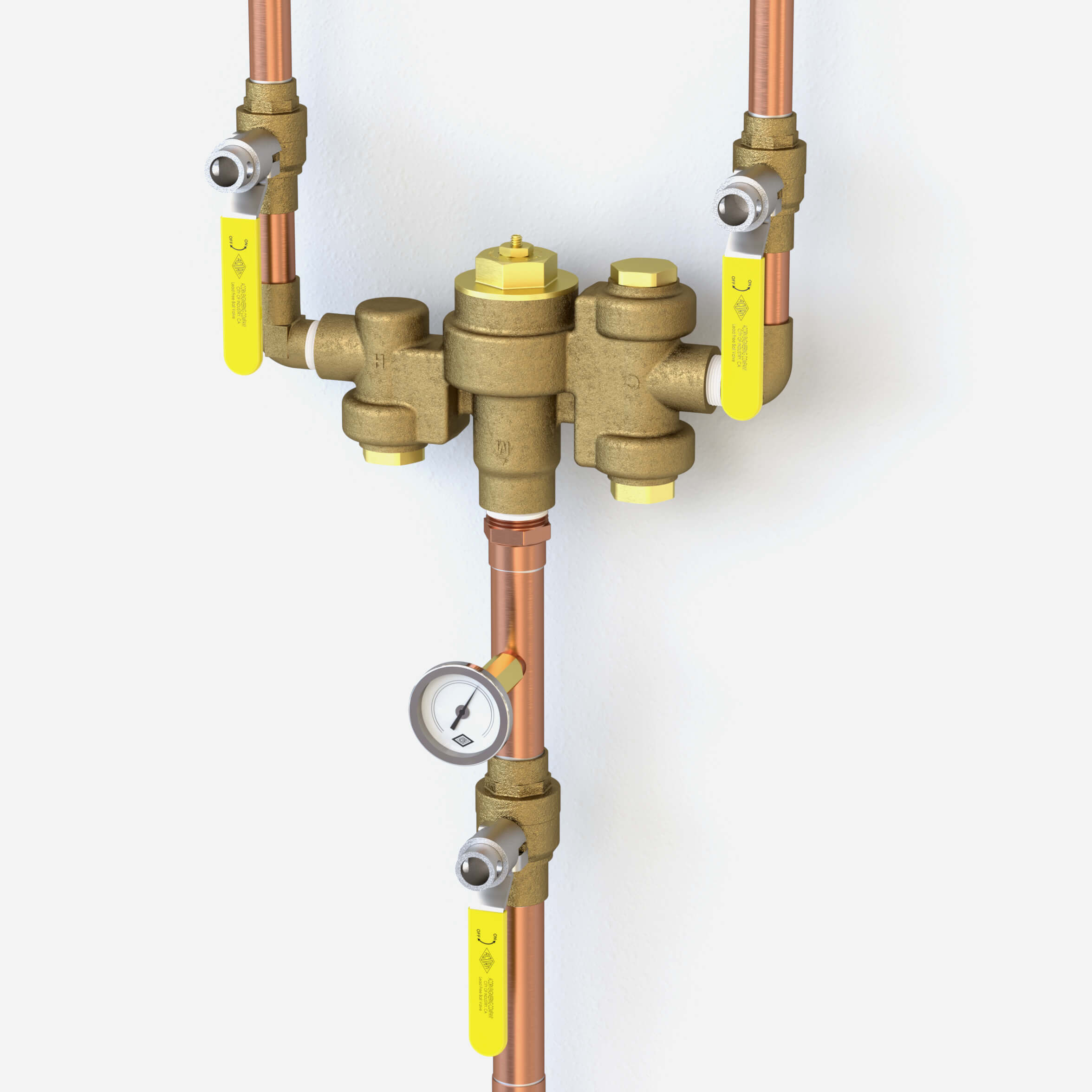

 | B | Option: Bottom Supply Inlet for Valve Supply Fixture | ||
 | CWB | Option: Cold Water Bypass | ||
 | DRS | Option: Solid Door for Valve Supply Fixture Cabinet | ||

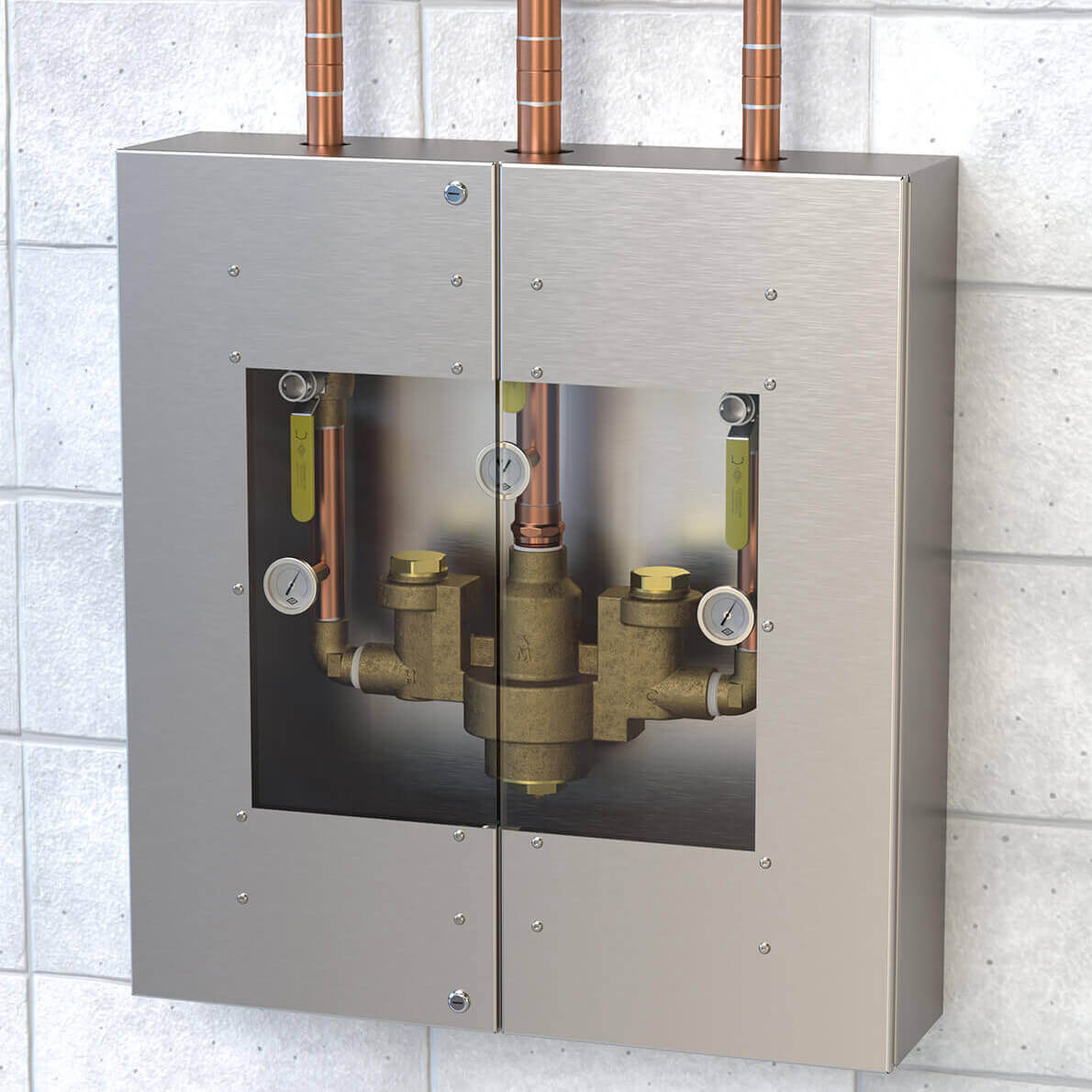

 | DRV | Option: Door with Viewport for Valve Supply Fixture Cabinet | ||
 | OB | Option: Bottom Outlet for Valve Supply Fixture | ||

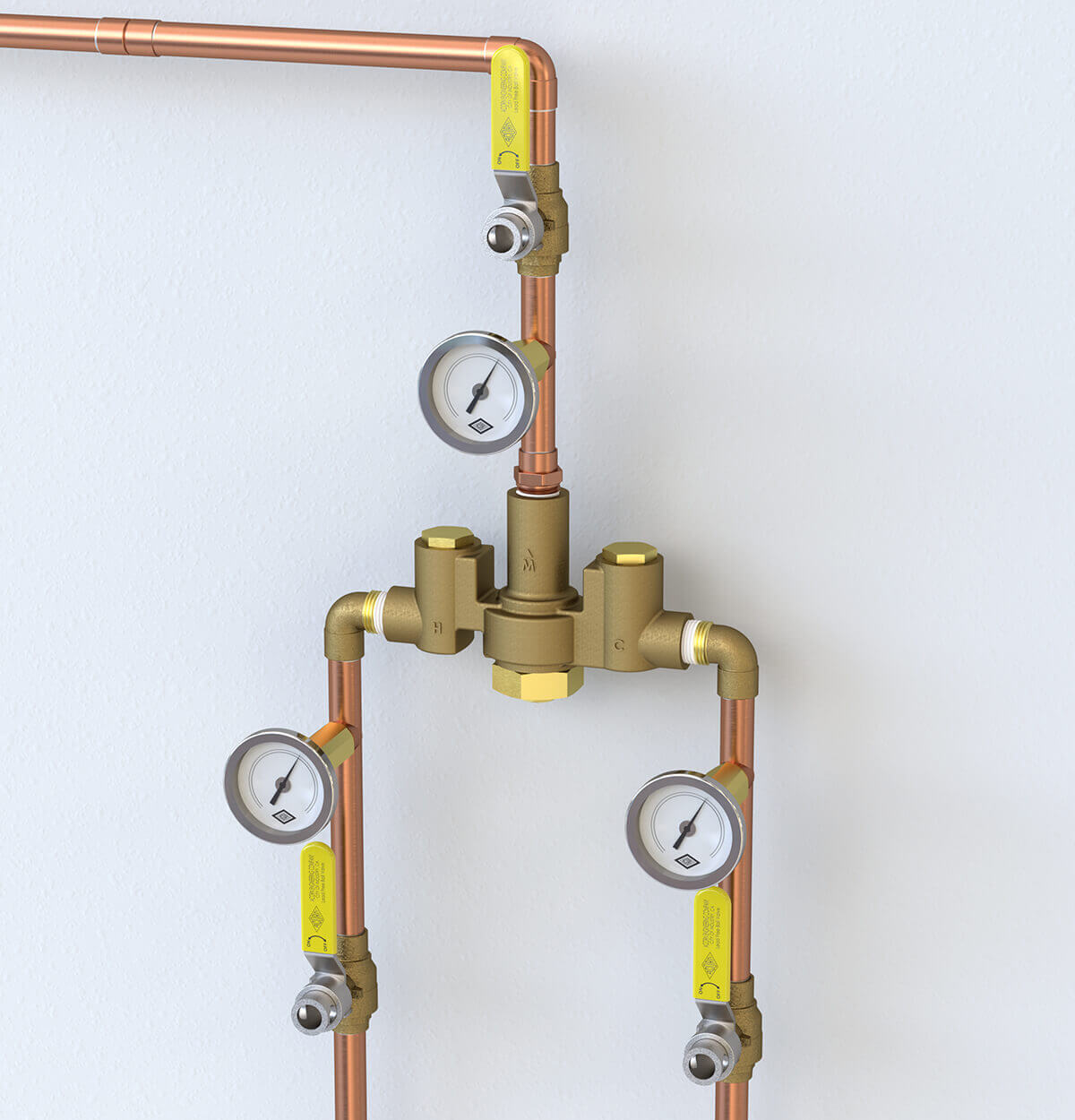

 | OSL | Option: Left Side Outlet for Valve Supply Fixture | ||

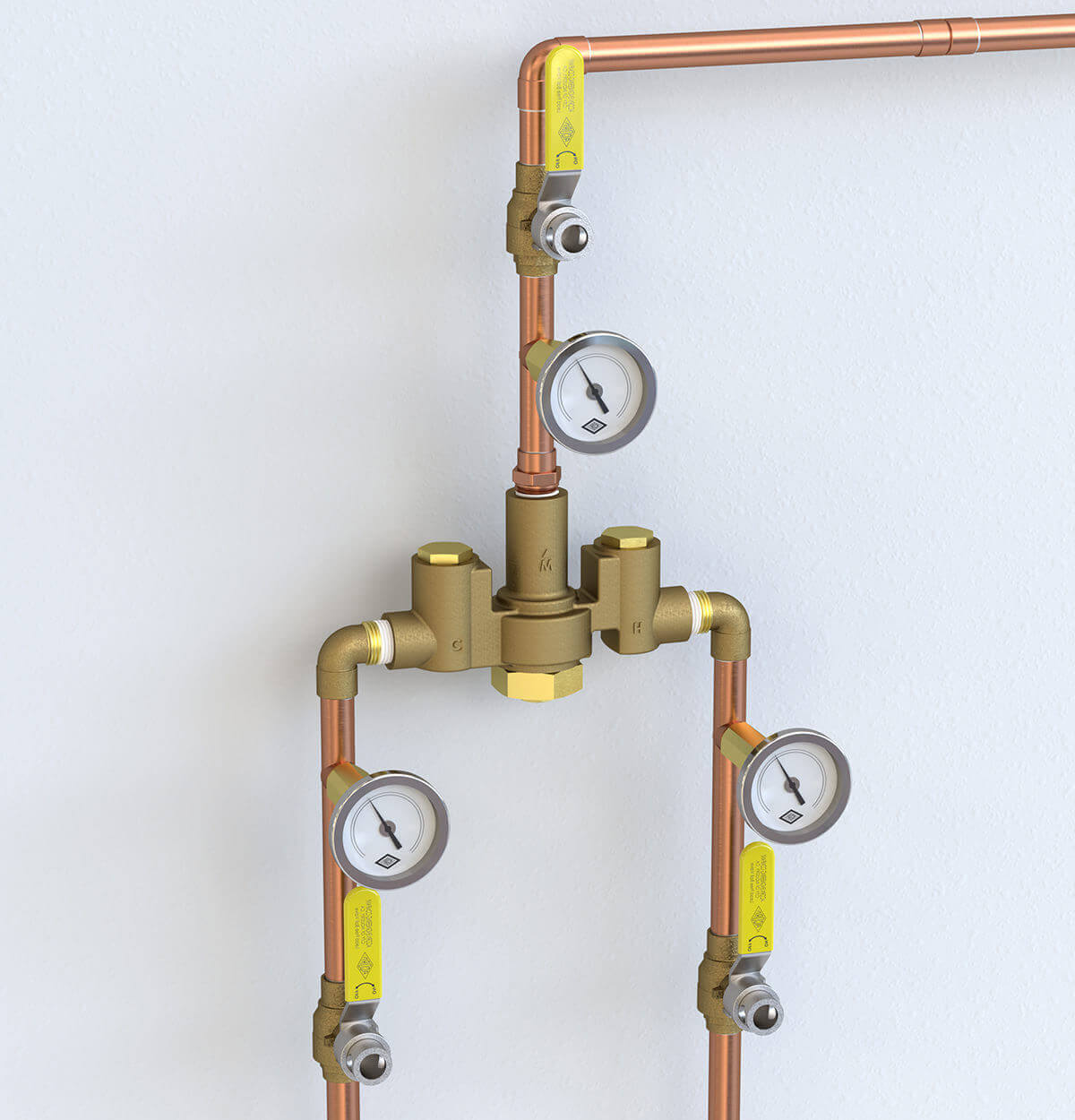

 | OSR | Option Right Side Outlet for Valve Supply Fixture | ||
 | OT | Option: Top Outlet for Valve Supply Fixture | ||
 | PRC | Option: Prime Coat Finish for Valve Supply Fixture Cabinet | ||

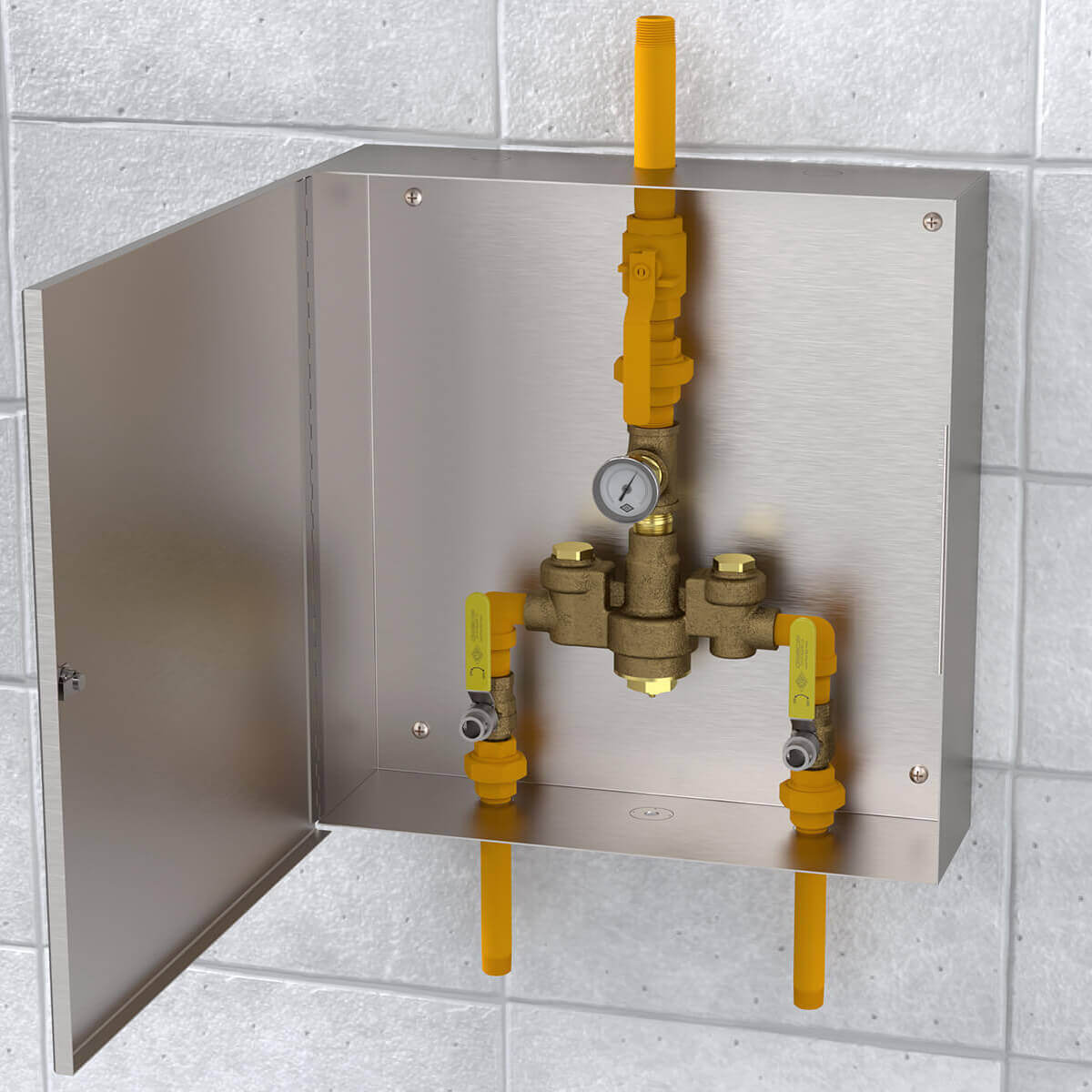

 | SSTL | Option: Stainless Steel Valve Supply Fixture Cabinet |
Models
 |  |  |  | |
|---|---|---|---|---|
| Model | SFET-1 | SFET-2 | SFET-3 | SFET-4 |
| Features | ET71-1 | ET71-2 | ET71-3 | ET71-4 |
| Inlet | 1/2" NPT | 3/4" NPT | 1" NPT | 1-1/4" NPT |
| Outlet | 1/2" NPT | 1" NPT | 1-1/4" NPT | 1-1/2" NPT |
| GPM | 12 GPM (45 LPM) | 43 GPM (163 LPM) | 75 GPM (284 LPM) | 135 GPM (510 LPM) |
