Name: Command Station® with Emergency Tempering Valve
Brand: Acorn ConTrols
SKU: CSET Series

Model CSET Series

Command Station® with Emergency Tempering Valve

Command Station Supply Fixtures offer installation convenience. They offer a 100% factory assembled fixture with a mixing valve, inlet and outlet gauge, and shut-off valve to ensure proper installation. They are tested for reliability and performance. Command Station Supply Fixtures can be used in commercial, institutional, and industrial applications.

Features

Based on ET71 Series Tempered Water Valves
Use for safety systems such as eye/face washes and drench showers.
4 models/sizes based on minimum flow performance requirements and maximum flow demands.
Available with BASyC ® Digital Mixing Valve & Monitoring System upgrade or option to add later.
A customized valve system for whole building or recirculating loop regulation
100% factory assembled and tested

Typical Items Included

Ball valves on the inlets and outlet
Outlet temperature gauge
Piping

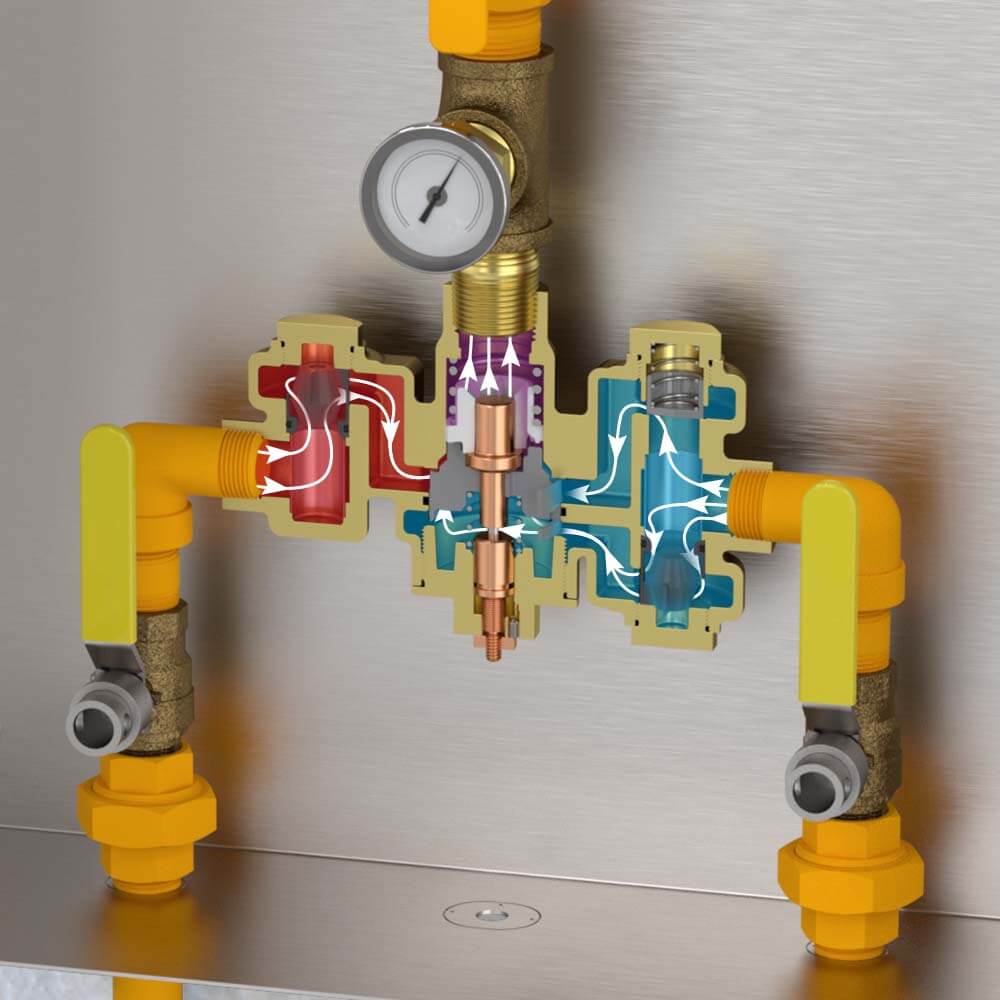

Tempering valve with integral checks and strainers
Hot/cold water bypass
Inlet temperature gauges
Wall-mounted or recessed cabinet (optional)
Other modifications/options upon request

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Brochures/Flyers	MGI Corporate Brochure (pdf)	Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends.	27 MB
Brochures/Flyers	Acorn ConTrols® System Flyer (pdf)	See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building.	1 MB
Brochures/Flyers	Acorn ConTrols® Sales Brochure (pdf)	Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building.	5 MB
Brochures/Flyers	Acorn ConTrols® Technical Brochure (pdf)	Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves.	4 MB
Brochures/Flyers	ET71 Emergency Tempering Valves Flyer (pdf)	Model ET71 thermostatic mixing valve is ASSE 1071-certified to supply safe, tempered water for emergency eye wash equipment and safety showers. Four sizes are available, with flow rates from 12–150 GPM at 45 PSID.	595 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Featured Valve	ET71 Series
Product Type	Command Station
Brand	Command Station®, Acorn ConTrols®
Compliance	ASSE 1071, No Lead - Federal Public Law 111-380, CSA B125.3, UPC
Valve Size	1/2" NPT Inlet & Outlet, 3/4" NPT Inlet & 1" NPT Outlet, 1" NPT Inlet & 1-1/4" NPT Outlet, 1-1/4" NPT Inlet & 1-1/2" NPT Outlet
Flow Rate	12 GPM @ 45 PSI, 150 GPM @ 45 PSI, 43 GPM @ 45 PSI, 86 GPM @ 45 PSI

Options

Accessories

	Image	Model	Description	Downloads
		TBV	Accessory: Thermostatic Balancing Valve

Miscellaneous

	Image	Model	Description	Downloads
		CWB	Option: Cold Water Bypass
		HWB	Option: Hot Water Bypass

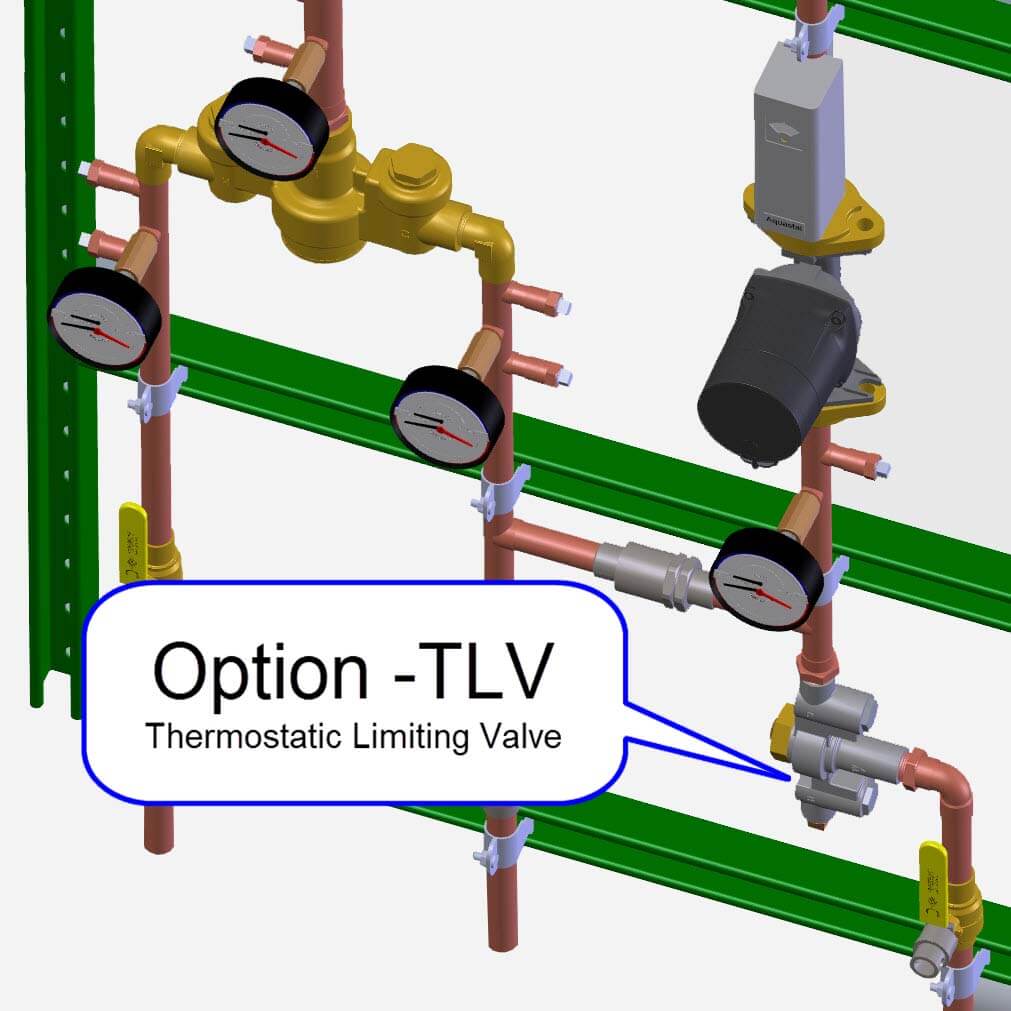

		TLV	Option: Thermostatic Limiting Valve

Models

INSTRUCTIONS: Create your custom CSET ordering code using this guide from below.

CSET - - - - 0 - -

Valve Size 1st Cell

1: ET71-1 (12 GPM)
2: ET71-2 (43 GPM)
3: ET71-3 (75 GPM)
4: ET71-4 (135 GPM)

Return Pipe Size 2nd Cell

C: 1/2"
D: 3/4"
E: 1"
F: 1-1/4"
G: 1-1/2"
H: 2"

Recirculating Pump 3rd Cell

0: None
1: Pump with AquaStat Control
3: Pump Only

Auto Balancing Valve 4th Cell

0: None
5: Thermostatic Balancing Valve (TBV)
6: Theromostic Limiting Valve (TLV)

Cold Water By-Pass 5th Cell

0: None
1: By-Pass

Hot Water By-Pass 6th Cell

0: None
1: By-Pass
