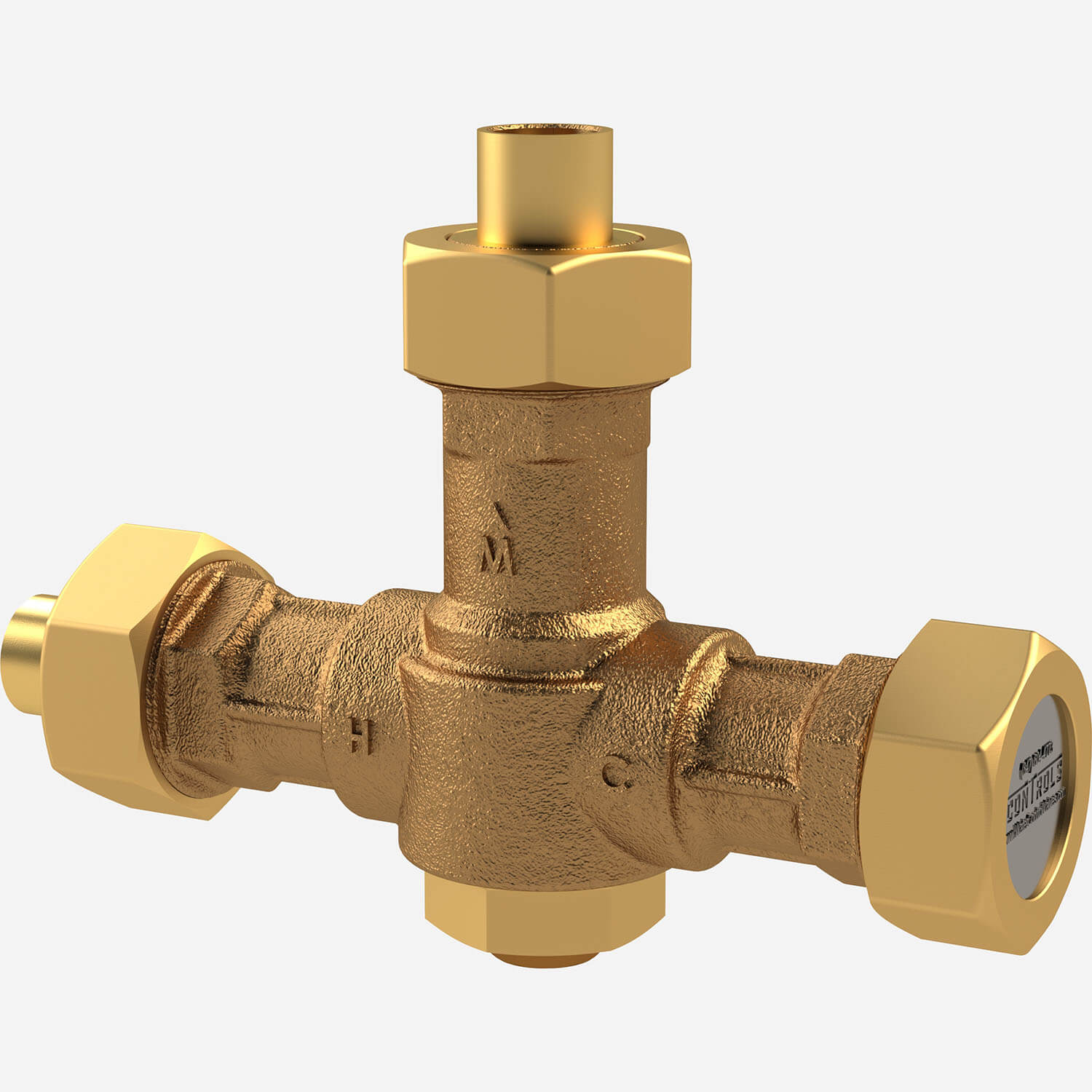

TempFlow® Thermostatic Balancing Valve with Connection Adapter Kits

The Acorn ConTrols® TempFlow® is a thermostatically controlled zone balancing valve that automatically maintains the domestic hot water zone temperature. By simply installing the valve after the last hot water device in each loop, it will self-adjust and balance the recirculated flow and heat loss of each TempFlow® regulated zone. This ensures fast and consistent delivery of hot water to all fixtures all the time.

Key Benefits

• Use in multi-story buildings to maintain domestic hot water zone temperature
• Install after the last hot water device in each recirculating loop
• Automatically adjusts to balance recirculated flow and heat loss of regulated zone
• Fast, consistent hot water delivery to all fixtures, all the time

USED IN COMMERCIAL, INSTITUTIONAL, AND INDUSTRIAL APPLICATIONS

Features

• Eliminates the need for time-consuming and costly setup balancing and frequent rebalancing required by Circuit Setters
• Lead-Free certified DZR brass body with corrosion-resistant and lead-free internal components
• Two outlet connections allow for either straight-through or a 90° configuration
• Integral and cartridge-style checks with accessible screens to prevent backflow and filter debris from entering the valve
• The TempFlow is field adjustable from 100°F (38° C) to 160°F (71°C).Replacement is not required if the target temperature changes
• An Allen wrench/locknut helps prevent unauthorized setpoint adjustment
• Commercial quality paraffin actuator provides repeatable, reliable performance
• Factory set to 110°F (43°C)
• Enables/Promotes less expensive pumps
• Reduces installation and maintenance costs
• Reduces pipe/fitting erosion by minimizing fluid velocities
• Available in 1/2" or 3/4" with Sweat, NPTF, PEX, Press, and CPVC Adapter Kits

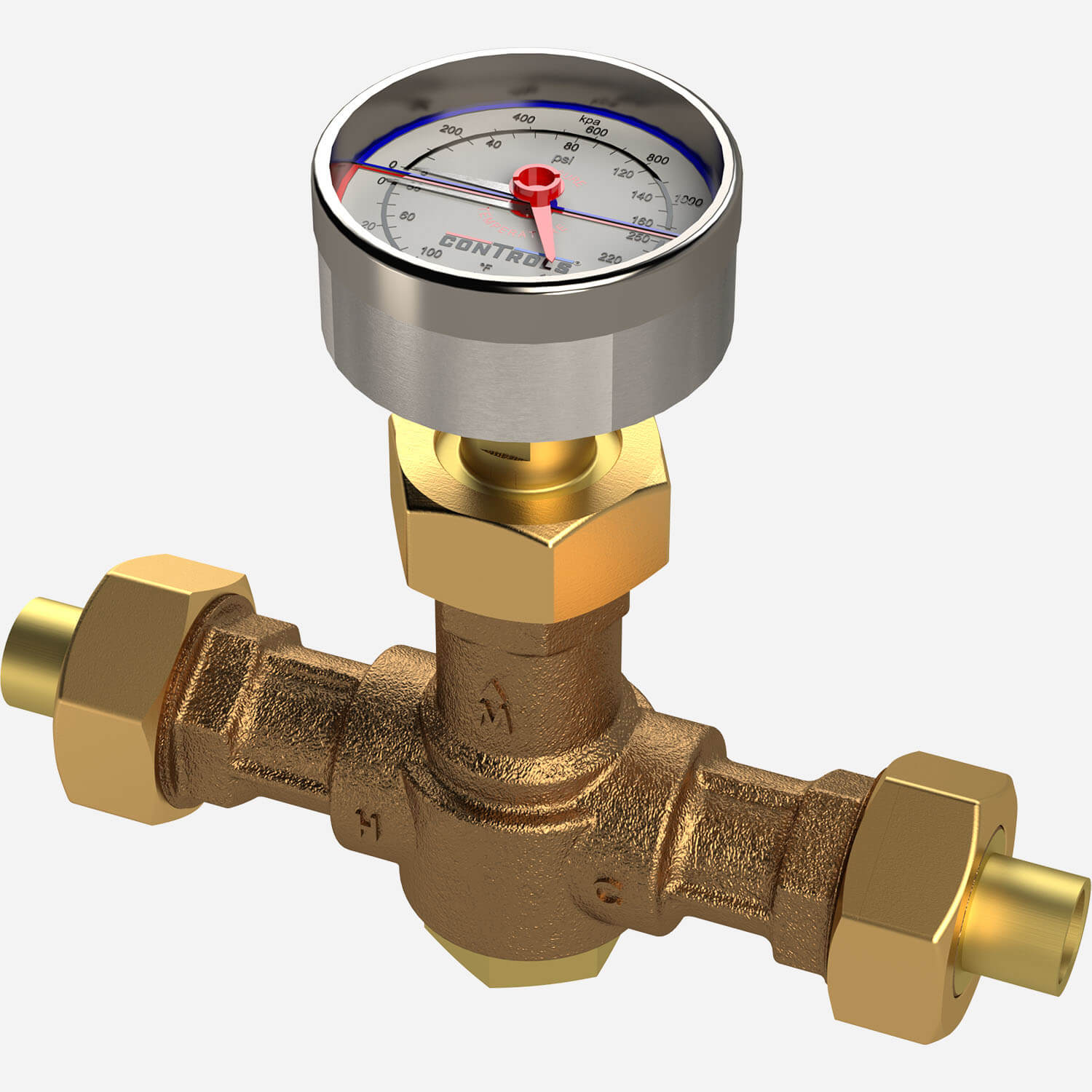

• An optional Temperature/Pressure Gauge can be installed in the second outlet
• Components are shipped unassembled.
