Member of Morris Group International
Model TZV Series
TempFlow® Thermostatic Balancing Valve
Save Time & Money—Easily Balance the Hot Water Recirculation System

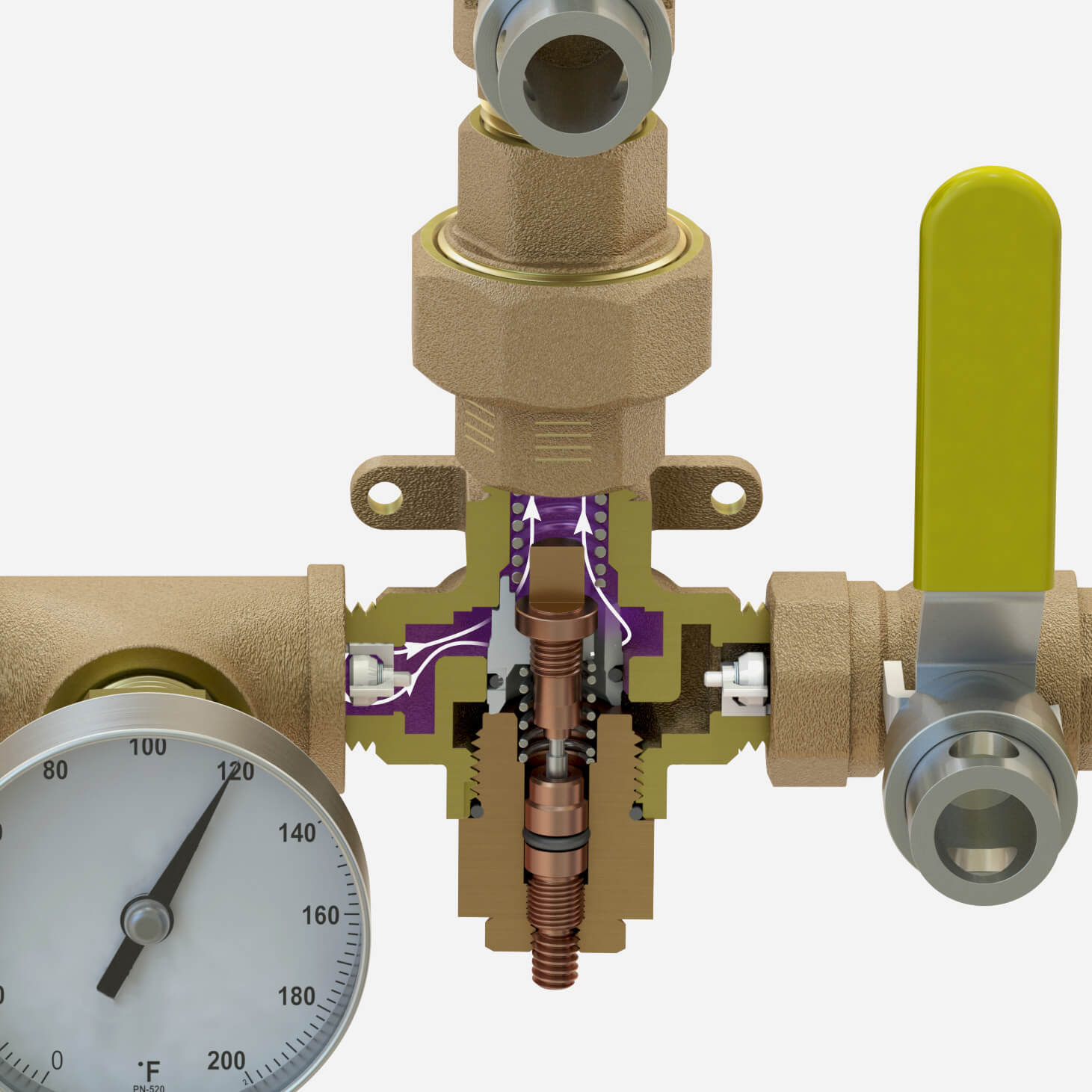

The TempFlow ® thermostatic balancing valve automatically maintains the temperature of the domestic hot water system. Install it after the last hot water device in each recirculating loop, and it will self-adjust to balance the recirculated flow and heat loss of each TempFlow-controlled zone.
Fast, consistent hot water delivery to all fixtures, all the time.
Features & Benefits
- Reduces installation and maintenance costs
- Ideal for commercial, institutional, and industrial applications
- Eliminates time-consuming and costly setup balancing and frequent rebalancing, especially in multi-story buildings
- Lead free-certified DZR brass body with corrosion-resistant and lead-free internal components
- Factory set to 110°F (43°C) and field adjustable from 100–160°F
- Integral checks to prevent backflow and filter debris from entering the valve
- Locknut to prevent unauthorized setpoint adjustment
- Commercial quality paraffin actuator for repeatable, reliable performance
- Reduces pipe/fitting erosion by minimizing fluid velocities
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | TempFlow® Thermostatic Balancing Valve [TZV-0001, TZV-1111, TZV-2101, TZV2111, TZV-3110] | 0 | 1013 KB | ||
| | TempFlow® Thermostatic Balancing Valve [TZV-0001, TZV-1111, TZV-2101, TZV2111, TZV-3110] | 0 | 765 KB | ||
 | | TempFlow® Thermostatic Balancing Valve [TZV-3110, TZV-0001] | 0 | 1 MB | ||
| | TempFlow® Thermostatic Balancing Valve [TZV-3110, TZV-0001] | 0 | 799 KB | ||
 | | MV17 Series, ST70 Series, ST7017, ST7069, SV16, TZV Valves | 0 | 272 KB | ||
| | MV17 Series, ST70 Series, ST7017, ST7069, SV16, TZV Valves | 0 | 220 KB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 0 | 4 MB | ||
| | Kwik Ship® Brands PRV Spec Sheet (pdf) | 0 | 707 KB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
| | Save time and money with Acorn ConTrols® Kwik Ship products, with many items shipped fully or partially assembled and stock replenished weekly. | 0 | 737 KB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Ideal for maintaining the temperature of the hot water recirculating system in multi-story buildings. TempFlow® is a thermostatically-controlled balancing valve, quickly self-adjusting to ensure fast, consistent hot water delivery at all times. | 0 | 724 KB | ||
| | The TempFlow® thermostatic balancing valve automatically self-adjusts to maintain the temperature of the hot water recirculating system, saving time and reducing costs. | 0 | 280 KB | ||
 | | Reliable hot water temperature ensures safety and comfort. Save time and money with the TempFlow® thermostatic balancing valve, maintaining the desired temperature without constant valve adjustments. Watch the video to learn more! | 0 | 133 KB |
Specifications
| Brand | TempFlow® |
| Material | Brass Casting with Corrosion-Resistant Internal Components |
| Product Type | Thermostatic Balancing Valve |
| Valve Size | 1/2" |
| Compliance | No Lead - Federal Public Law 111-380 |
| Patent | Pending |
Options

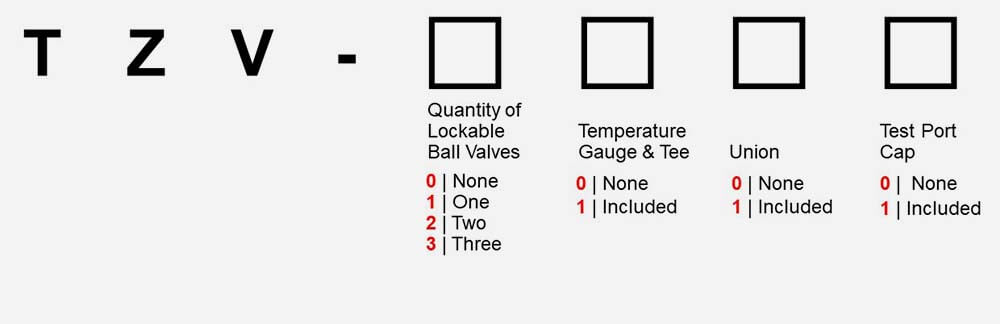

Models

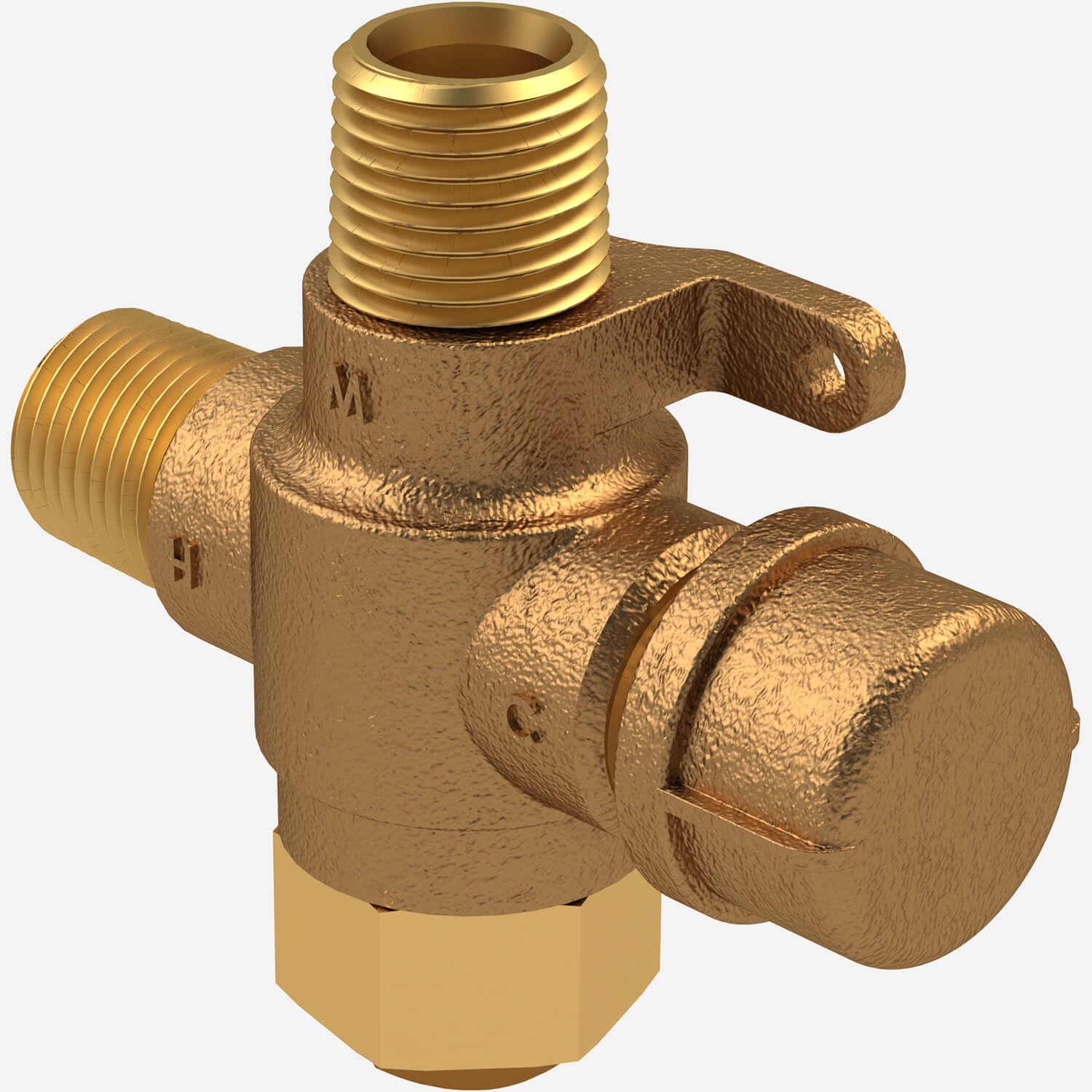

TZV-0001
Valve, Test Port Cap

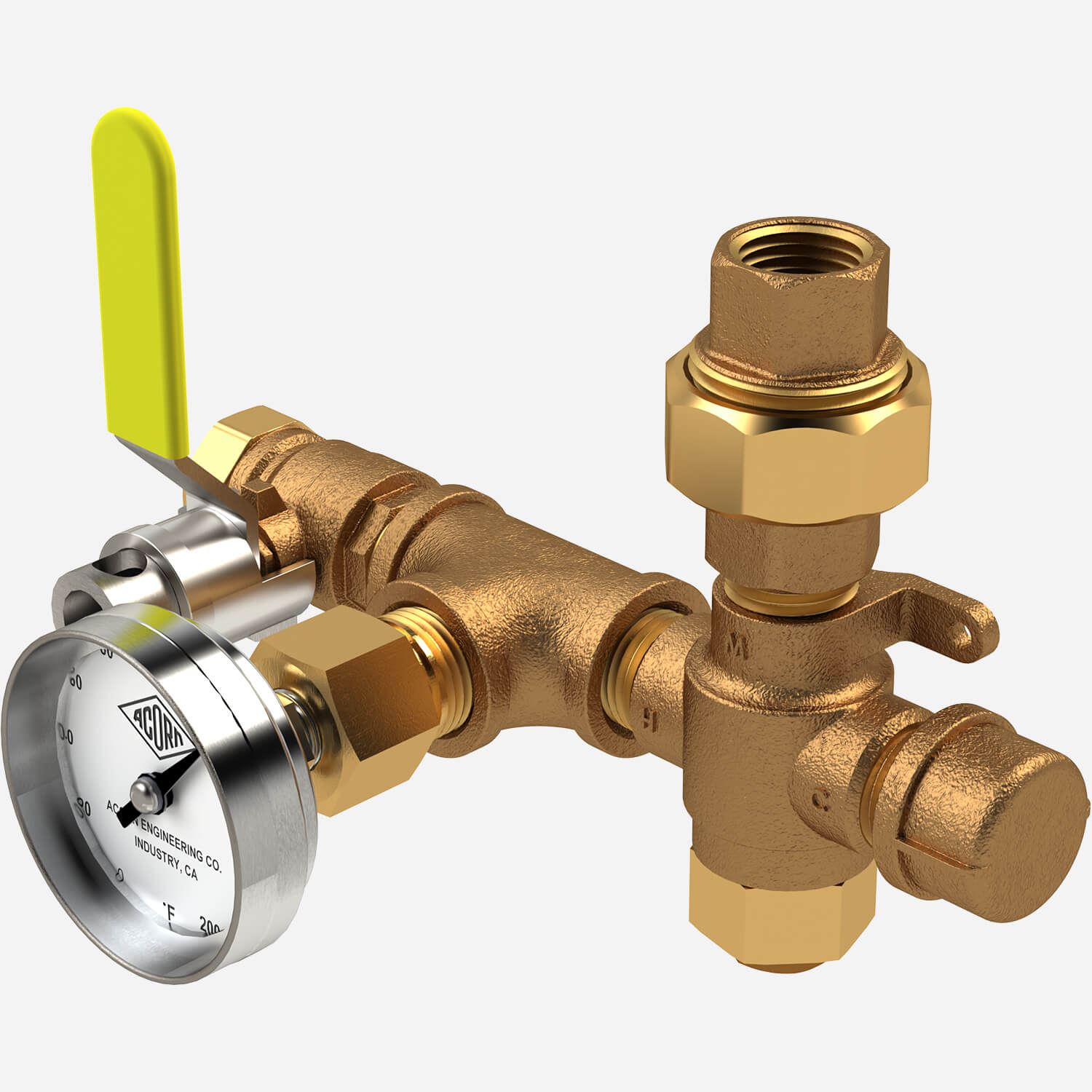

TZV-1111
Valve, Single Lockable Ball Valve, Gauge with Tee, Union, Test Port Cap

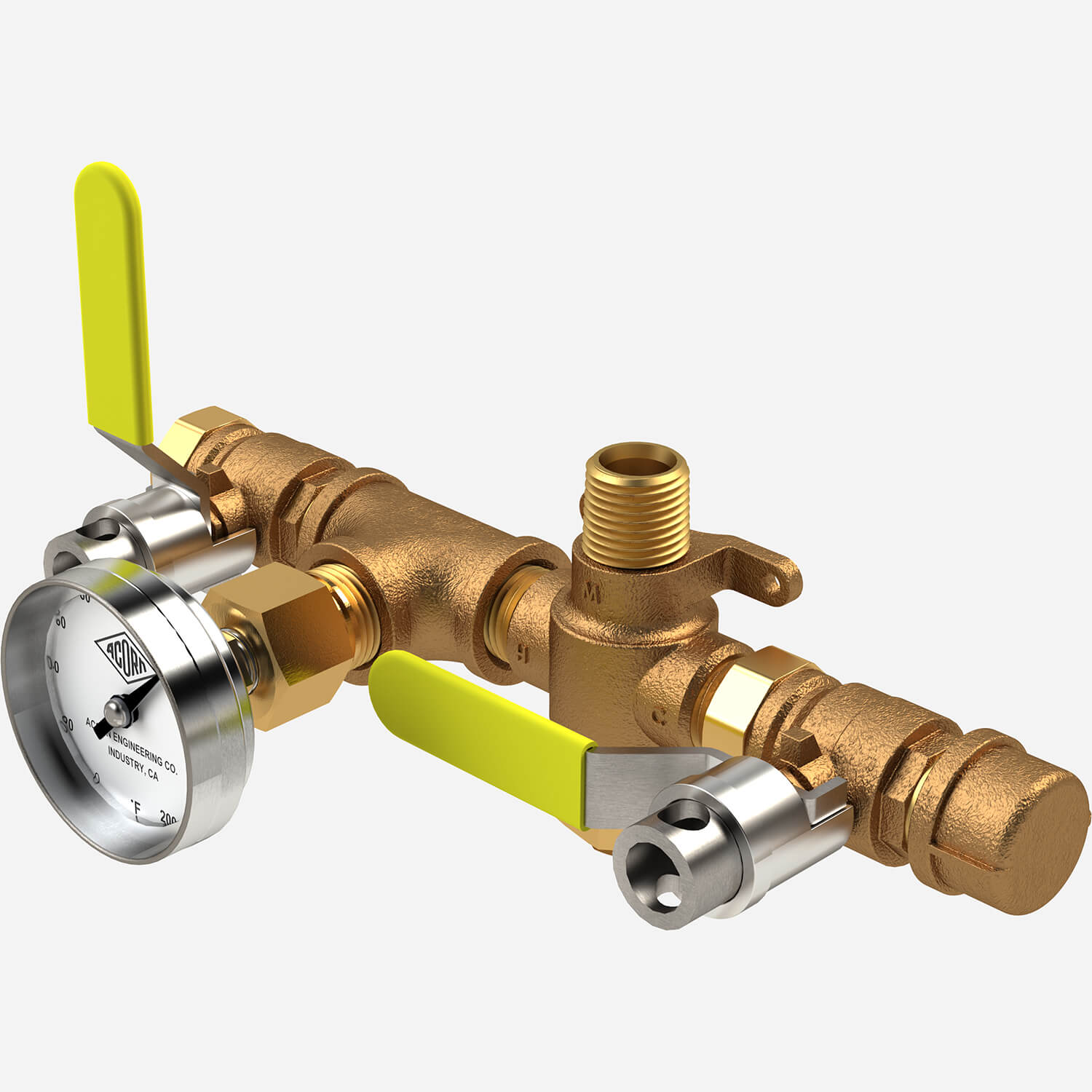

TZV-2101
Valve, Two Lockable Ball Valves, Gauge with Tee, Test Port Cap

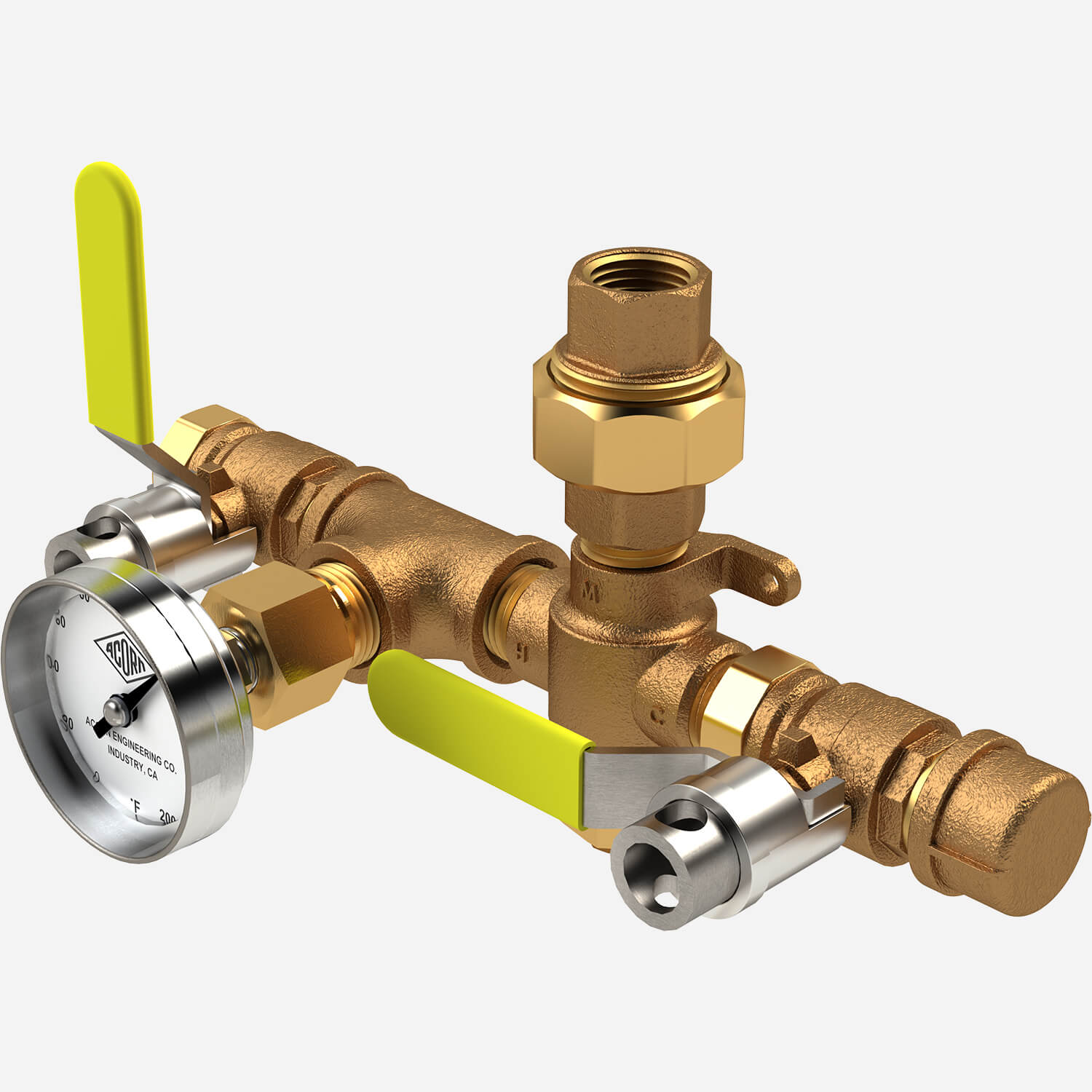

TZV-2111
Valve, Two Lockable Ball Valves, Gauge with Tee, Union, Test Port Cap
TZV-3110
Valve, Three Lockable Ball Valves, Gauge with Tee, Union
Components ship unassembled. Other configurations are available and may require engineering.
