Automatic Temperature Monitoring Alarm System

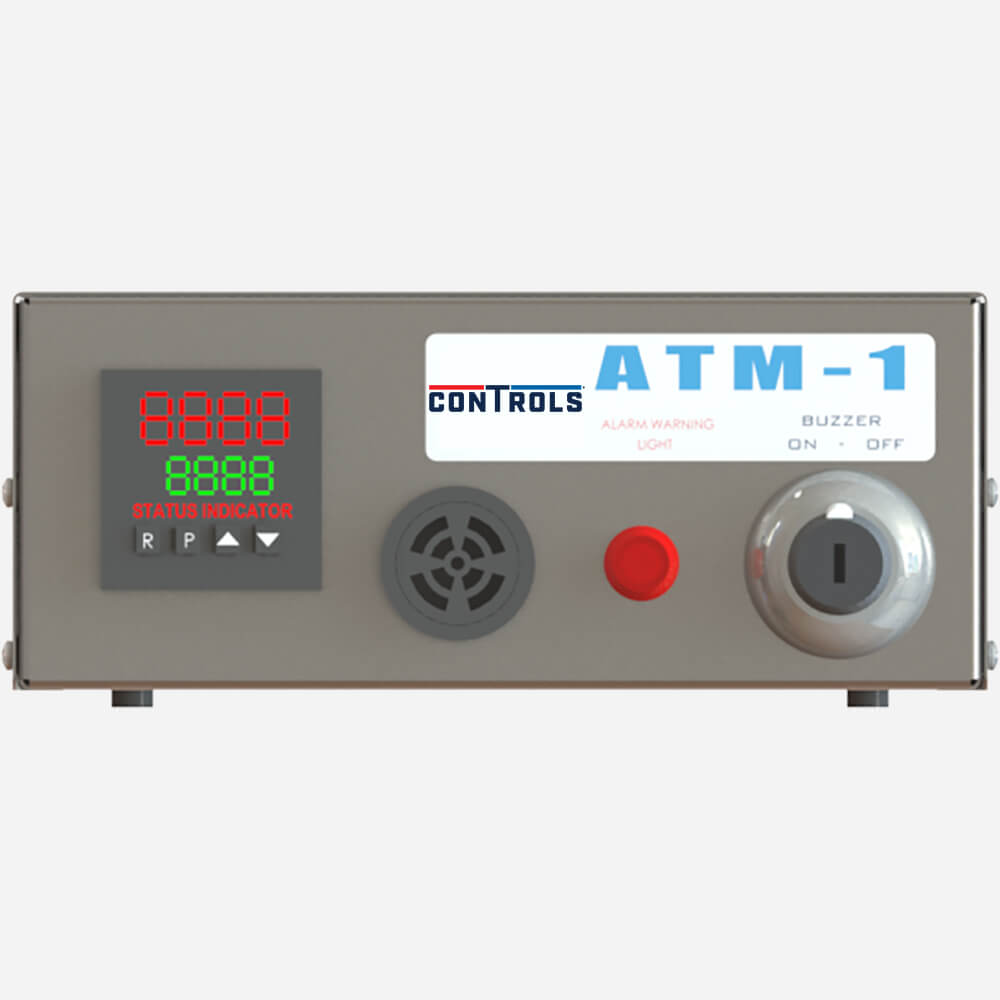

The model Acorn ConTrols® ATM-1 Automatic Temperature Monitoring Alarm System is ideal for monitoring domestic and institutional tempered water systems. With the use of an optional electronically actuated valve installed, the ATM-1 will alert and shut down tempered water flow when the water temperature exceeds high limit conditions. The most common commercial uses would include hospitals, shower rooms, therapeutic applications, boilers, and hot water heaters.

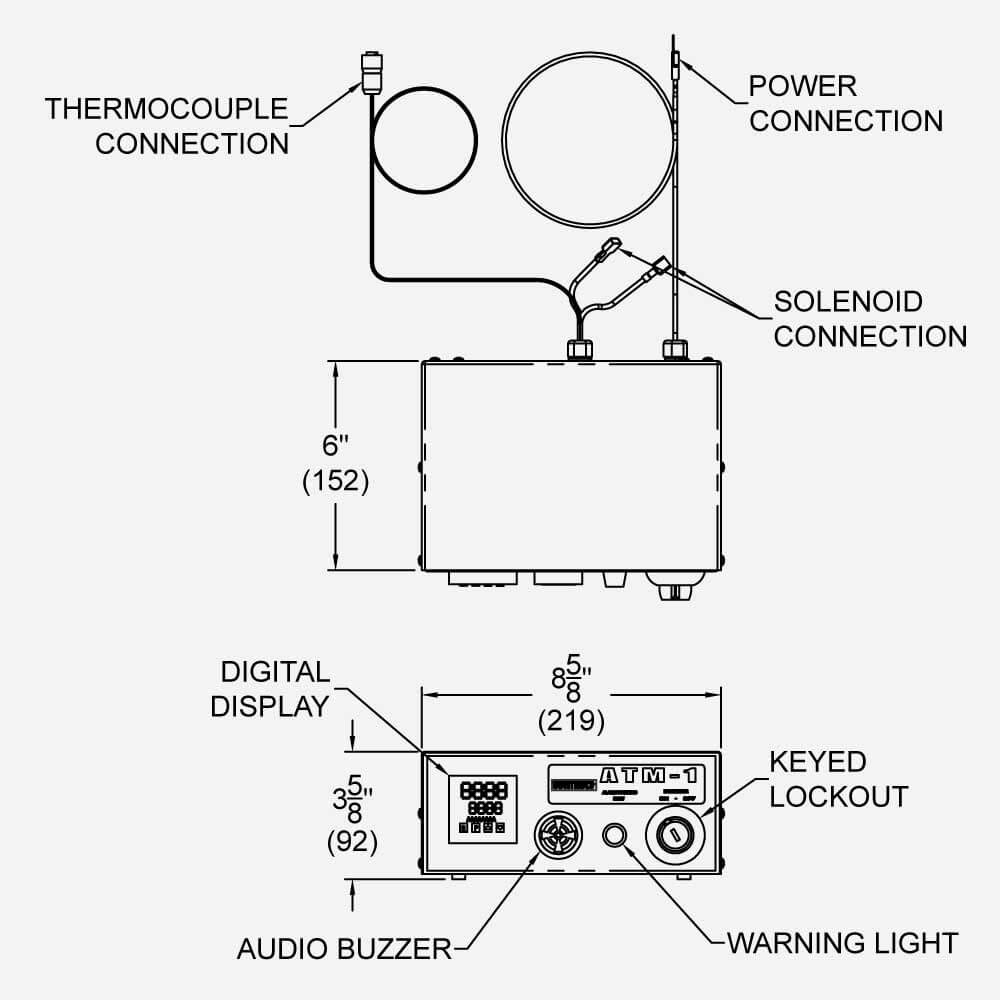

ATM-1 Features
- Microprocessor Based Temperature Controller
- LED Temperature, Limit Setting, and Alarm Display
- 110 VAC to 24 VAC Plug-In Transformer (50 VA) with 10 Foot Cable Stainless Steel Cabinet
- Type “T” Thermocouple, with 10 Foot Cable
- Compression Fittings
- Red Warning Light and Buzzer
- Keyed Buzzer
- Latching Warning and Limit Alarm
- Manual Reset
- High/Low-Temperature Monitoring
- Adjustable Temperature Settings
- Security Lockout Code
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Automatic Temperature Monitoring Alarm System for Thermostatic Mixing Valve | 0 | 858 KB | ||
| | Automatic Temperature Monitoring Alarm System for Thermostatic Mixing Valves | 0 | 418 KB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB |
Specifications
| Temperature Rating | 40°F - 199°F (4°C - 93°C) |
| Brand | Acorn ConTrols® |
Models

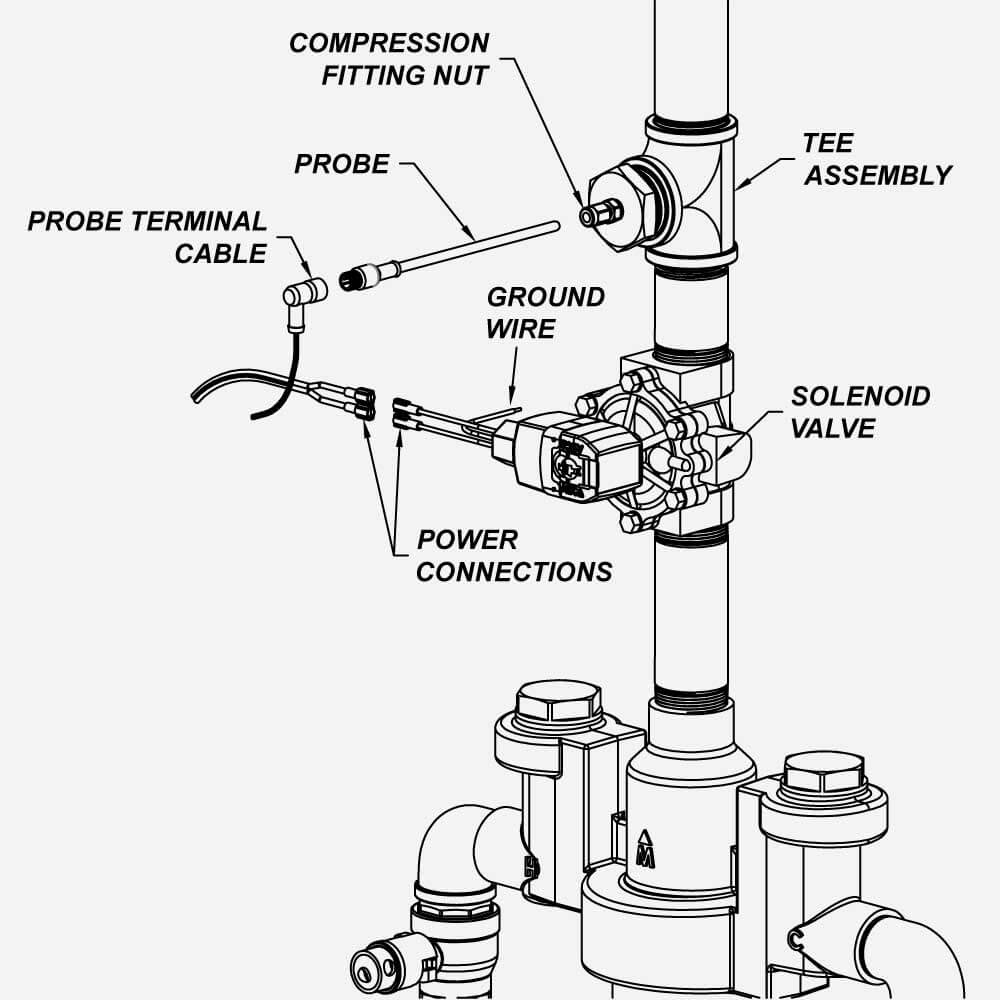

OPTIONSThermocouple Tee and Adapter -Specify: 1/2" NPT; 3/4" NPT; 1" NPT; 1-1/4" NPT; 1-1/2" NPT; 2" NPT
Normally Closed Solenoid - includes 10 foot (3.048 meter) cable Specify: 1/2" NPT; 3/4" NPT; 1" NPT; 1-1/4" NPT; 1-1/2" NPT; 2" NPT
Lead-Free Water Hammer Arrester -Specify: 1/2" NPT; 3/4" NPT; 1" NPT; 1-1/4" NPT; 1-1/2" NPT; 2" NPT
Additional cable, 10 foot (3.048 meter) segments:Specify: Number of additional Thermocouple Segments Specify: Number of additional Solenoid Segment
Wall Mounting Brackets
