Model ST7017

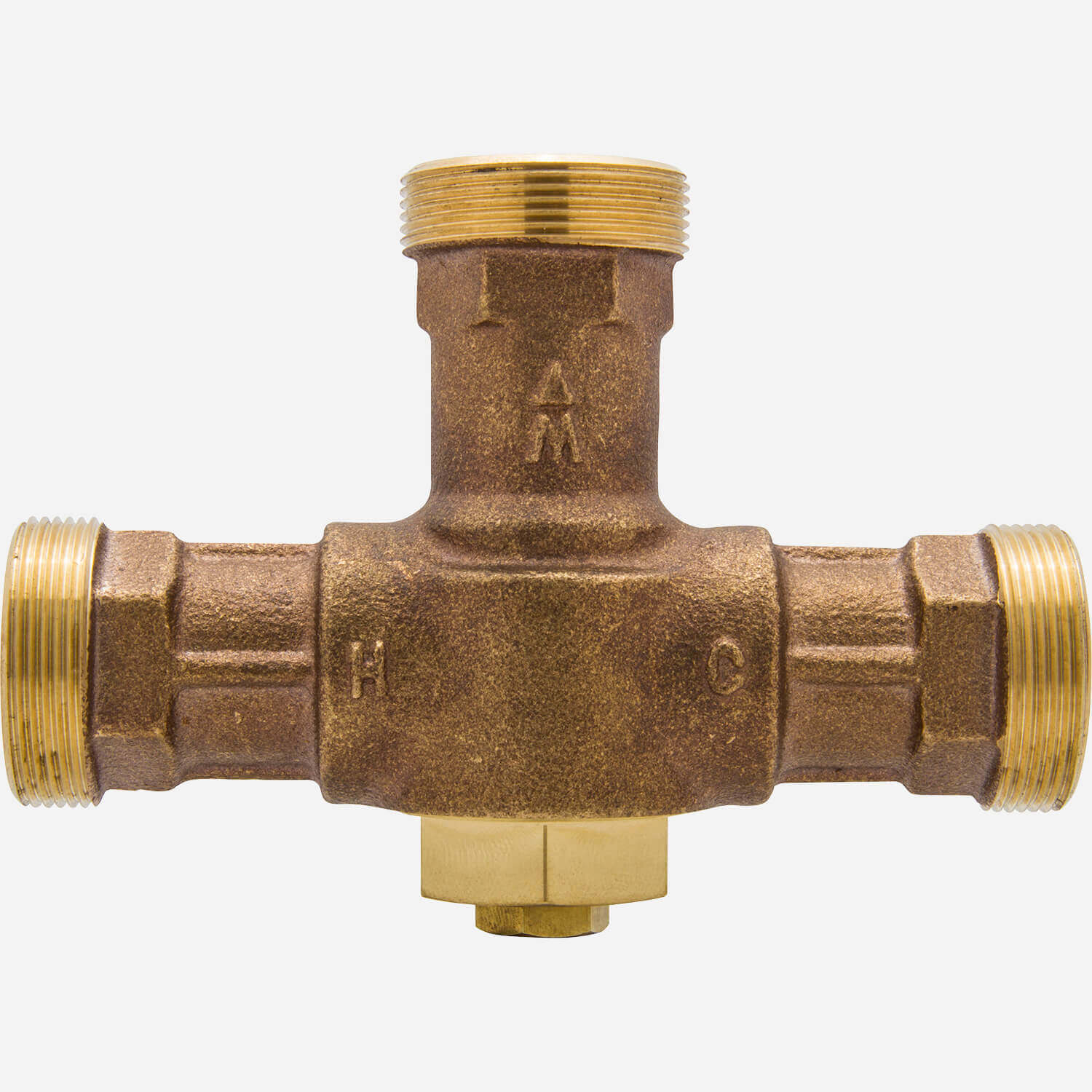

Omega® Thermostatic Mixing Valve

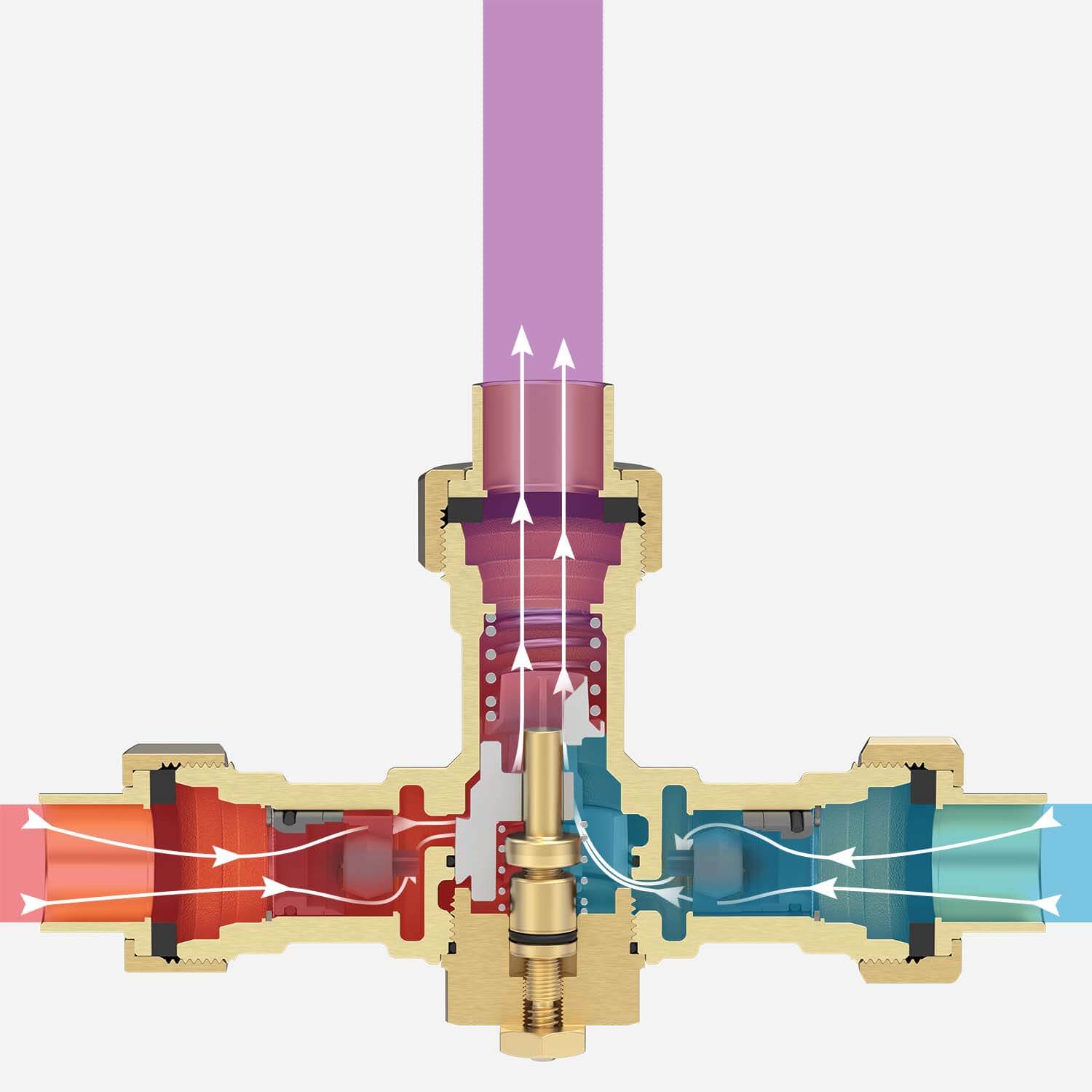

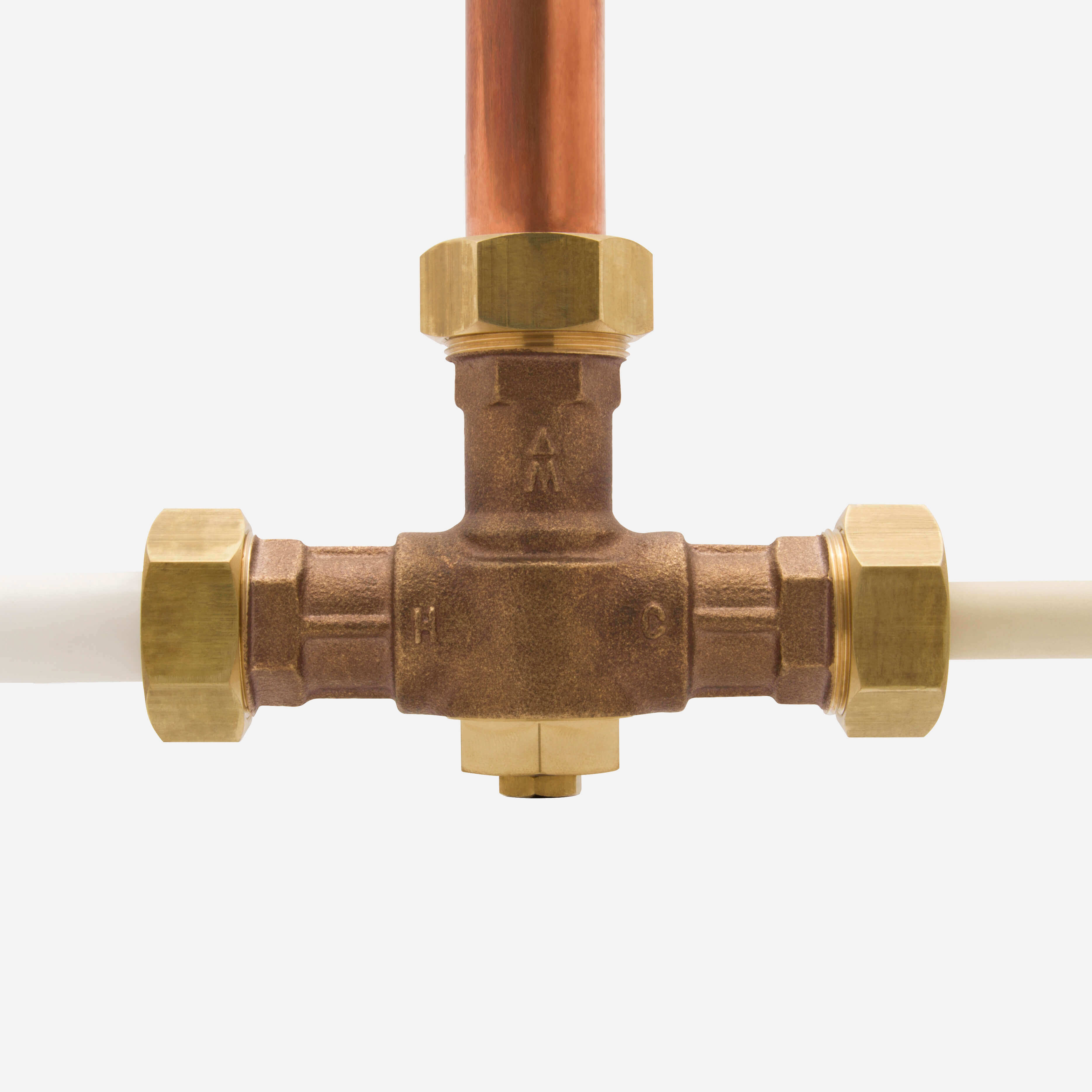

The OMEGA® Thermostatic Mixing Valve is intended for use in hot water distribution systems, as a hot water extender and/or to limit the distribution temperature supplied to fixtures. The Mixing Valves can be installed at the point of use to temper water for sinks, baths, showers, and lavatories. Omega’s dual listing also allows these to be used as a master mixing valve to provide better temperature control while also extending the amount hot water available. These are available in 1”, 1/2”, 3/4” sizes for use in commercial, residential, institutional, and industrial applications.
Key Benefits
- Install at point of use to temper water for sinks, baths, showers, and lavatories
- Accommodates up to 48 hand washing stations
- Can be used as a hot water extender to increase hot water capacity
- Valve does not require continuous recirculation
- Integral checks and strainers are replaceable
Compliant with the temperature control requirements of ASSE 1017 and ASSE 1070 at all flow rates well below the ASSE standard tested flow rate. The ST7017 thermostatic mixing valve can safely deliver controlled tempered hot water to all your fixtures, at all times.
ST7017 Valve Features
- Lead-Free DZR brass body with corrosion-resistant and lead-free internal components - The wetted surface of these valves contacted by consumable water contains less than 0.25% of lead by weight in conformance with national Lead-Free law.

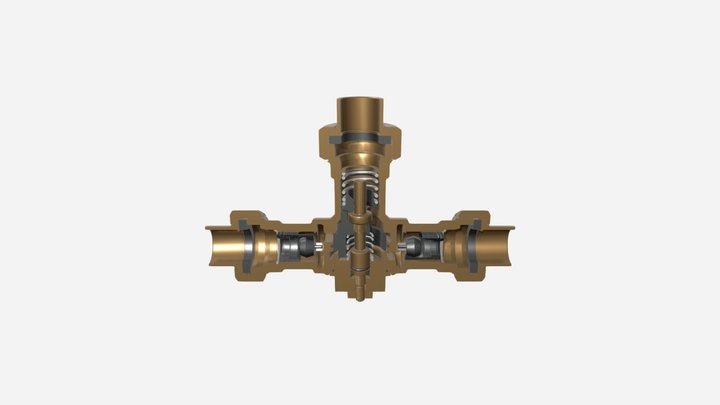

- Integral cartridge-style Checks to prevent cross-flow and Strainers to filter debris from entering the Valve
- Temperature adjustment made using an Allen wrench
- Locknut on the Bonnet prevents unauthorized or accidental temperature adjustment
- Commercial quality paraffin Thermal Actuator provides repeatable, reliable performance
- Factory set to 105°F (41°C) and field adjustable
- IAPMO certified to ASSE 1070 down to 0.25 GPM (1.0 LPM) within ± 7°F (5.5°C)
- IAPMO certified to ASSE 1017 down to 0.25 GPM (1.0 LPM)
- The ST7017 mixing valve is capable of exceeding the temperature control accuracy requirements of ASSE 1070 and 1017 at all flow requirements without requiring a continuously Recirculating Pump
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Omega™ ASSE 1070 and ASSE 1017 Compliant Thermostatic Mixing Valve | 0 | 606 KB | ||
| | Omega® ASSE 1070 and ASSE 1017 Compliant Thermostatic Mixing Valve | 0 | 360 KB | ||
 | | MV17 Series, ST70 Series, ST7017, ST7069, SV16, TZV Valves | 0 | 272 KB | ||
| | MV17 Series, ST70 Series, ST7017, ST7069, SV16, TZV Valves | 0 | 220 KB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 0 | 4 MB | ||
| | Kwik Ship® Brands PRV Spec Sheet (pdf) | 0 | 707 KB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
| | The Omega® Model ST7017 is ideal for hot water distribution and point-of-use applications. | 0 | 928 KB | ||
| | Save time and money with Acorn ConTrols® Kwik Ship products, with many items shipped fully or partially assembled and stock replenished weekly. | 0 | 737 KB |
Specifications
| Brand | Acorn ConTrols®, Omega® |
| Material | Brass Casting with Corrosion-Resistant Internal Components |
| Compliance | CSA B125.3, ASSE 1070, No Lead - Federal Public Law 111-380, ASSE 1017, UPC |
| Temperature Rating | 95°F - 130°F (35°C - 54°C) |
| Connections | Sweat, CPVC, NPTF, Press Fit, PEX-B |
| Flow Rate | 24 GPM @ 45 PSI |
| Product Type | Thermostatic Balancing Valve, Mixing Valve |
| Max Operating Pressure | 125 PSI (861 kPa) |
| Max Hot Water Supply Temp. | 180°F (82°C) |
| Valve Size | 1", 1/2", 3/4" |
| Patent | 9,898,017 |
Models
Models are specified by pipe size and connection see below
| Model | Size | Connection | Material |
|---|---|---|---|
| ST7017-12CU | 1/2” Copper Tube | Copper Tube (Sweat) | Brass Valve Body |
| ST7017-34CU | 3/4” Copper Tube | Copper Tube (Sweat) | Brass Valve Body |
| ST7017-12FNPT | 1/2” NPT (Female) | Threaded Pipe | Brass Valve Body |
| ST7017-34FNPT | 3/4” NPT (Female) | Threaded Pipe | Brass Valve Body |
| ST7017-12PEX | 1/2” PEX Tubing | Pex Pipe | Brass Valve Body |
| ST7017-34PEX | 3/4” PEX Tubing | Pex Pipe | Brass Valve Body |
| ST7017-12CPVC | 1/2” PVC | PVC Pipe | Brass Valve Body |
| ST7017-34CPVC | 3/4” PVC | PVC Pipe | Brass Valve Body |
| ST7017-12PF | 1/2” Press Fit | Press Fit Pipe | Brass Valve Body |
| ST7017-34PF | 3/4” Press Fit | Press Fit Pipe | Brass Valve Body |
| ST7017-1PF | 1” Press Fit | Press Fit Pipe | Brass Valve Body |
