Model ST7069
Tempering Valve for Point-of-Use Fixtures

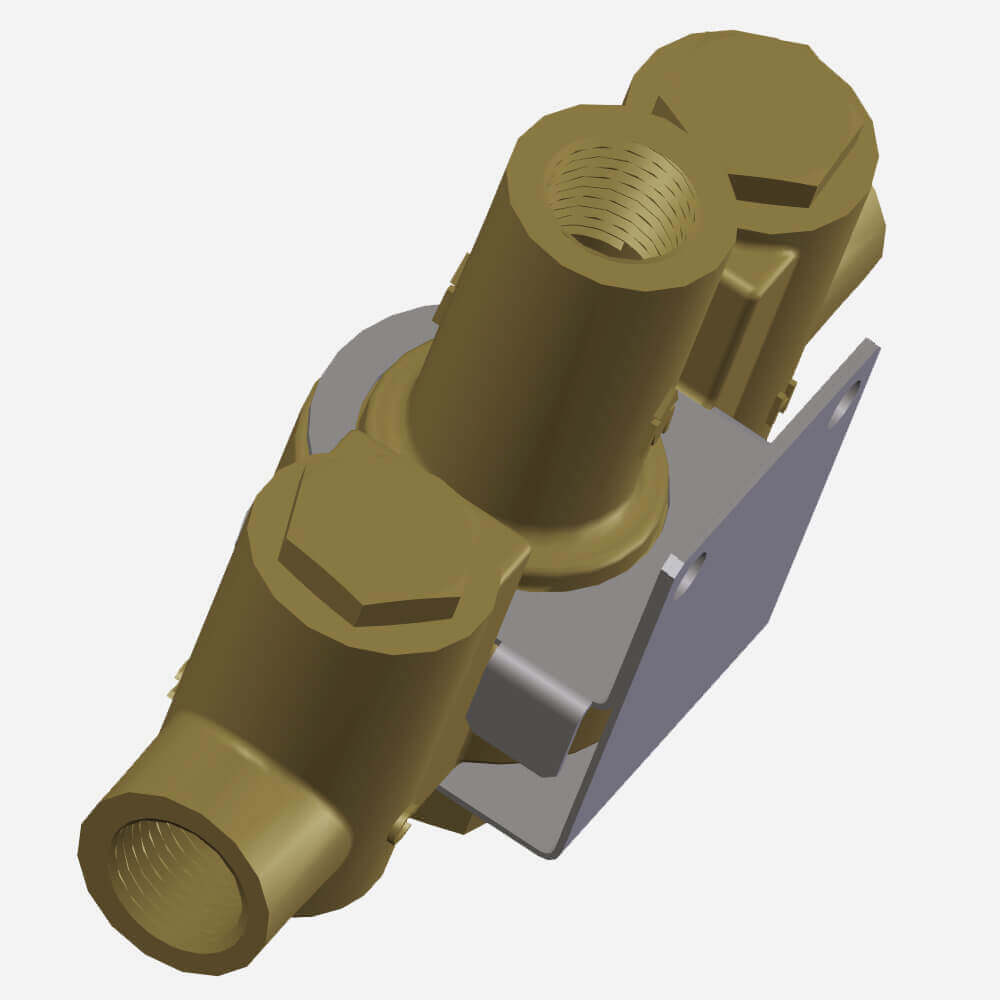

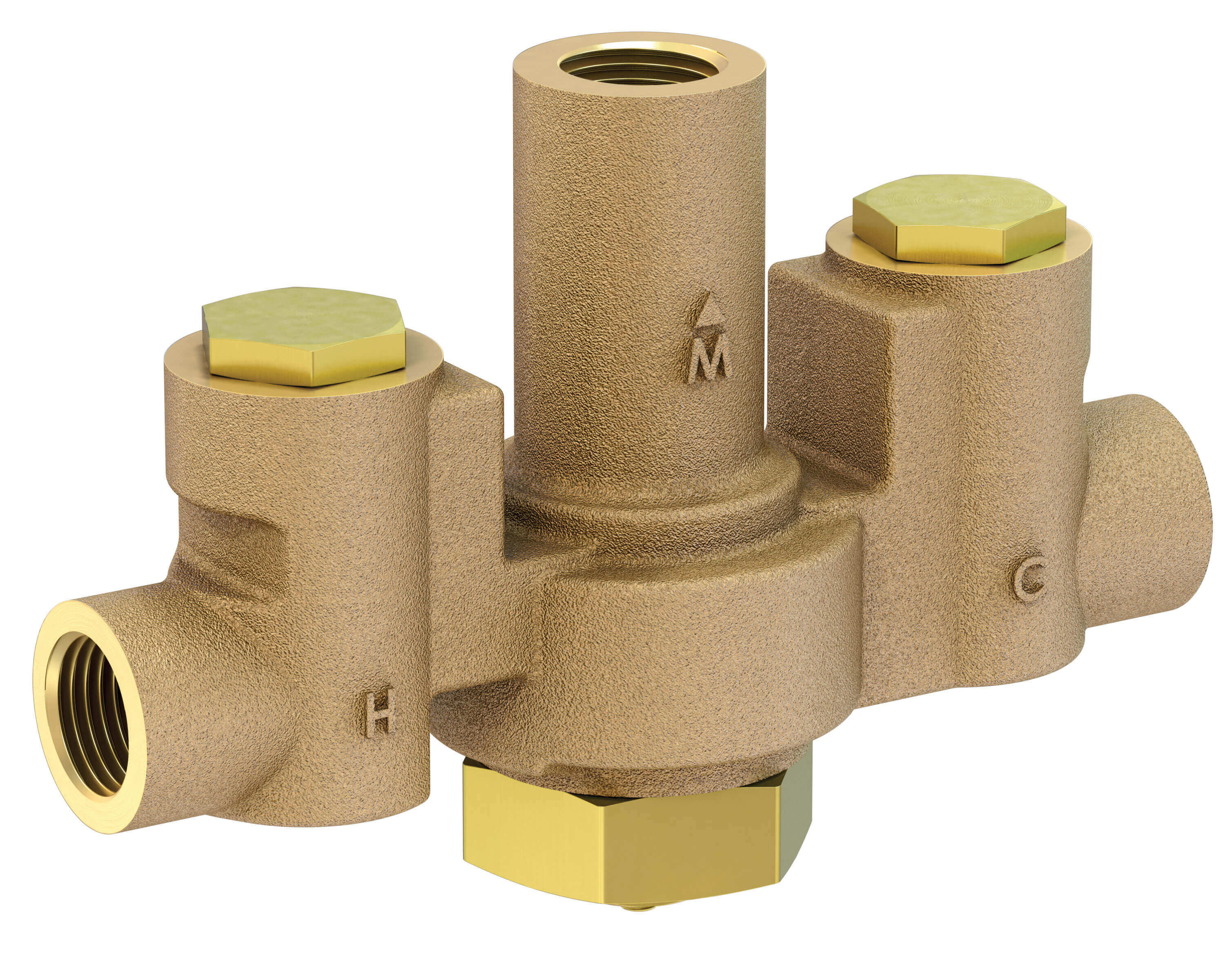

The model ST7069, an ASSE 1070 and 1069 Certified Thermostatic Mixing Valve, is Lead-Free and ideal for delivering safe tempered water at the point-of-use fixture(s) such as sinks, baths, showers, or lavatories in residential, commercial, and institutional environments.
Key Benefits
- Install at point of use to temper water for sinks, baths, showers, and lavatories
- Brass and paraffin wax design eliminates unreliable and inconsistent performance of competitors’ bi-metal designs
- Accommodates up to 8 single-temperature showers or 24 lavatories
This valve can deliver 12 GPM (45 LPM) @ 45 PSI (310 kPa) differential and accommodate up to 8 single-temperature showers or up to 24 hand washing stations with 0.5 GPM (1.9 LPM) flow restrictors.
ST7069 Valve Features
- Lead-Free certified DZR brass body with corrosion-resistant and lead-free internal components.

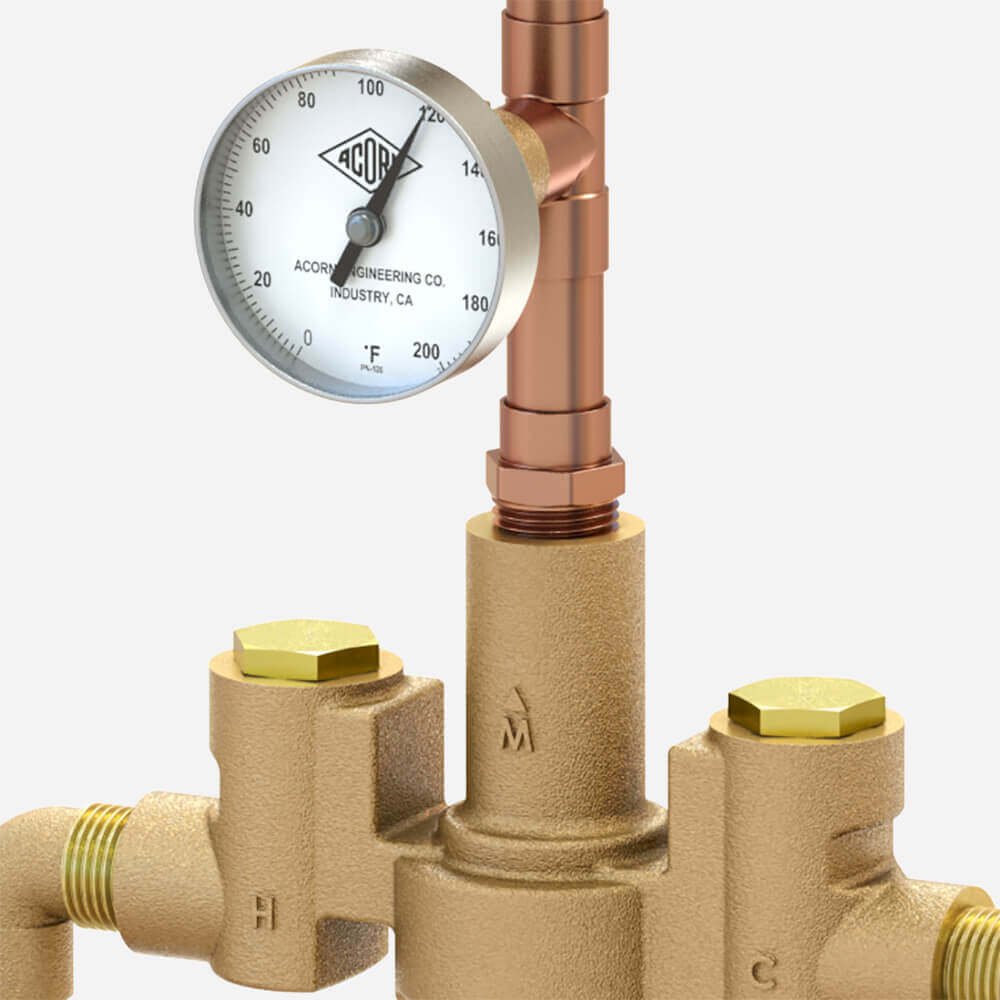

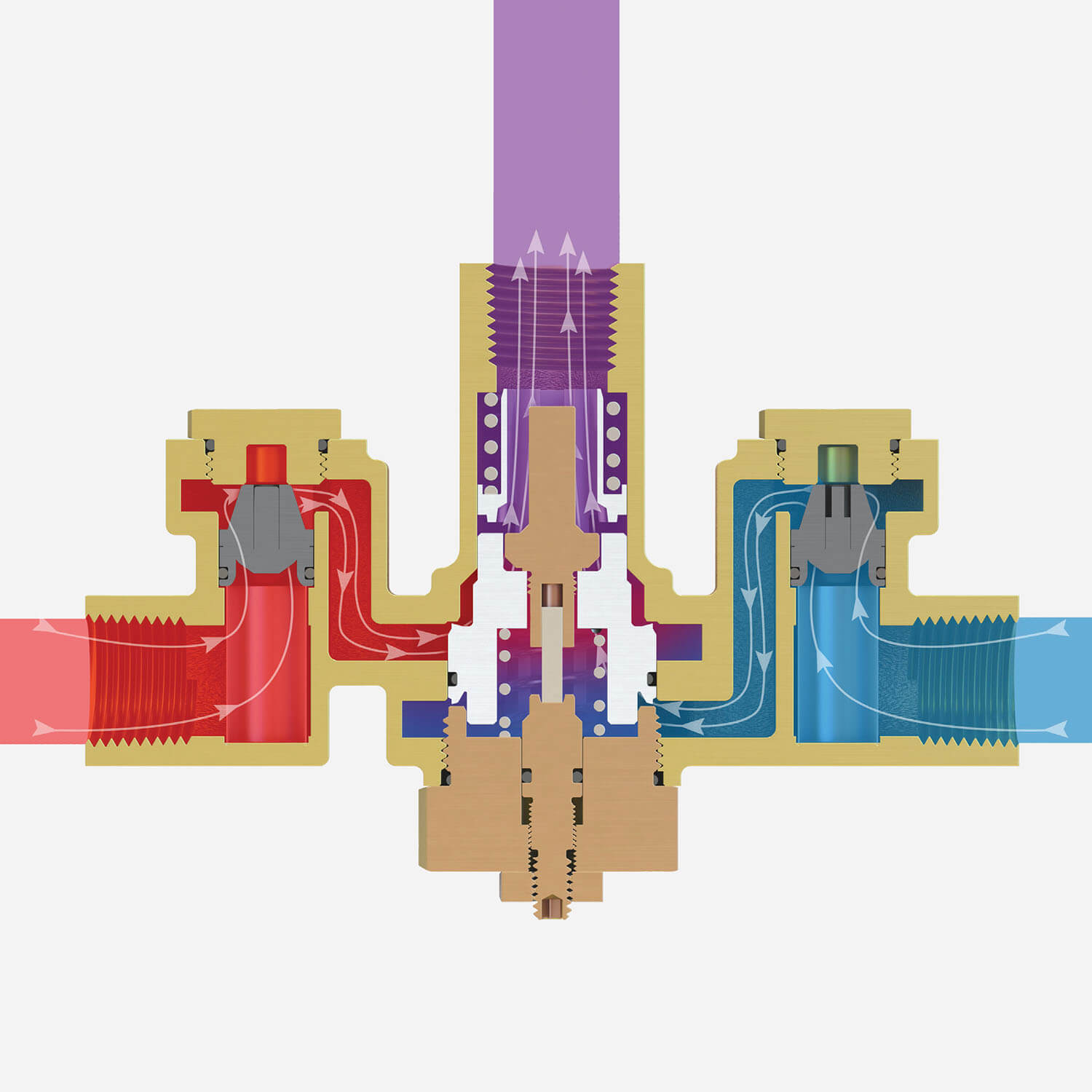

- Integral cartridge-style checks with screens to prevent backflow and filter debris from entering the valve.
- Temperature adjustment is made using an Allen wrench and a locknut on the bonnet prevent unauthorized or accidental temperature adjustment.
- Commercial quality paraffin actuator provides repeatable, reliable performance.

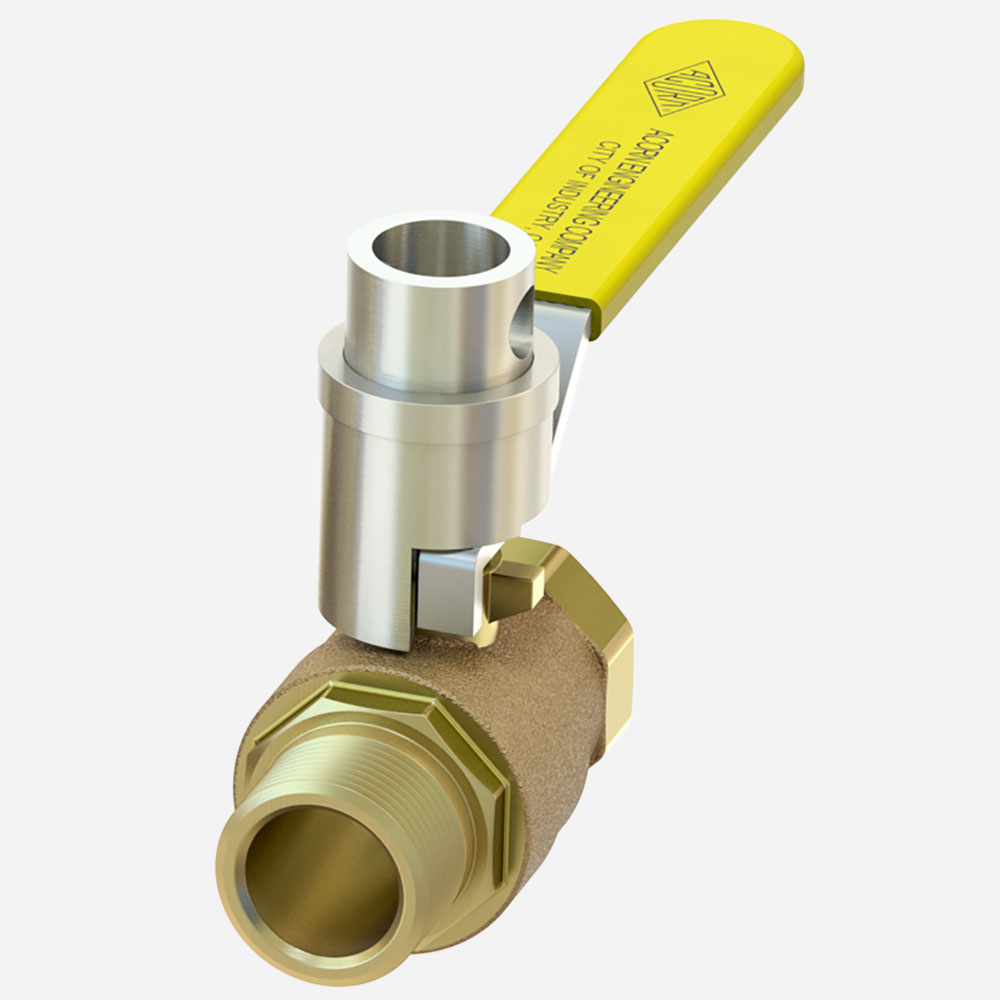

- Lockable Brass ball valves are optionally available.
- IAPMO certified to ASSE 1069.
- IAPMO certified to ASSE 1070.
- IAPMO certified to CSA B125.3.
USED IN COMMERCIAL, INSTITUTIONAL, AND INDUSTRIAL APPLICATIONS
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Installation, Operation, Maintenance Manual (including Parts Assembly Drawings) for Acorn Controls Thermostatic Lavatory/Shower Tempering Valve (ST7069) | 0 | 697 KB | ||
| | ASSE 1070 and 1069 Certified Lead Free Thermostatic Mixing Valve | 0 | 356 KB | ||
 | | 1/2" NPT Connection Brass Body Thermostatic Lavatory/Shower Tempering Valve | 0 | 280 KB | ||
| | 1/2" NPT Connection Brass Body Thermostatic Lavatory/Shower Tempering Valve | 0 | 282 KB | ||
 | | MV17 Series, ST70 Series, ST7017, ST7069, SV16, TZV Valves | 0 | 272 KB | ||
| | MV17 Series, ST70 Series, ST7017, ST7069, SV16, TZV Valves | 0 | 220 KB | ||
| | Healthcare water closets, Flushometer valves, Toilet seats, Patient care units, Healthcare showers, Healthcare bathing units, Perineal baths, Bedpan washers. SV16, ST7069 | 0 | 198 KB | ||
| | Healthcare water closets, Flushometer valves, Toilet seats, Patient care units, Healthcare showers, Healthcare bathing units, Perineal baths, Bedpan washers. SV16, ST7069 | 0 | 188 KB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 0 | 4 MB | ||
| | Kwik Ship® Brands PRV Spec Sheet (pdf) | 0 | 707 KB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Acorn ConTrols® ST7069 Flyer | 0 | 913 KB | ||
 | | ASSE 1070 and 1069 Lavatory/Shower Valve | 0 | 750 KB |
Specifications
| Product Type | ASSE 1070 Certified Lavatory Tempering, ASSE 1069 Certified Group Shower Tempering, Mixing Valve, Thermostatic Balancing Valve |
| Brand | Acorn ConTrols® |
| Material | Brass Casting with Corrosion Resistant Internal Components |
| Compliance | UPC, ASSE 1070, ASSE 1069, NSF/ANSI 61, CSA B125.3, No Lead - Federal Public Law 111-380 |
| Flow Rate | 12 GPM @ 45 PSI |
| Connections | NPT |
| Max Operating Pressure | 125 PSI (862 kPa) |
| Outlet Temp. Range | 90°F - 115°F (32°F - 46°C) |
| Max Hot Water Supply Temp. | 180°F (82°C) |
| Valve Size | 1/2" |
| Featured Valve | ST7069 |
| Patent | 9,898,017 |
