Name: Alpha® Thermostatic Mixing Valve
Brand: Acorn ConTrols
SKU: STP7069-12S

Model STP7069-12S

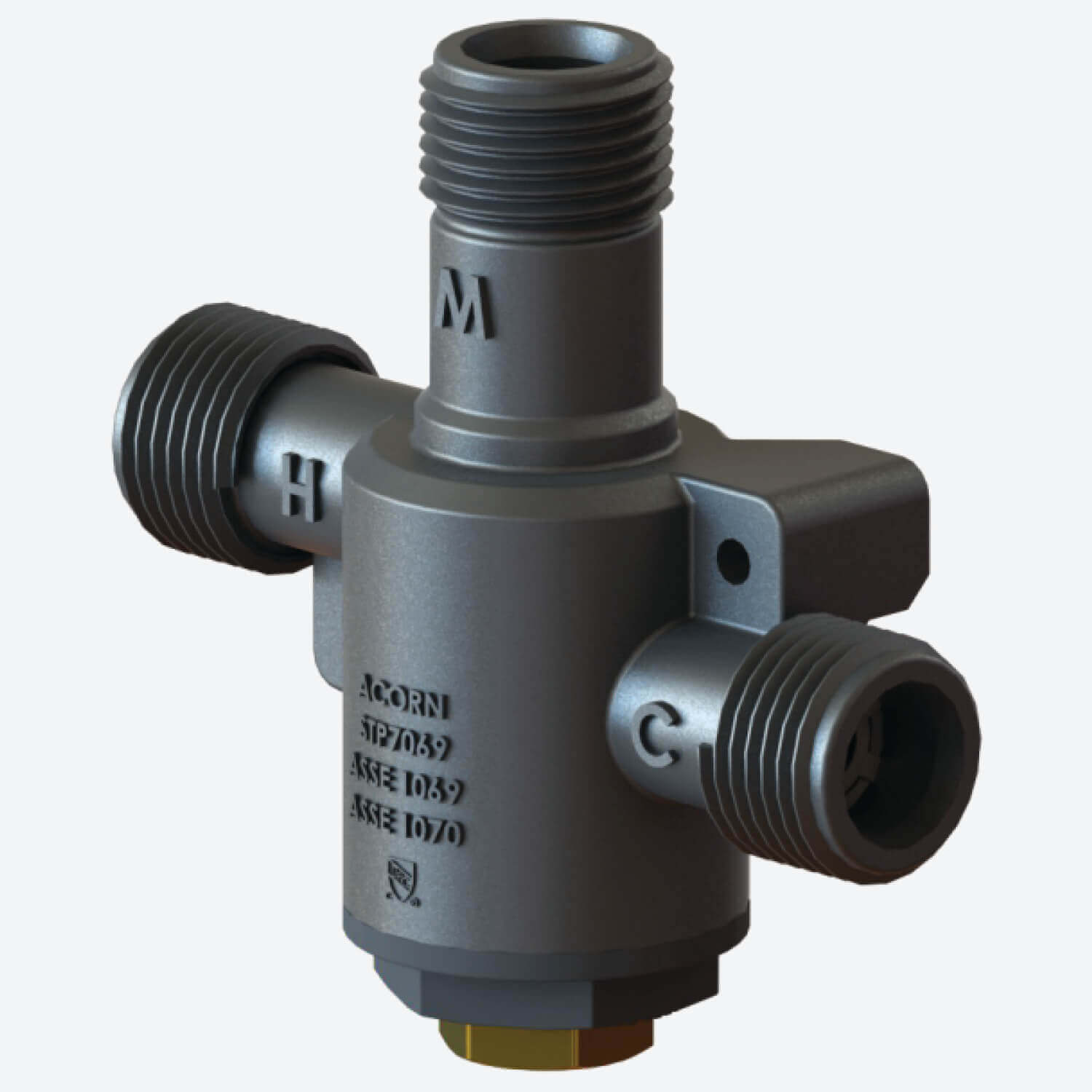

Alpha® Thermostatic Mixing Valve

ALPHA® Thermostatic Mixing Valves are installed at the point of use to temper water for sinks, baths, showers, and lavatories. These mixing valves are available in a 1/2” size for commercial, institutional, and industrial applications.

Key Benefits

Install at point of use to temper water for sinks, baths, showers, and lavatories
Accommodates up to 3 showers or 8 lavatories
0.25 GPM minimum flow is lower than that of competitor products

USED IN COMMERCIAL, INSTITUTIONAL, AND INDUSTRIAL APPLICATIONS

This lavatory termpering valve can be used with any type of faucet for maximum flexibility and can accommodate a single lavatory or up to 8 hand washing stations having a 0.5 GPM flow rate and up to 3 showers with 1.5 GPM flow restrictors.

STP7069-12 Valve Features

Lead-Free Noryl body and bonnet along with the other Lead-Free components result in a highly corrosion-resistant and lime-resistant valve

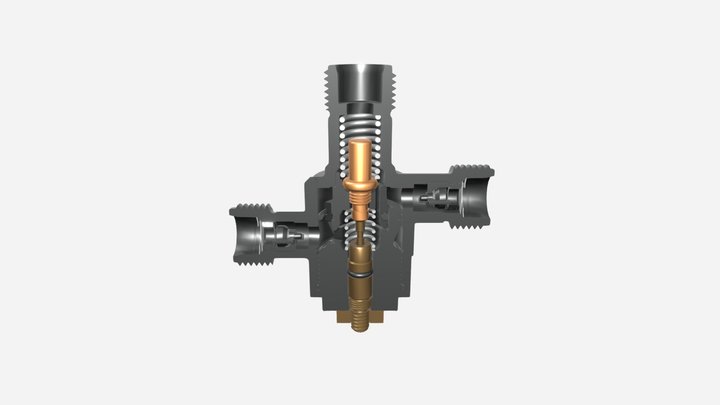

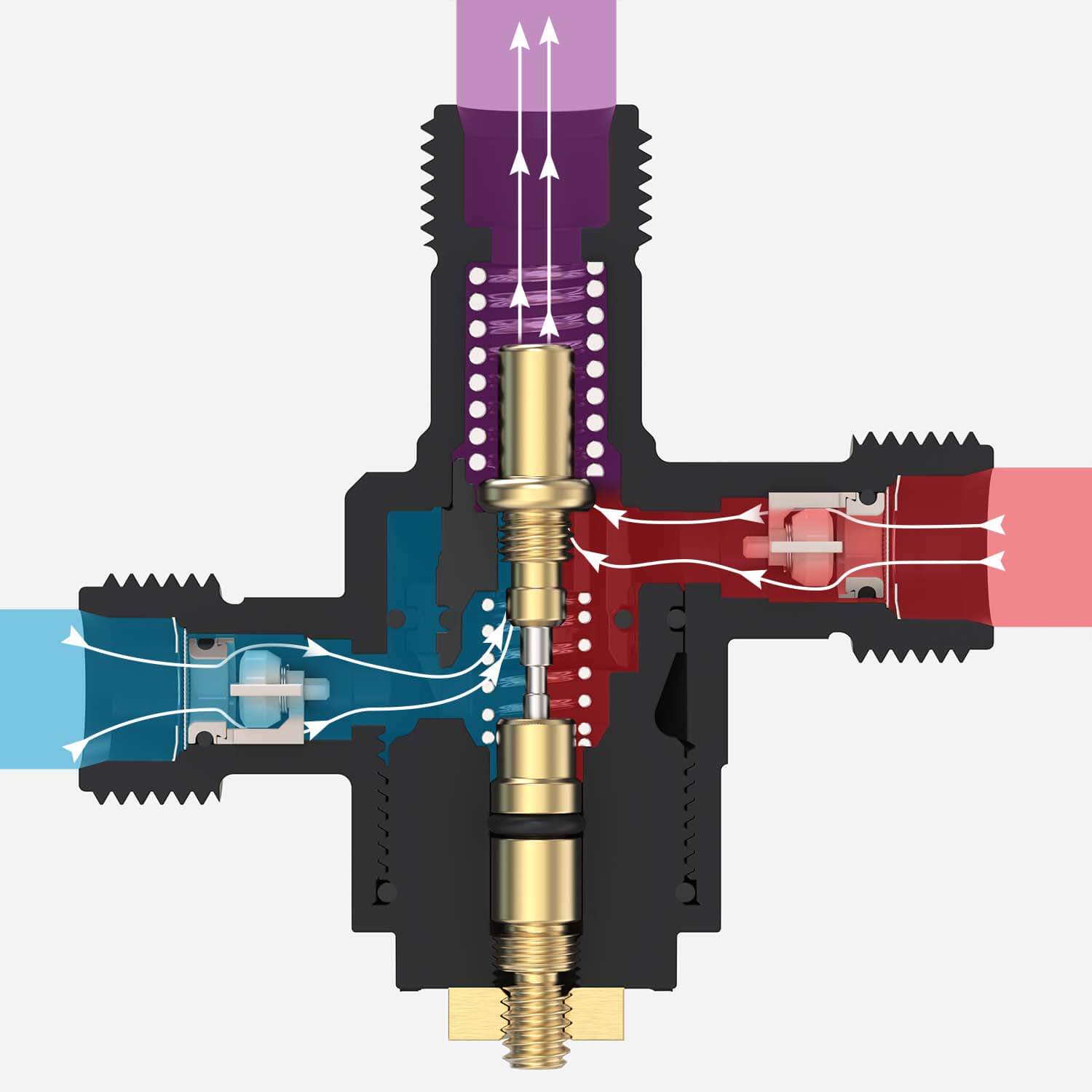

Integral cartridge-style checks prevent cross-flow and strainers filter debris from entering the valve
Temperature adjustment is made using an Allen wrench. A locknut on the bonnet prevents unauthorized or accidental temperature adjustment
Commercial quality paraffin thermal actuator provides repeatable, reliable performance
1/2" NPS inlet and outlet
Factory set to 105°F (41°C) and field adjustable
IAPMO certified to ASSE 1069
IAPMO certified to ASSE 1070

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual STP7069 Valve (pdf)	Alpha™ Mixing Valve	412 KB
Submittals	Submittal STP7069 Valve (pdf)	Alpha® Mixing Valve	417 KB
Brochures/Flyers	Acorn ConTrols® System Flyer (pdf)	See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building.	1 MB
Brochures/Flyers	Acorn ConTrols® Sales Brochure (pdf)	Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building.	5 MB
Brochures/Flyers	Acorn ConTrols® Technical Brochure (pdf)	Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves.	4 MB
Brochures/Flyers	STP7069 Alpha® Thermostatic Mixing Valve Flyer (pdf)	Acorn ConTrols® Alpha STP7069 Flyer	1 MB
Brochures/Flyers	Kwik Ship® Brands: Brochure (pdf)	Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay.	4 MB
Brochures/Flyers	Kwik Ship® Brands PRV Spec Sheet (pdf)	Kwik Ship® Brands PRV Spec Sheet (pdf)	707 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends.	27 MB
Brochures/Flyers	Kwik Ship® Brands: Acorn ConTrols® (pdf)	Save time and money with Acorn ConTrols® Kwik Ship products, with many items shipped fully or partially assembled and stock replenished weekly.	737 KB
BIM/CAD/Revit	STP7069-12S Valve (rfa)	Alpha® Thermostatic Mixing Valve	672 KB
BIM/CAD/Revit	STP7069-12S Valve (dwg/zip)	Alpha® Thermostatic Mixing Valve	456 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Mixing Valve, Thermostatic Balancing Valve
Brand	Alpha®, Acorn ConTrols®
Material	Noryl Body/Bonnet
Temperature Rating	85°F - 115°F (29°C - 46°C)
Compliance	ASSE 1069, ASSE 1070, CSA B125.3, UPC, NSF/ANSI 61, No Lead - Federal Public Law 111-380
Flow Rate	4.5 GPM @ 45 PSI
Connections	NPS
Max Operating Pressure	125 PSI (861 kPa)
Max Hot Water Supply Temp.	180°F (82°C)
Valve Size	1/2"
Patent	9,898,017
