Model SV16-LVR
Single Lever Handle Temp/Pressure Balancing Shower Valve
The model SV16-LVR ASSE 1016 (Rev. 2011) Certified Temperature/Pressure (T/P) compensating Shower Valve meets the requirements of any shower or tub/shower application where uncompromised bather safety and comfort are required.
Key Benefits
- Temperature/Pressure balancing shower valve
- Ligature resistance adds another layer of bather safety
Although designed and built for the challenges of commercial and industrial facilities, it is cost-competitive with high-end Pressure Balancing Valves. The SV16 combination T/P Valve allows even the most cost-sensitive properties to meet the budget without the scalding risk associated with type P Valves.
The trim of this valve features single lever handle trim, eliminating the possibility of a pinch of the bather's fingers while closing the valve.
SV16-LVR Shower Valve Features
- IAPMO certified at 1.25 GPM (4.7 LPM) control accuracy requirements of ASSE 1016 T/P
- Ceramic shut-off components for long-term, drip-free reliability
- Lead-Free certified DZR brass body with corrosion-resistant and lead-free internal components
- A self-contained, field reversible cartridge eliminates cross-piping and offsetting of valves in back-to-back type installation
- Commercial quality paraffin sensor provides repeatable, reliable performance
- Integral check stops to isolate individual valves for servicing and to prevent backflow
- A non-rising stem ensures the benefits of the trims even when the valve is fully open.
- With the Lever Handle Trim, it eliminates a possible pinching of the bather's fingers while closing the valve
- Single Lever trim is all-metal.
- Serviceable inlet screens
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Manual (Installation and Parts) for SV16 ASSE 1016 (Rev. 2011) Certified Temperature/ Pressure (T/P) compensating Shower Valve | 0 | 1 MB | ||
| | ASSE 1016 Compliant Shower T/P Mixing Valve [SV16 | Tri-Lever Ligature-Resistant Handle; SV16-LVR | Single Lever Handle] | 0 | 1 MB | ||
 | | ADA, Ligature Resistant, Temperature/Pressure Balancing Mixing Valve for Individual Showers - Tri-Lever Handle | 0 | 348 KB | ||
| | Lever Handle, Temperature/Pressure Balancing Mixing Valve for Individual Showers | 0 | 302 KB | ||
 | | MV17 Series, ST70 Series, ST7017, ST7069, SV16, TZV Valves | 0 | 272 KB | ||
| | MV17 Series, ST70 Series, ST7017, ST7069, SV16, TZV Valves | 0 | 220 KB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 0 | 4 MB | ||
| | Kwik Ship® Brands PRV Spec Sheet (pdf) | 0 | 707 KB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Acorn ConTrols® SV16 Flyer | 0 | 819 KB | ||

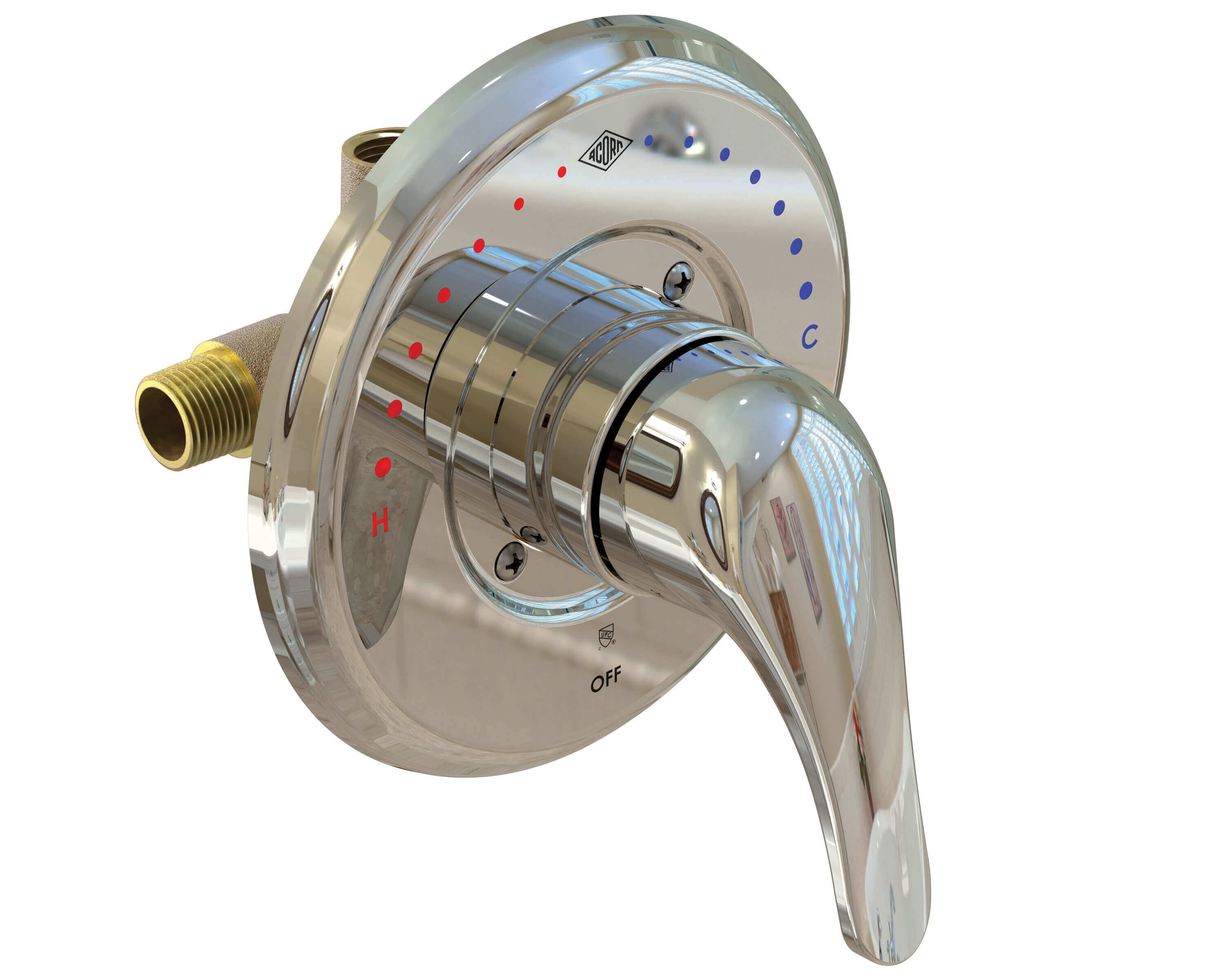

 | | ASSE 1016 Shower Valve with Lever Left View | 0 | 237 KB | ||

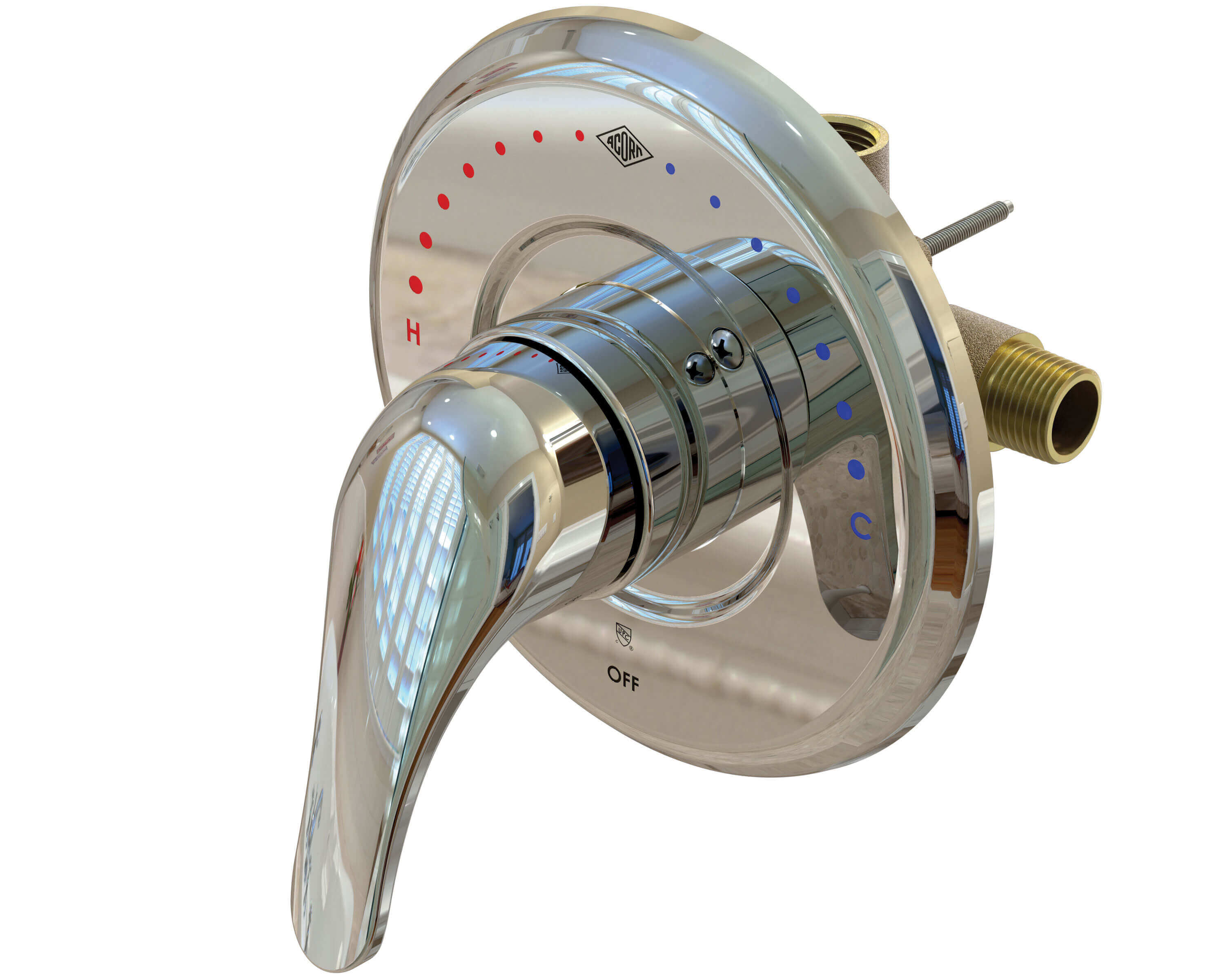

| | ASSE 1016 Shower Valve with Lever Right View | 0 | 253 KB | ||
 | | Learn how to adjust the stop limits and temperature on a Acorn ConTrols® SV16 shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Brand | Acorn ConTrols® |
| Material | Brass Casting, Chrome Plated Metal Trim, Corrosion Resistant Internal Components |
| Product Features | Single Lever Handle |
| Compliance | No Lead - Federal Public Law 111-380, ASSE 1016, UPC, CSA B125.16 |
| Flow Rate | 4 GPM (15 LPM), 150 GPM @ 45 PSI |
| Connections | 1/2" NPT Male/1/2" Sweat Inlet, 1/2" NPT Female Riser |
| Temperature Rating | 85F° - 115°F (29°C - 46°C) |
| Max Operating Pressure | 125 PSI (862 kPa) |
| Patent | (D) Acorn Engineering Co., US 10,474,170 B2 |
