Model SV16
Ligature-Resistant Temperature/Pressure Balancing Shower Valve
The model SV16 ASSE 1016 (Rev. 2011) Certified Temperature/Pressure (T/P) compensating Shower Valve meets the requirements of any shower or tub/shower application where uncompromised bather safety and comfort are required.
Key Benefits
- Temperature/Pressure balancing shower valve
- Ligature resistance adds another layer of bather safety
Although designed and built for the challenges of commercial and industrial facilities, it is cost-competitive with high-end Pressure Balancing Valves. The SV16 combination T/P Valve allows even the most cost-sensitive properties to meet the budget without the scalding risk associated with type P Valves.
USED IN COMMERCIAL, INSTITUTIONAL, AND INDUSTRIAL APPLICATIONS

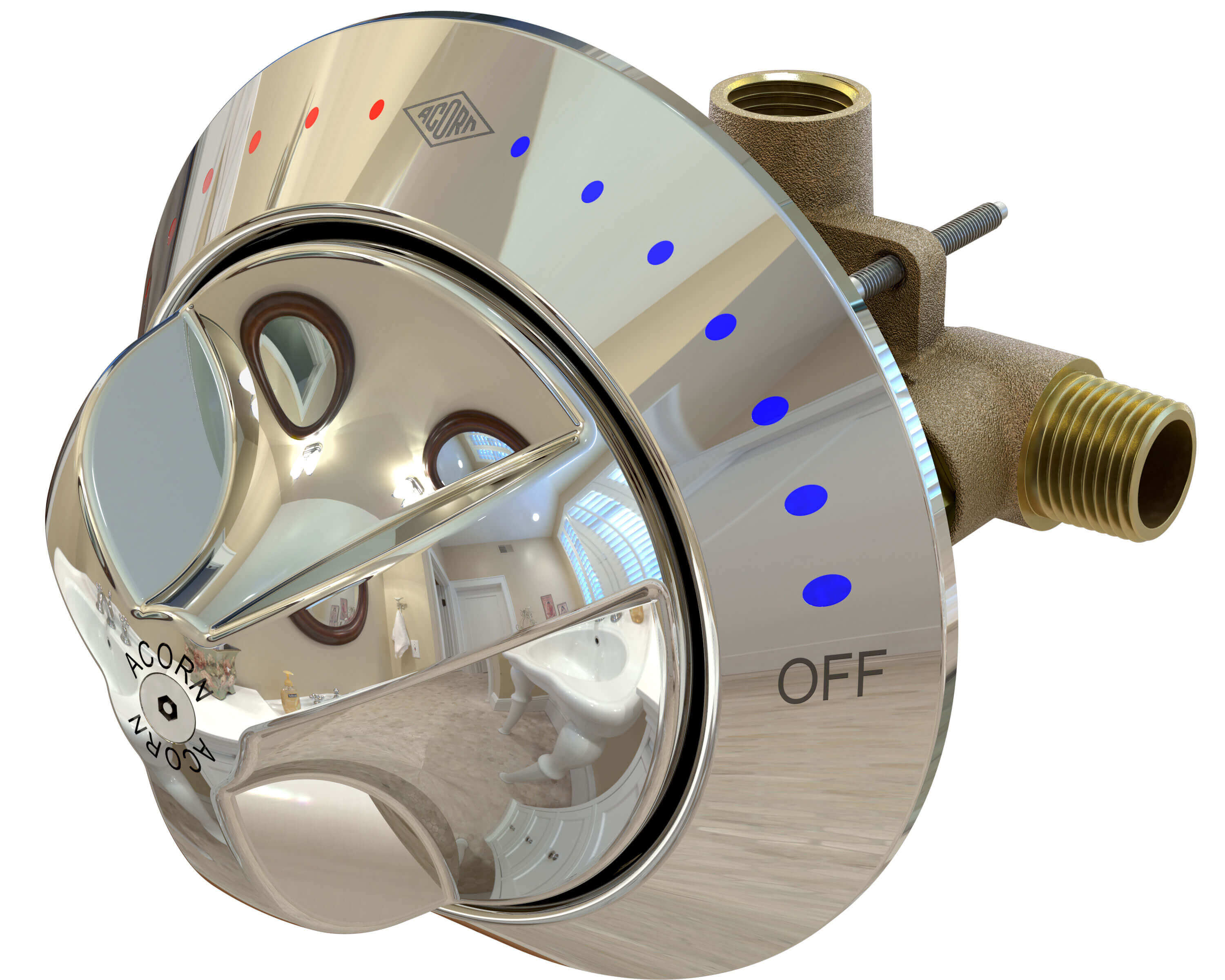

The trim of this valve features a patented ligature-resistant tri-lever design.
SV16 Shower Valve Features
- IAPMO certified at 1.25 GPM (4.7 LPM) control accuracy requirements of ASSE 1016 T/P
- Ceramic shut-off components for long-term, drip-free reliability
- Lead-Free certified DZR brass body with corrosion-resistant and lead-free internal components
- A self-contained, field reversible cartridge eliminates cross-piping and offsetting of valves in back-to-back type installation
- Commercial quality paraffin sensor provides repeatable, reliable performance
- Integral check stops to isolate individual valves for servicing and to prevent backflow
- A non-rising stem ensures the benefits of the trim even when the valve is fully open.
- Patented Tri-Lever Ligature and Vandal-Resistant or Single Lever trim are all-metal and provide ADA Compliance throughout the full operating range
- Serviceable inlet screens
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Manual (Installation and Parts) for SV16 ASSE 1016 (Rev. 2011) Certified Temperature/ Pressure (T/P) compensating Shower Valve | 0 | 1 MB | ||
| | ASSE 1016 Compliant Shower T/P Mixing Valve [SV16 | Tri-Lever Ligature-Resistant Handle; SV16-LVR | Single Lever Handle] | 0 | 1 MB | ||
 | | ADA, Ligature Resistant, Tri-Lever Handle, Temperature/Pressure Balancing Mixing Valve for Individual Showers | 0 | 284 KB | ||
| | ADA, Ligature Resistant, Temperature/Pressure Balancing Mixing Valve for Individual Showers - Tri-Lever Handle | 0 | 212 KB | ||
 | | MV17 Series, ST70 Series, ST7017, ST7069, SV16, TZV Valves | 0 | 272 KB | ||
| | MV17 Series, ST70 Series, ST7017, ST7069, SV16, TZV Valves | 0 | 220 KB | ||
| | Healthcare water closets, Flushometer valves, Toilet seats, Patient care units, Healthcare showers, Healthcare bathing units, Perineal baths, Bedpan washers. SV16, ST7069 | 0 | 198 KB | ||
| | Healthcare water closets, Flushometer valves, Toilet seats, Patient care units, Healthcare showers, Healthcare bathing units, Perineal baths, Bedpan washers. SV16, ST7069 | 0 | 188 KB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 0 | 4 MB | ||
| | Kwik Ship® Brands PRV Spec Sheet (pdf) | 0 | 707 KB | ||
| | Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends. | 0 | 7 MB | ||
| | Save time and money with Acorn ConTrols® Kwik Ship products, with many items shipped fully or partially assembled and stock replenished weekly. | 0 | 737 KB | ||
| | See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building. | 0 | 1 MB | ||
| | Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building. | 0 | 5 MB | ||
| | Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves. | 0 | 4 MB | ||
| | Acorn ConTrols® SV16 Flyer | 0 | 819 KB | ||
 | | ASSE 1016 Shower Valve with Tri-Lever Handle Right View | 0 | 358 KB | ||
 | | Adjusting the Limit Stops & Temperature on Acorn ConTrols® SV16 Shower Mixing Valve (video) | 0 | 132 KB | ||
| | Learn how to adjust the stop limits and temperature on a Acorn ConTrols® SV16 shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Brand | Acorn ConTrols® |
| Material | Brass Casting, Chrome Plated Metal Trim, Corrosion Resistant Internal Components |
| Product Features | Tri-Lever Handle |
| Compliance | ADA, ASSE 1016, No Lead - Federal Public Law 111-380, Ligature-Resistant, CSA B125.16, UPC |
| Flow Rate | 4 GPM (15 LPM), 1.25 GPM (4.7 LPM), 150 GPM @ 45 PSI |
| Connections | 1/2" NPT Male/1/2" Sweat Inlet, 1/2" NPT Female Riser |
| Temperature Rating | 85F° - 115°F (29°C - 46°C) |
| Max Operating Pressure | 125 PSI (862 kPa) |
| Patent | D697,591 S, (D) Acorn Engineering Co., US 10,474,170 B2 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BA | Accessory: Deluxe Bend Arm and Flange | ||

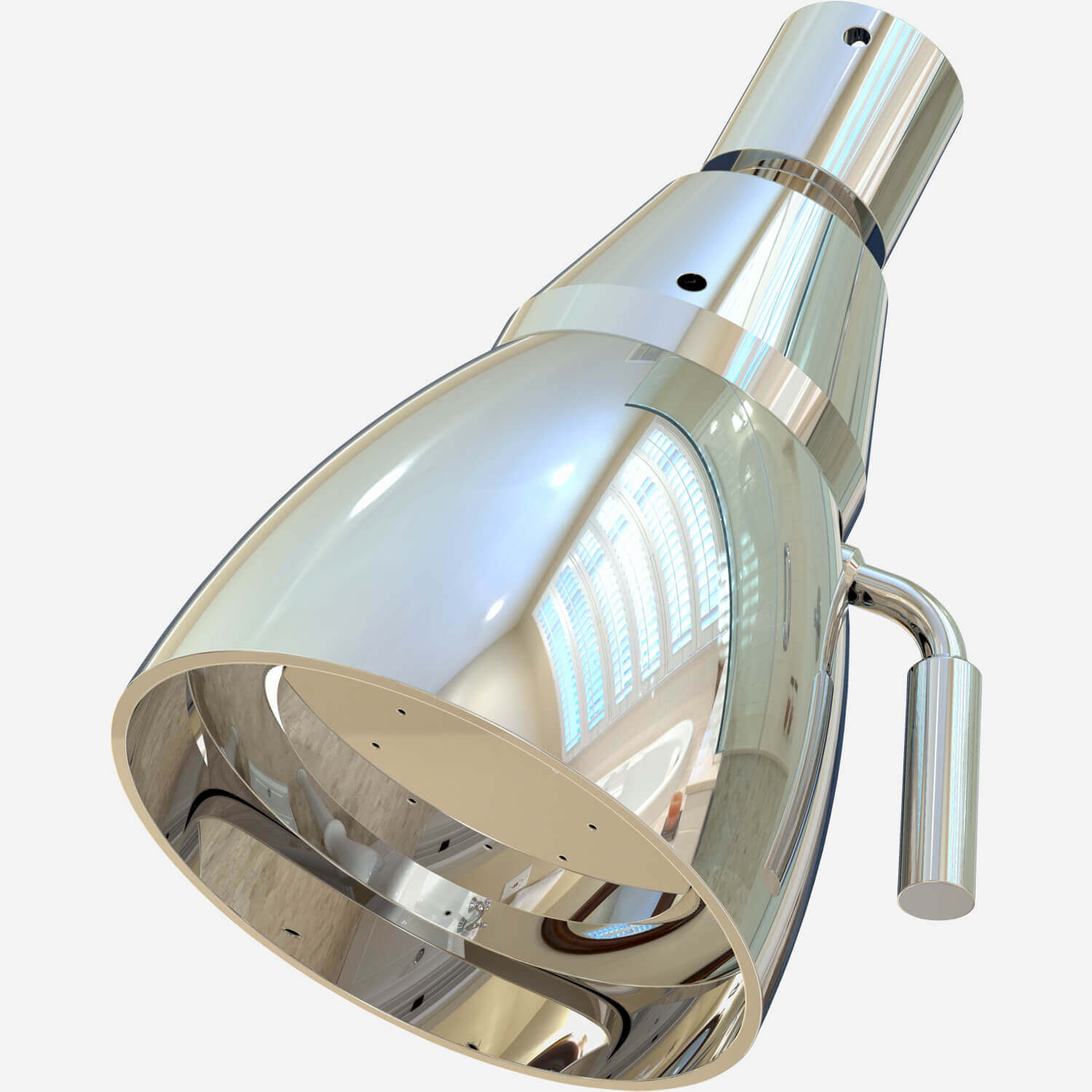

 | CSH | Accessory: Conical Ligature-Resistant Showerhead | ||

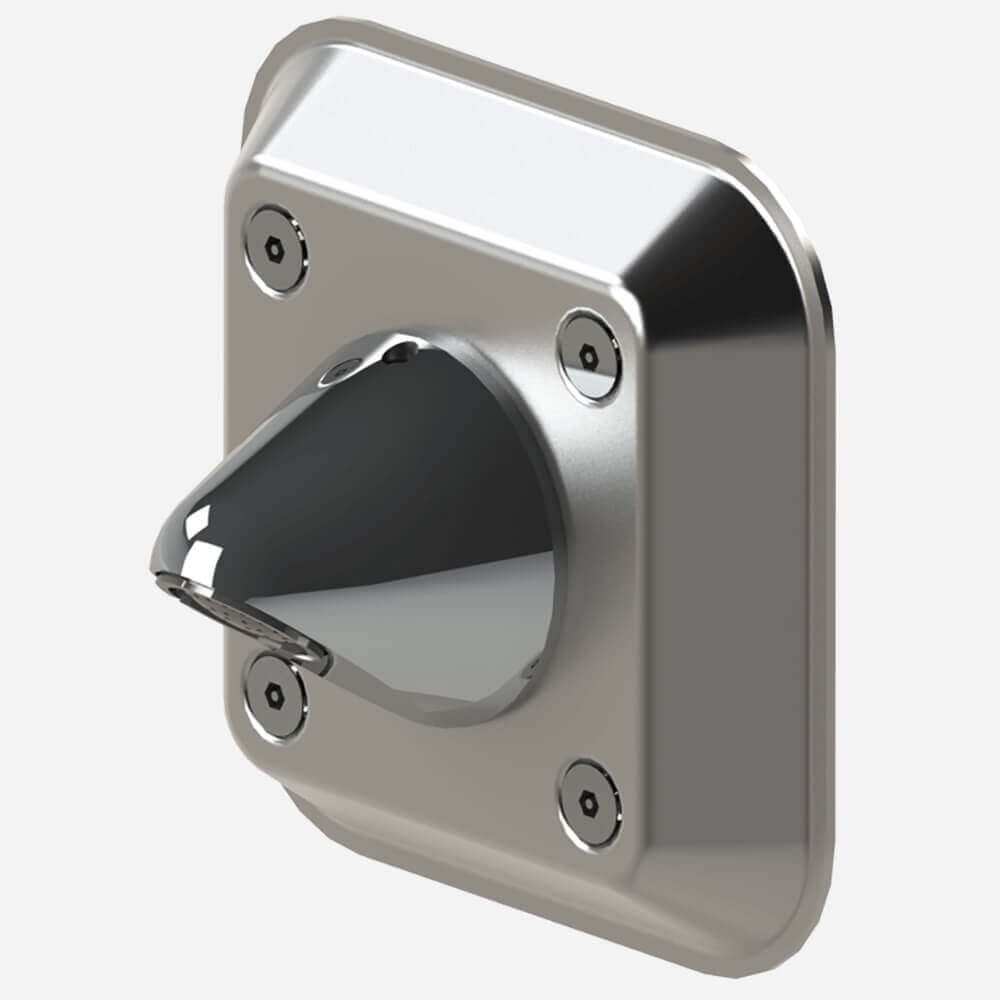

 | CSH-WSB | Accessory: Ligature-Resistant WaterSense Flanged Showerhead | ||
 | DIV | Accessory: Tri-Lever Diverter Valve | ||

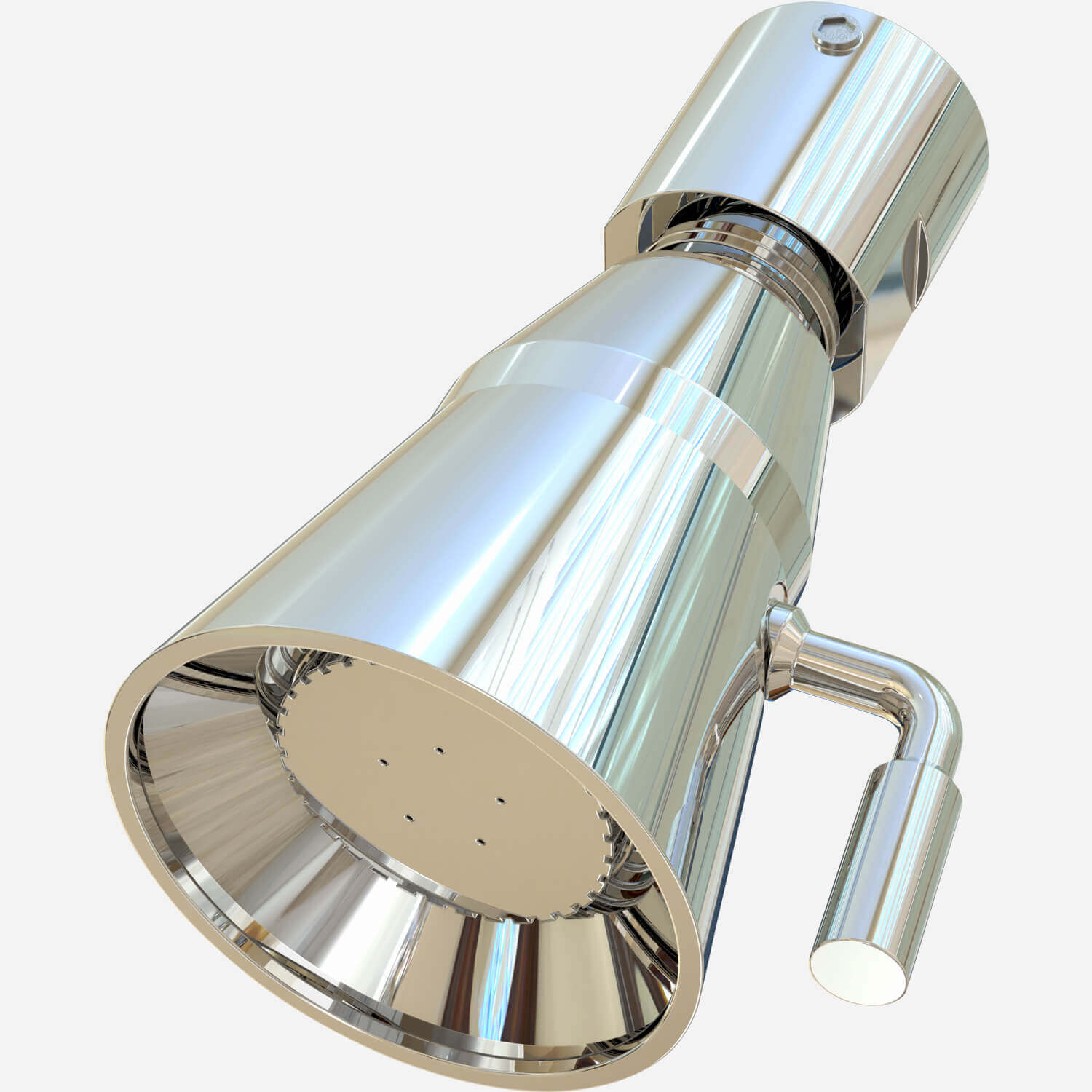

 | ESH | Accessory: Econo-Showerhead, Chrome-Plated Plastic | ||
 | EVB | Accessory: Exposed Elevated Vacuum Breaker | ||

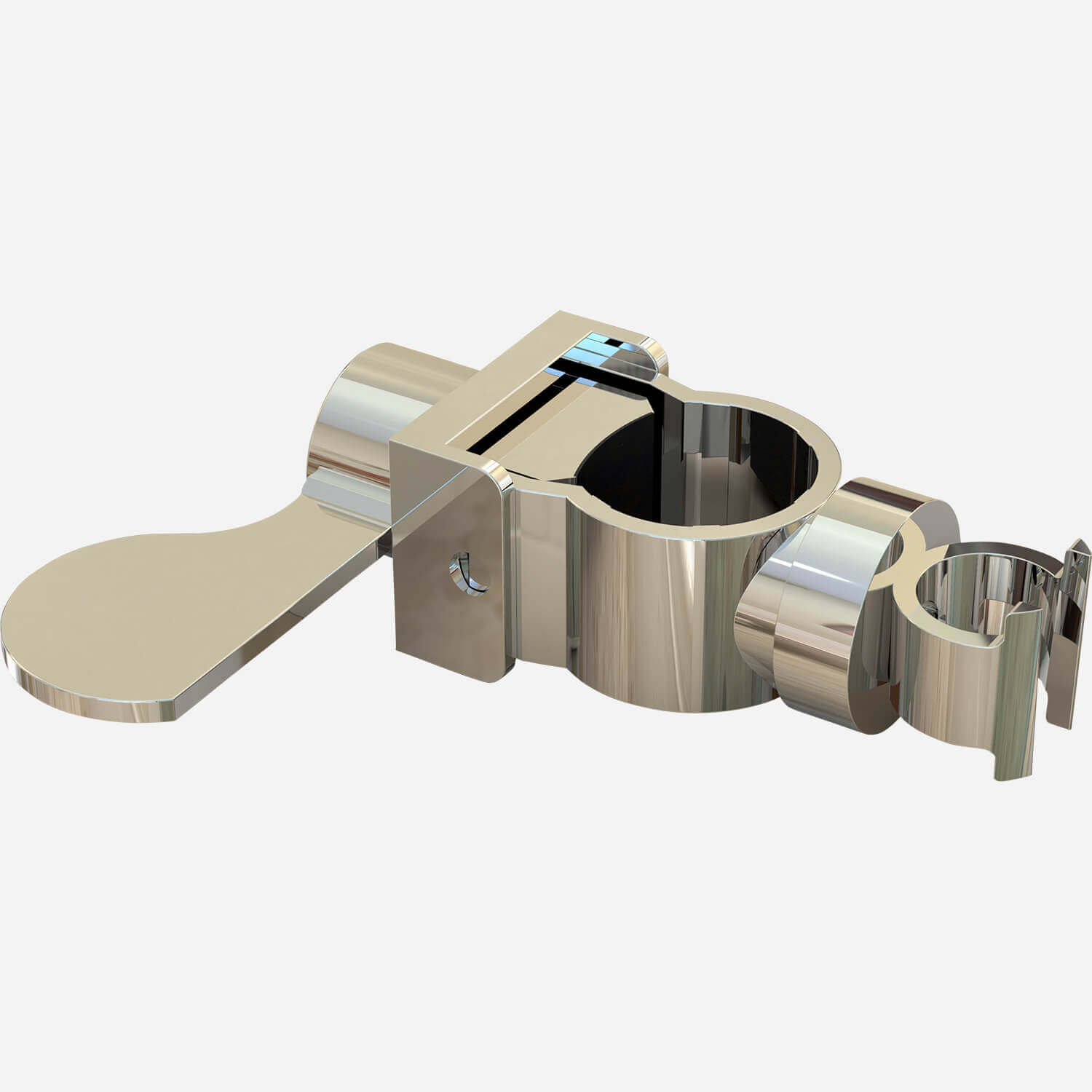

 | GR | Accessory: Glide Rail and Mount for Handheld Shower | ||
 | HH | Accessory: Plastic Handheld Shower | ||

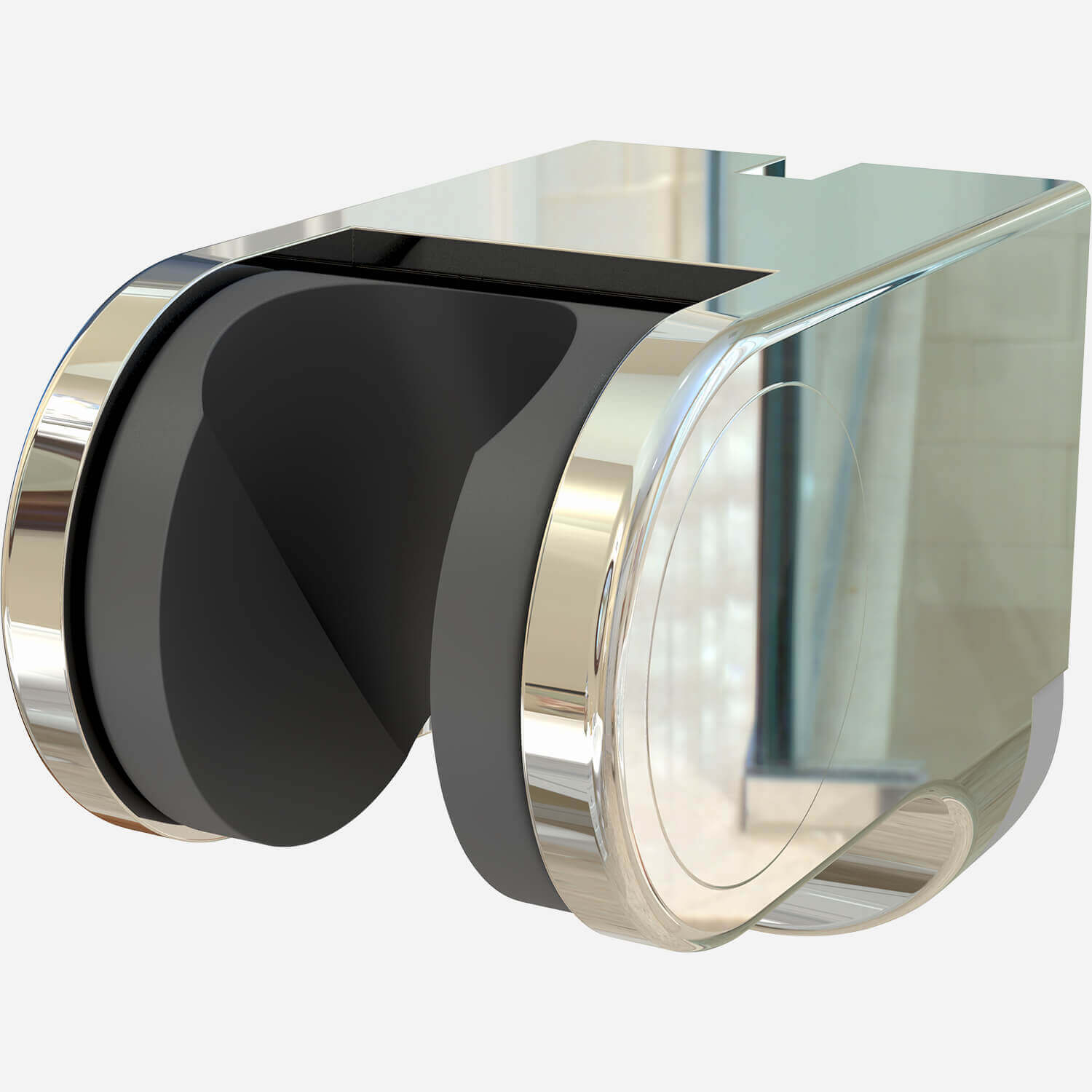

 | HHGB | Accessory: Handheld Shower Mounting Bracket on Grab Bar | ||

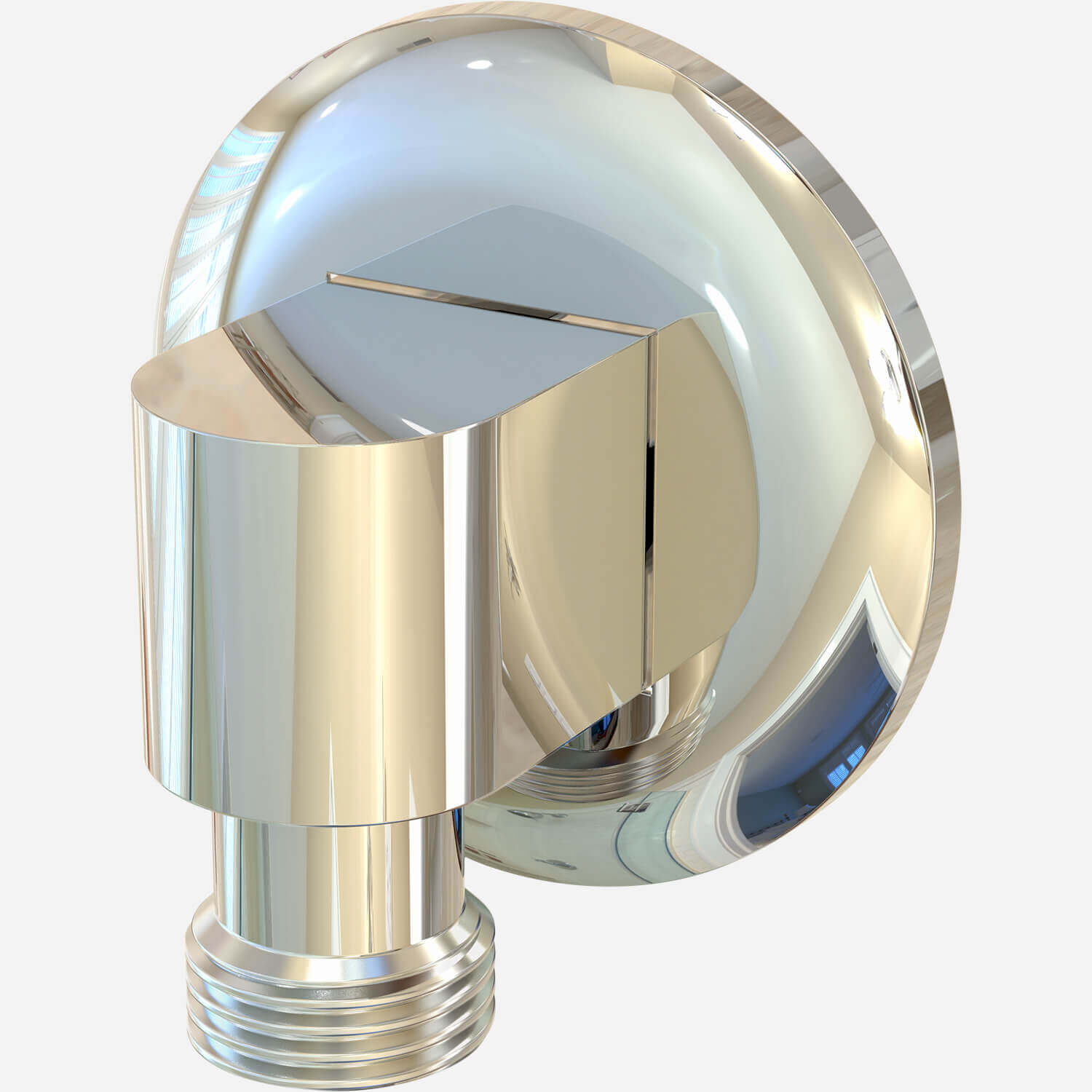

 | HHSE | Accessory: Supply Elbow for Handheld Shower | ||

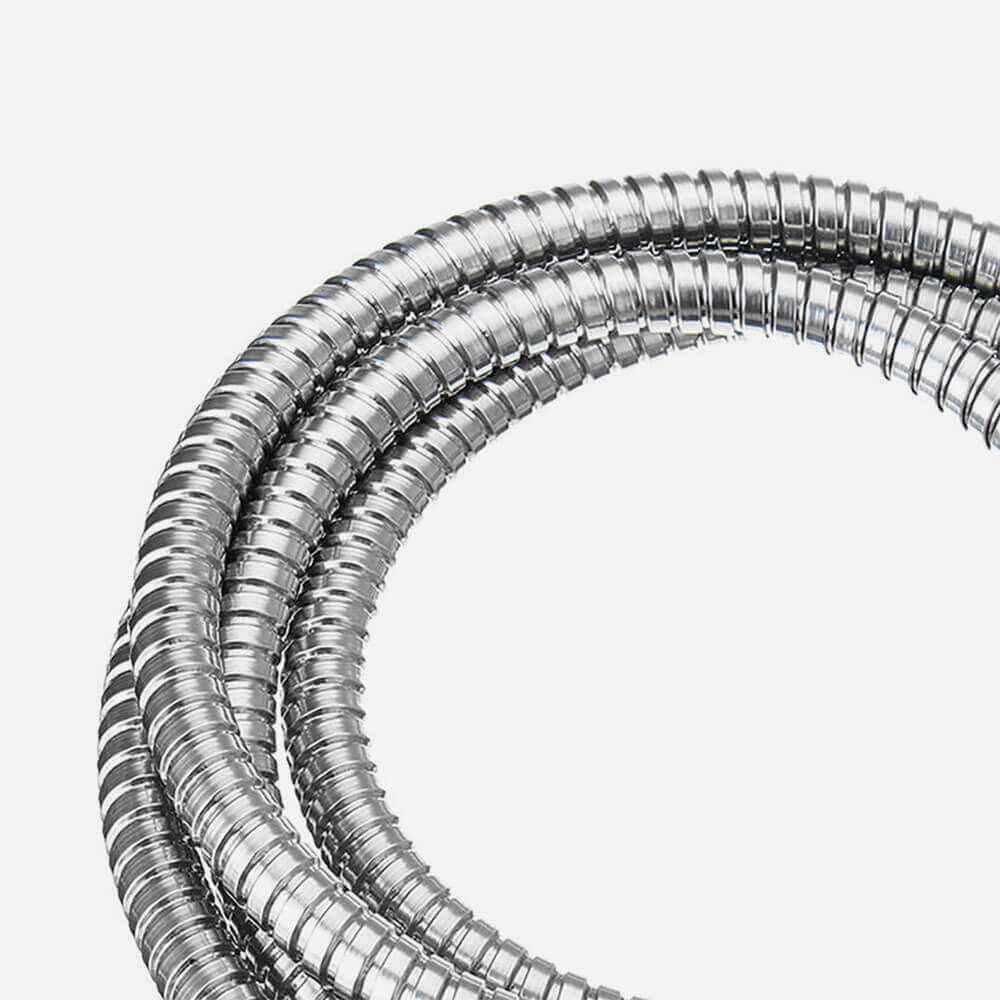

 | HHSH | Accessory: 60" Stainless Steel Hose for Handheld Shower | ||

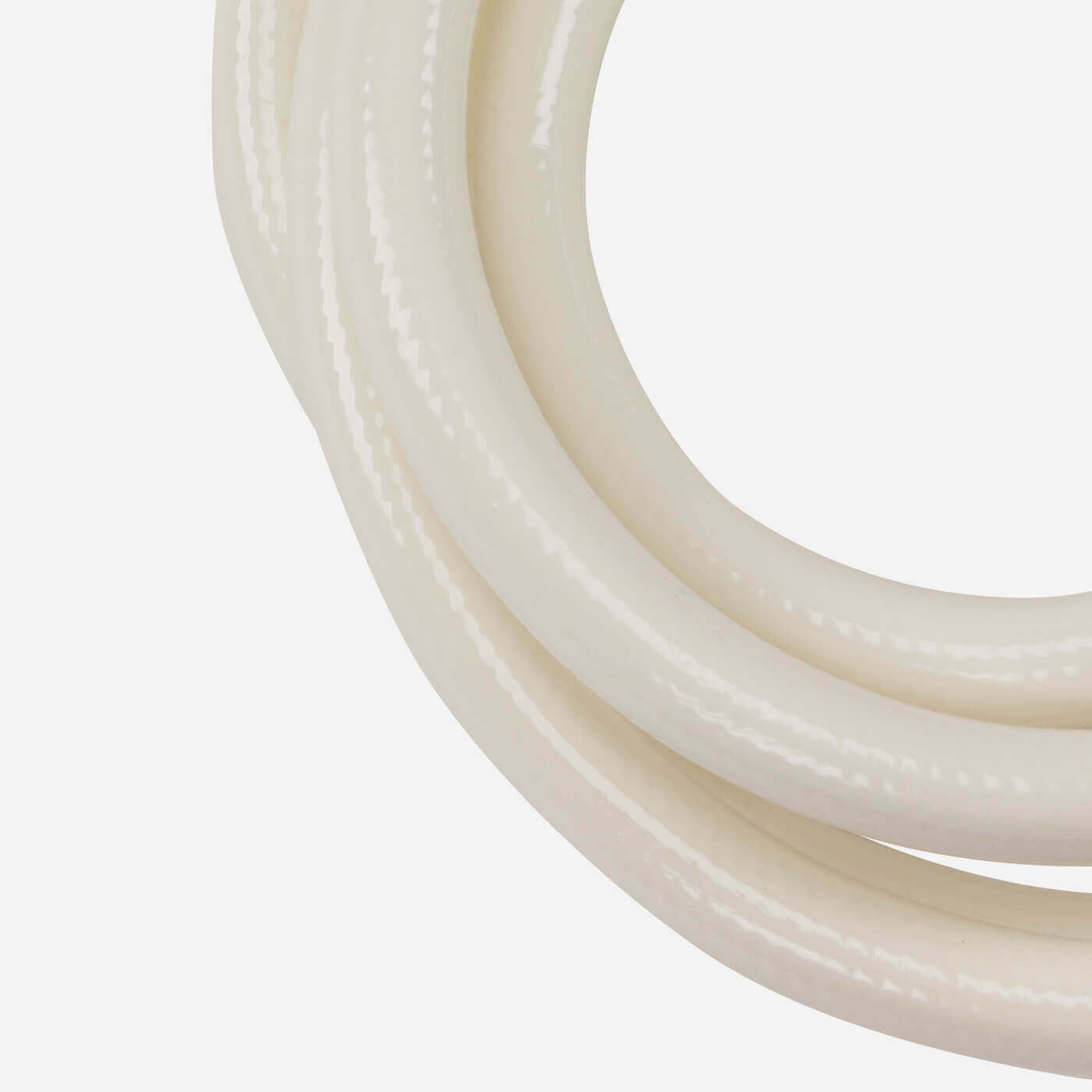

 | HHVH | Accessory: Vinyl Hose for Handheld Shower | ||
 | HHWB | Accessory: Wall Mounting Bracket for Handheld Shower | ||

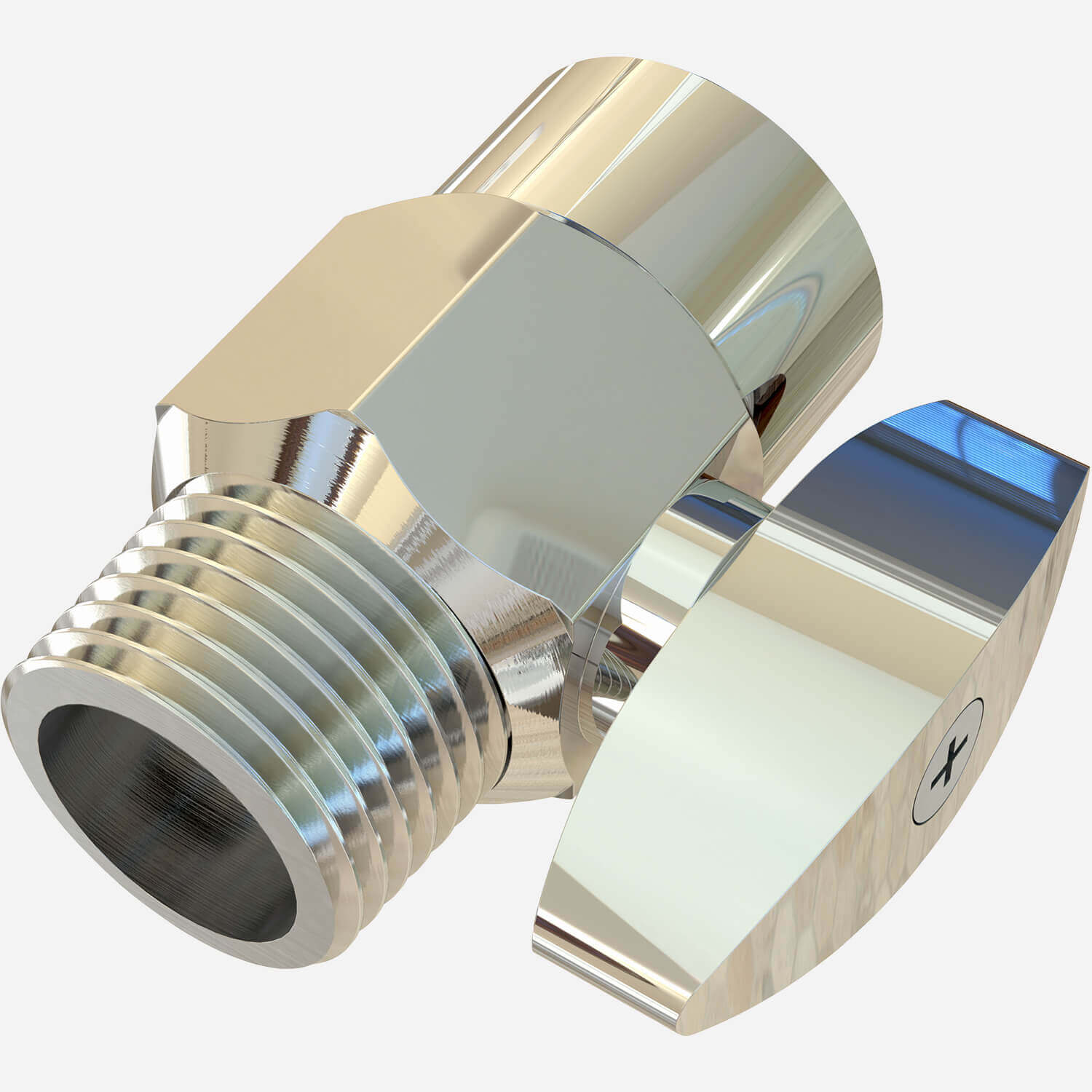

 | HV | Accessory: Hand Volume Control | ||

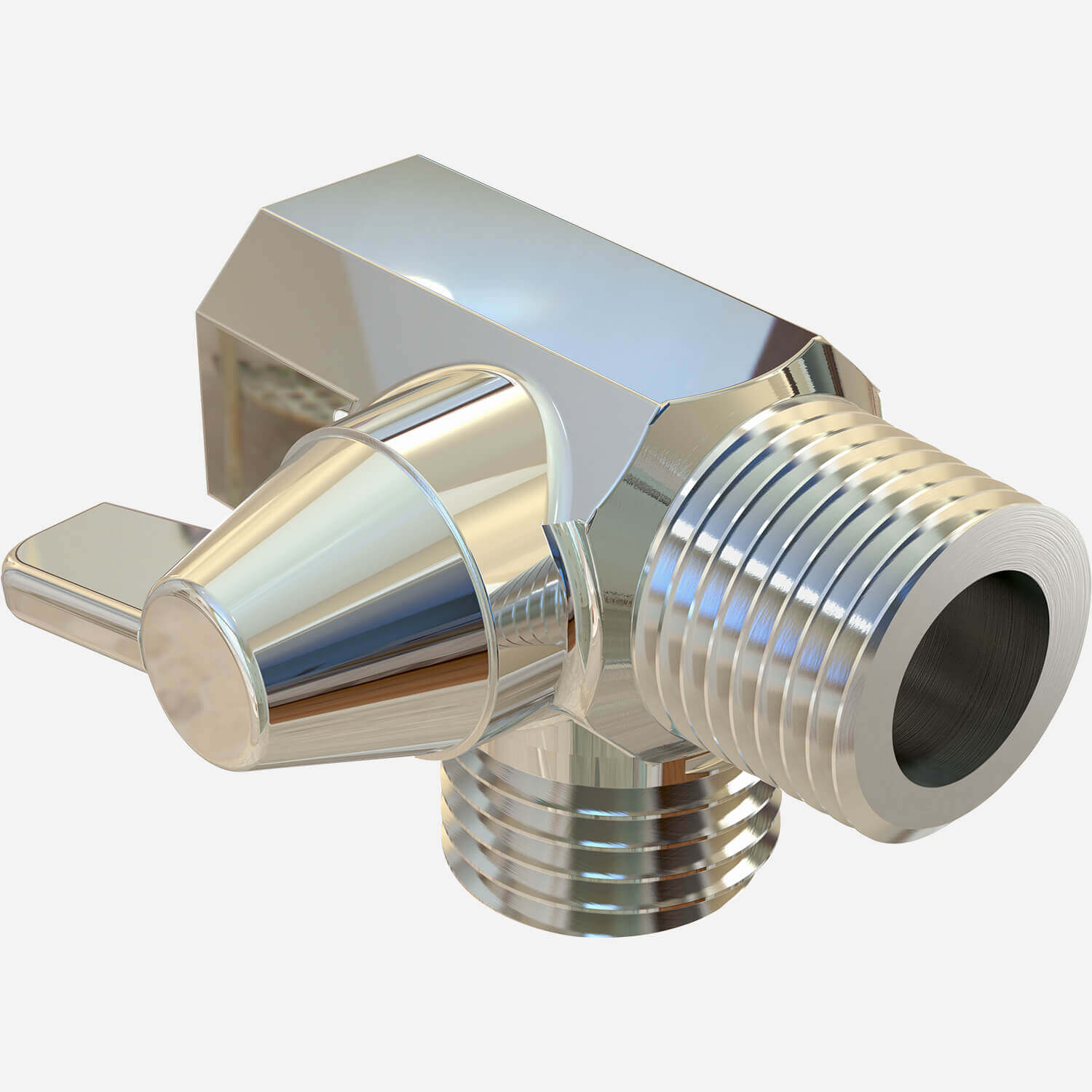

 | IDIV | Accessory: Inline 3 Port Diverter Valve | ||

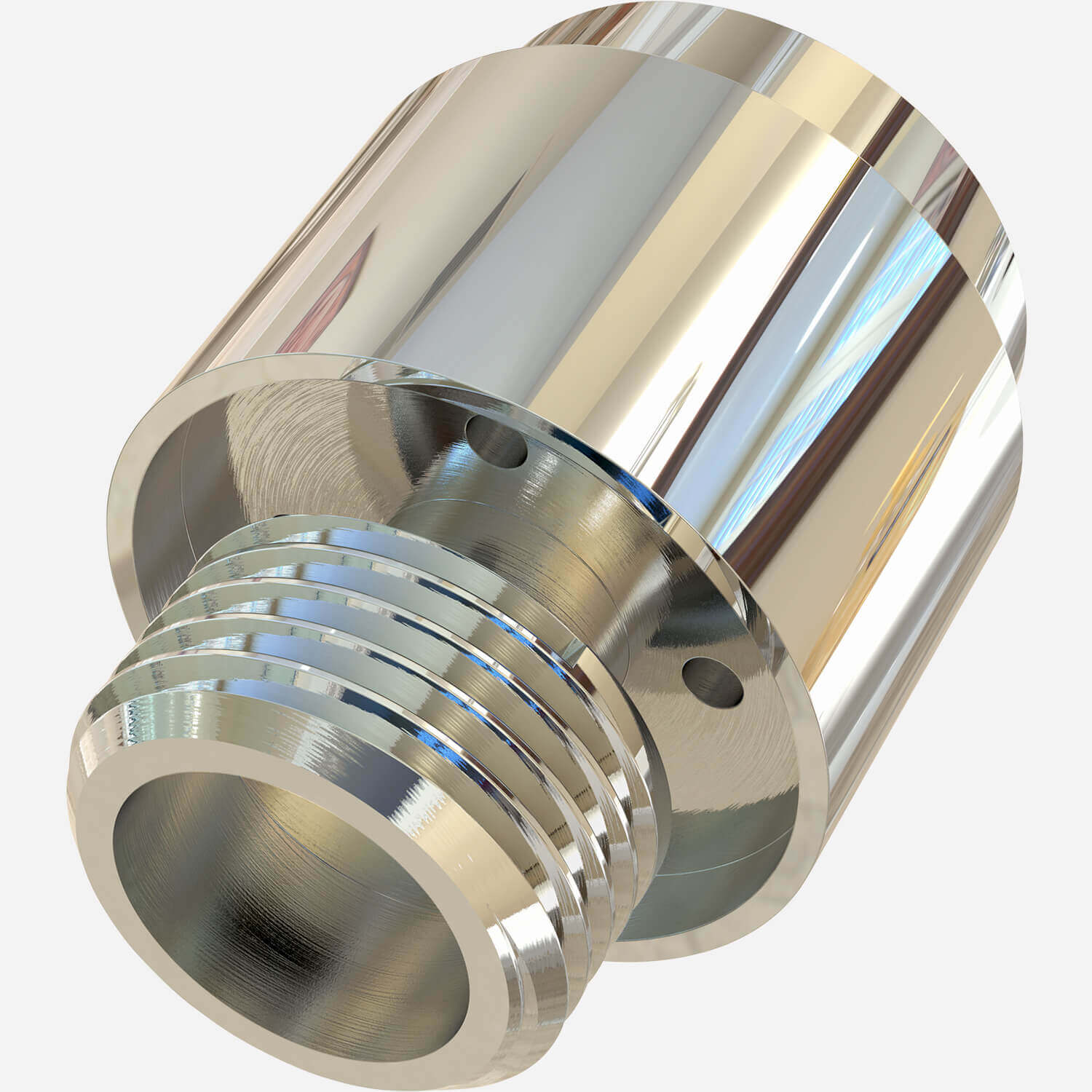

 | IVB | Accessory: Inline Vacuum Breaker | ||
 | LSH | Accessory: Large Showerhead, Chrome Plated Brass | ||
 | SH | Accessory: Small Showerhead, Chrome Plated Brass | ||

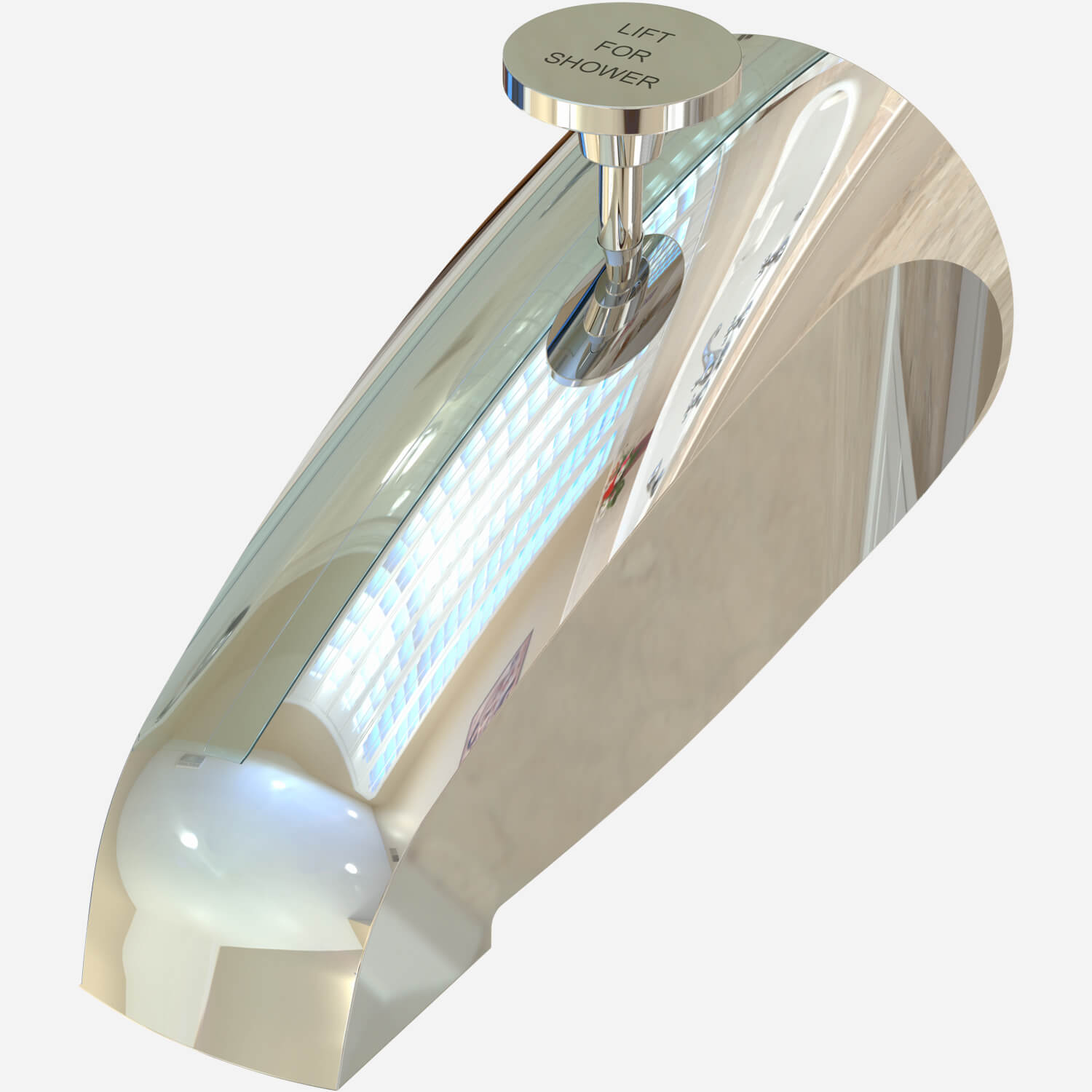

 | TUB1 | Accessory: Tub Spout, Chrome-Plated Brass with Diverter, 3/4" NPT, Adapter for 1/2" NPT | ||

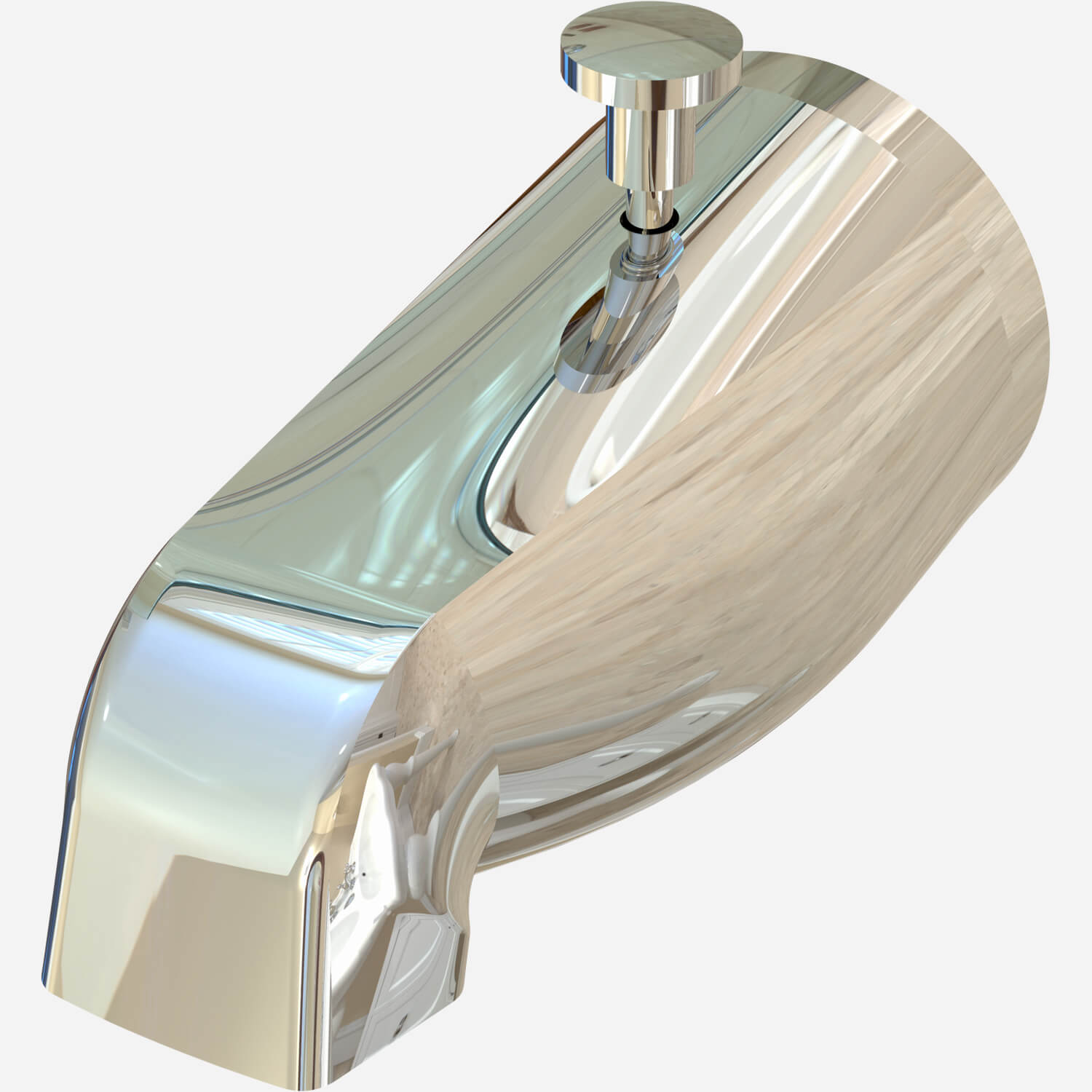

 | TUB2 | Accessory: Tub Spout, Chrome-Plated Zinc with Diverter, 3/4" NPT, Adapter for 1/2” NPT | ||

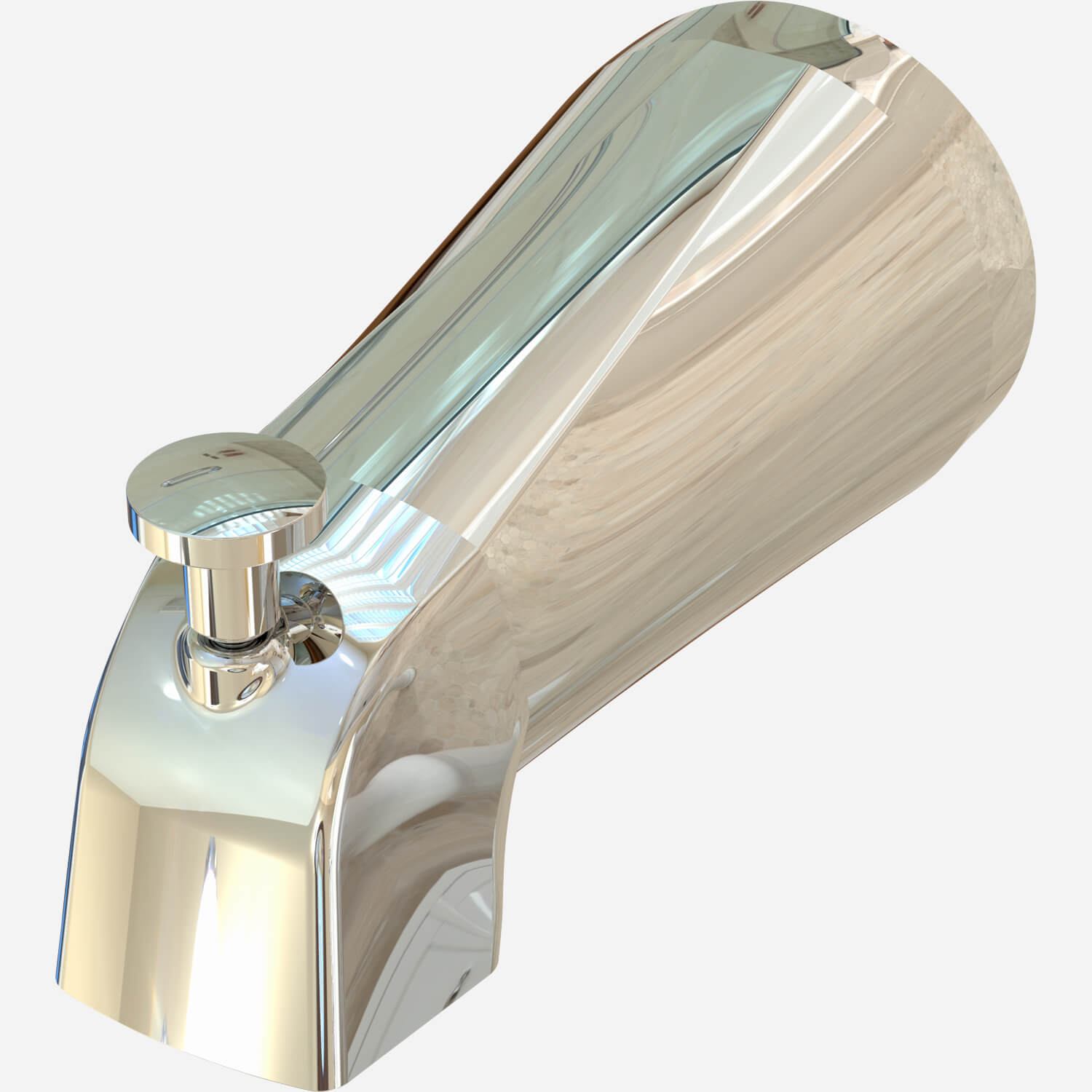

 | TUB3 | Accessory: Tub Spout, Chrome-Plated Zinc with Diverter, 1/2" Slip Fit Connection | ||

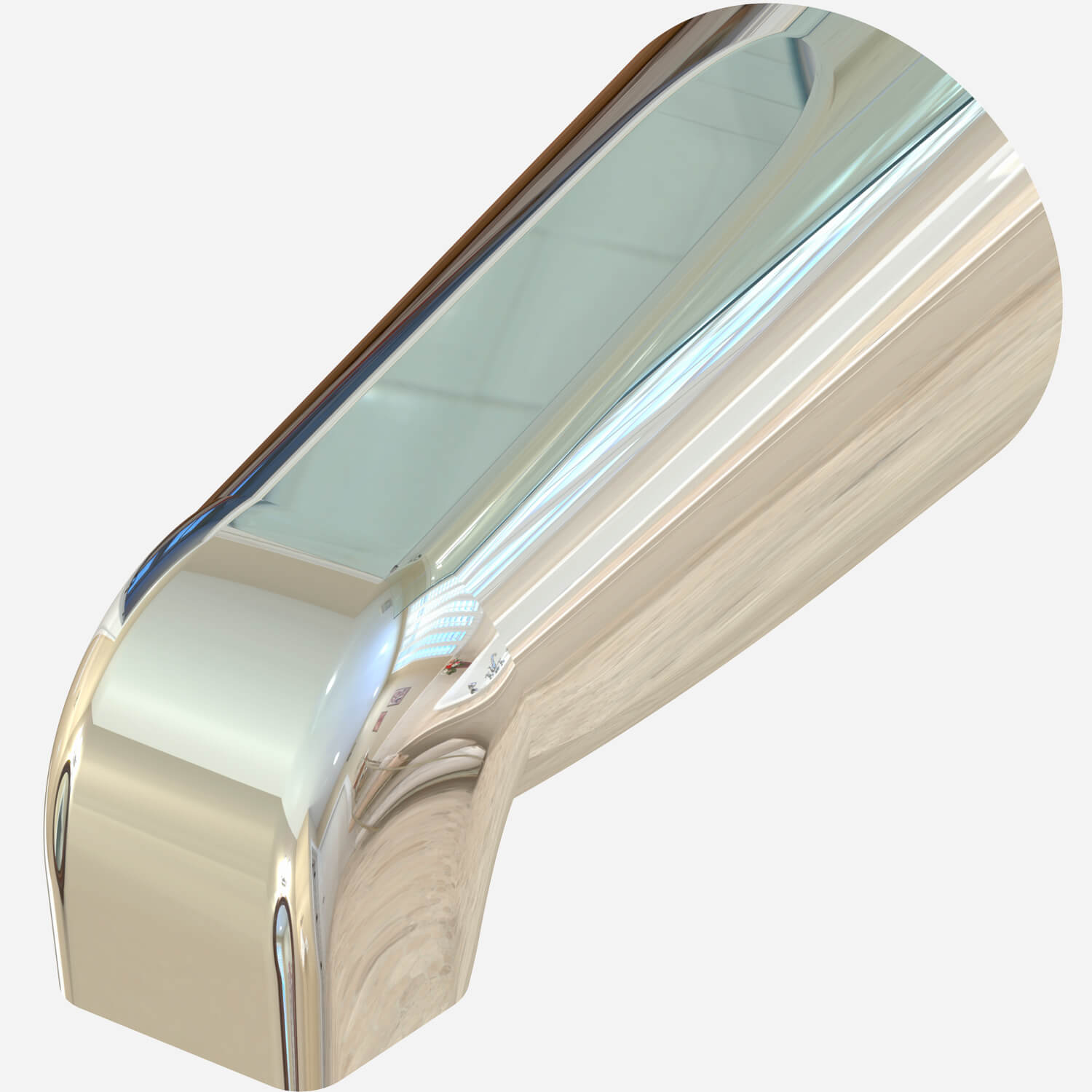

 | TUB4 | Accessory: Tub Spout, Chrome Plated Zinc, NO Diverter, 1/2" NPT Connection |
