Pressure Reducing Valves with Integral “Y” Strainer
Series YRV03 Water Pressure Reducing Valves with integral “Y” Strainer are designed to regulate incoming potable water pressure to protect plumbing system components and reduce water consumption. The valve is suitable for supply pressures up to 400psi (27.6 bar), is factory set to 50 psi and may be adjusted from 10-75psi (69-517 kPa). Optionally available with factory preset pressure to suit customer requirements (must specify). All parts, including the strainer, are quickly and easily serviceable without removing the valve from the line. The Integral Bypass prevents excessive downstream pressure caused by thermal expansion. The YRV03 is designed to provide longevity with smooth, quiet operation under a wide range of inlet pressure and flow variations.
Available Sizes
PRV used in residential, commercial, institutional, and industrial applications
All parts, including the strainer, are quickly and easily serviceable without removing the valve from the line. The Integral Bypass prevents excessive downstream pressure caused by thermal expansion. The RV03 is designed to provide longevity with smooth, quiet operation under a wide range of inlet pressure and flow variations.
Features
- All Stainless Steel Hardware eliminates need for “Sealed Cage”
- Integral 300 Series Stainless Steel Strainer
- Integral “Y” Strainer with 20 x 20 Stainless Steel Mesh
- Available Valve Sizes 1/2" to 2"
- Sweat, NPTF, PEX-A, PEX-B, Press Fit and CPVC Adapter Kits
- Brass Body and Internal Stem
- Lead Free* Construction to meet NSF-61Requirements
- EPDM Seals and Reinforced Rolling Diaphragm
- Available with Engineered UV Resistant Thermoplastic, Brass or Steel Bonnet
- Optional Pressure Gauge Available
- Valve Bodies and Gauge Adapters have female NPT threads to allow for installation without optional adapter(s).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Pressure Reducing Valves with Integral “Y” Strainer | 0 | 1 MB | ||
| | Pressure Reducing Valves with Integral “Y” Strainer | 0 | 705 KB | ||
| | Pressure Reducing Valve YRV03 Flyer (pdf) | 0 | 916 KB | ||
| | Kwik Ship® Brands PRV Spec Sheet (pdf) | 0 | 707 KB | ||
| | Acorn ConTrols® PRV Flyer (pdf) | 0 | 1 MB |
Specifications
| Compliance | ASSE 1003, CSA B356-10, No Lead - Federal Public Law 111-380, NSF/ANSI 61, UPC |
| Temperature Rating | 180°F |
| Pressure Rating | 400 PSI |
| Valve Size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Connections | Sweat, NPTF, CPVC, PEX-A, PEX-B, Press Fit |
| Product Type | Pressure Reducing Valve |
Models
YRV03 - -
Bonnet Material 1st Cell
- B | Brass
- P | Plastic
- S | Steel
Spring Tension 2nd Cell
- 0 | Standard Pressure
- H | High Pressure
Valve Size 3rd Cell
- 1 | 1/2"
- 2 | 3/4"
- 3 | 1"
- 4 | 1-1/4"
- 5 | 1-1/2"
- 6 | 2"
Inlet Adapter Type 4th Cell
- 0 | None
- A | Sweat
- B | NPTF
- C | PEX-B
- D | CPVC
- E | Press Fit
- F | PEX-A
Outlet Adapter Type 5th Cell
- 0 | None
- A | Sweat
- B | NPTF
- C | PEX-B
- D | CPVC
- E | Press Fit
- F | PEX-A
Presure Gauge 6th Cell
- 0 | No Gauge Adapter
- G | Adapter with 0-20 psi Gauge
- T | Adapter with 1/4" Plug (No Gauge)
Optional Preset 7th Cell
Indicate Factory Preset Pressure required when it differs from the Standard Factory Preset of 50 PSI.
Sample Configurations

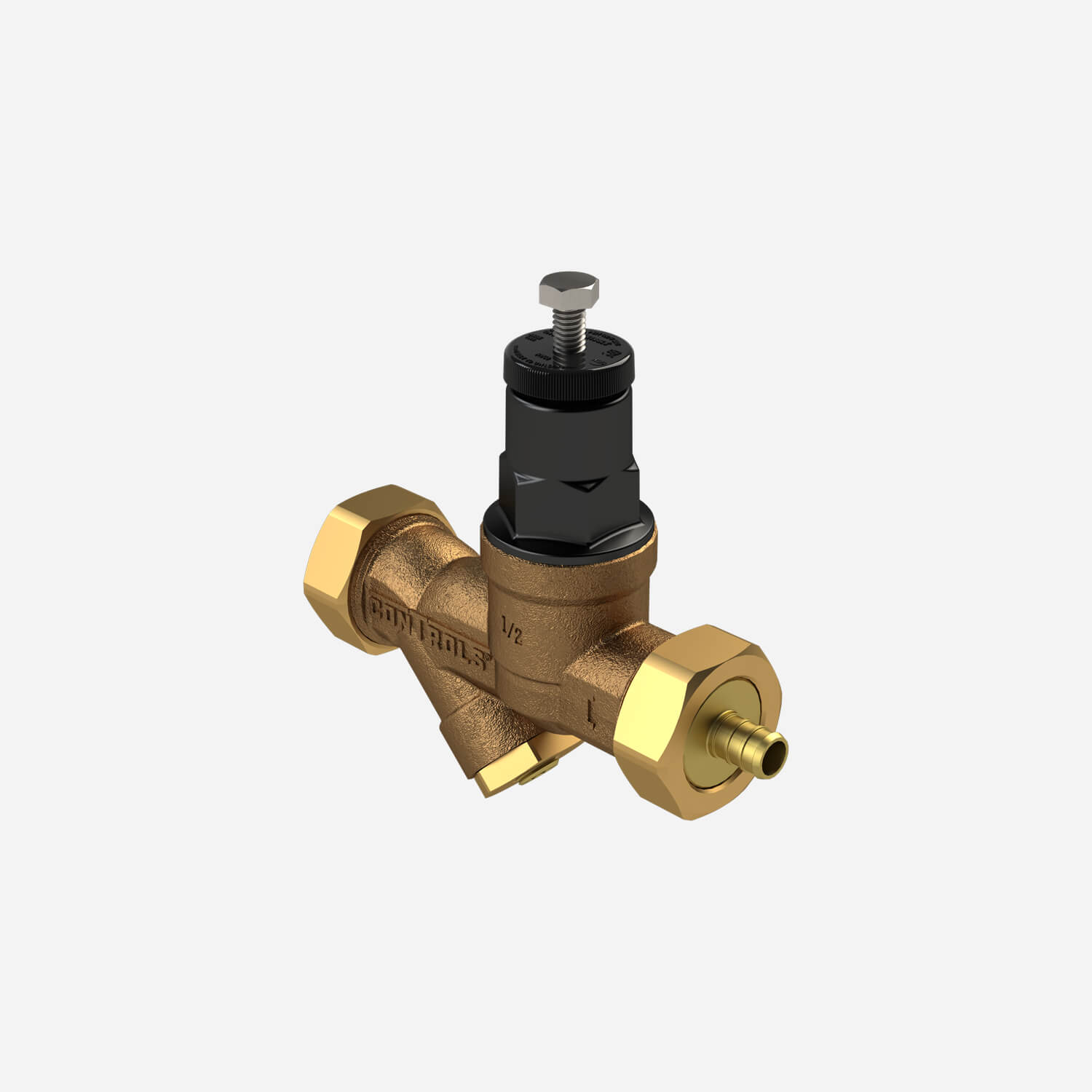

YRV03SH-1CC0 Steel Bonnet High Pressure Spring 1/2" Valve Size PEX-B Inlet Adapter PEX-B Outlet Adapter No Gauge Adapter

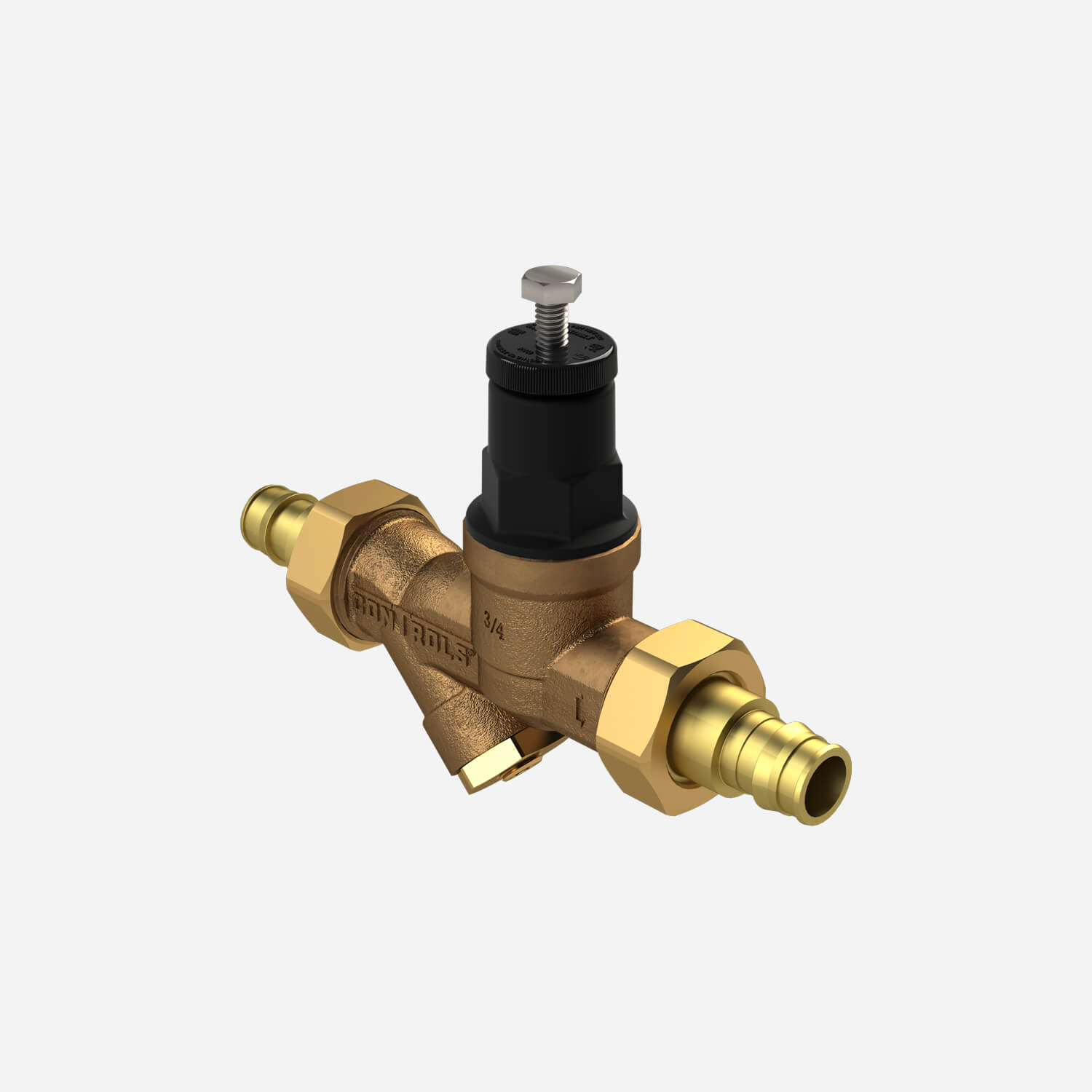

YRV03P0-2FF0 Plastic Bonnet Standard Pressure Spring 3/4" Valve Size PEX-A Inlet Adapter PEX-A Outlet Adapter No Gauge Adapter

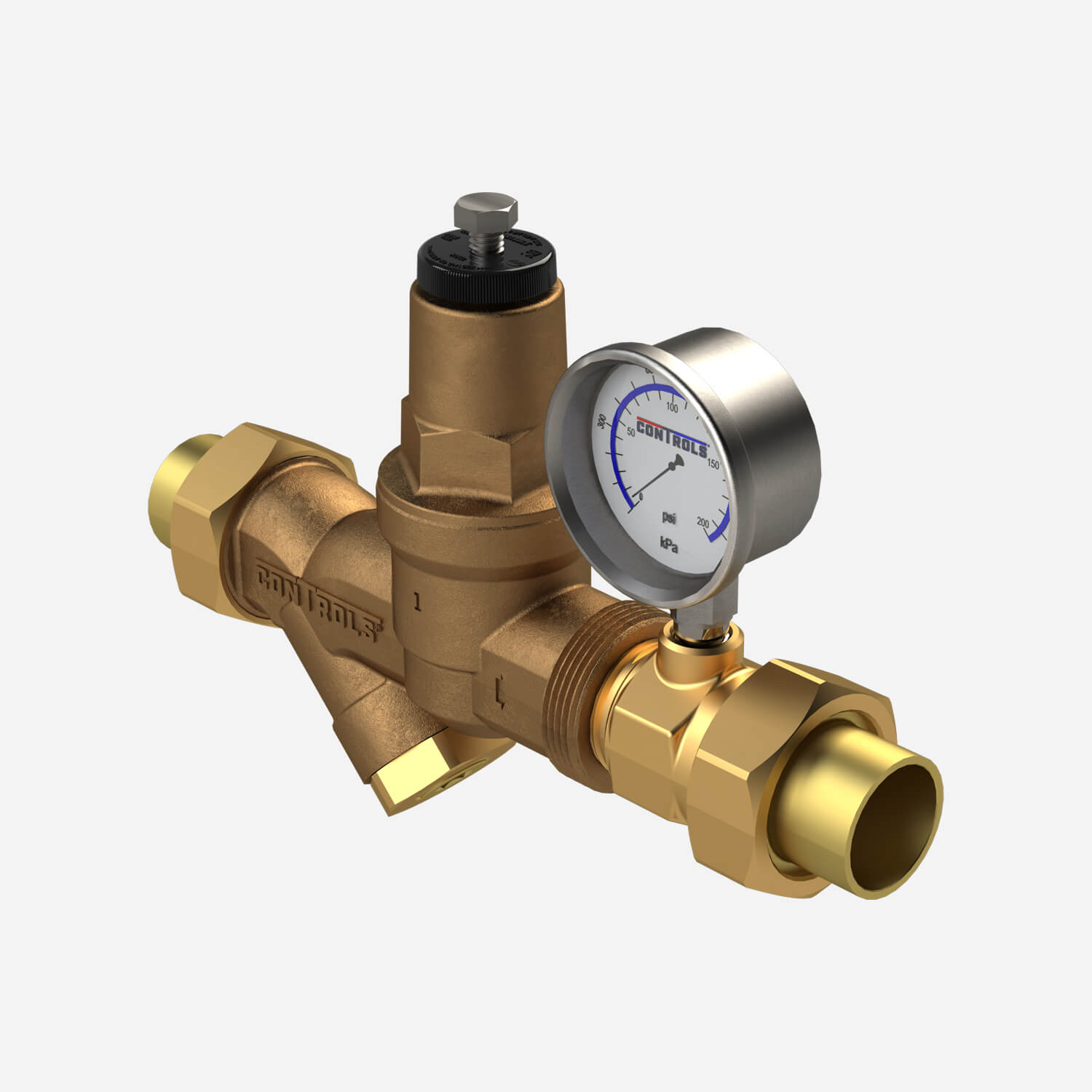

YRV03B0-3AAG Brass Bonnet Standard Pressure Spring 1" Valve Size Sweat Inlet Adapter Sweat Outlet Adapter Adapter with 0-200 psi Gauge

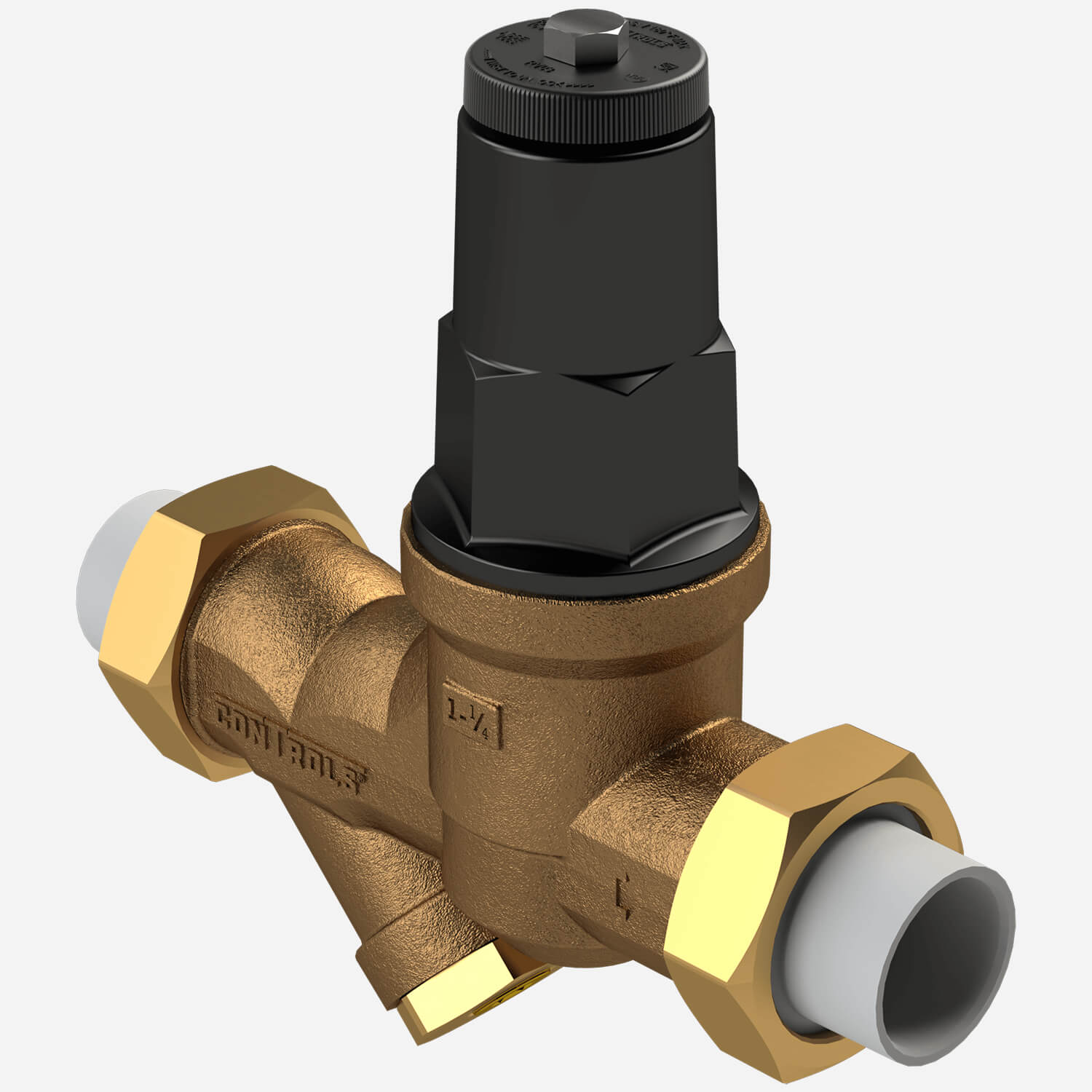

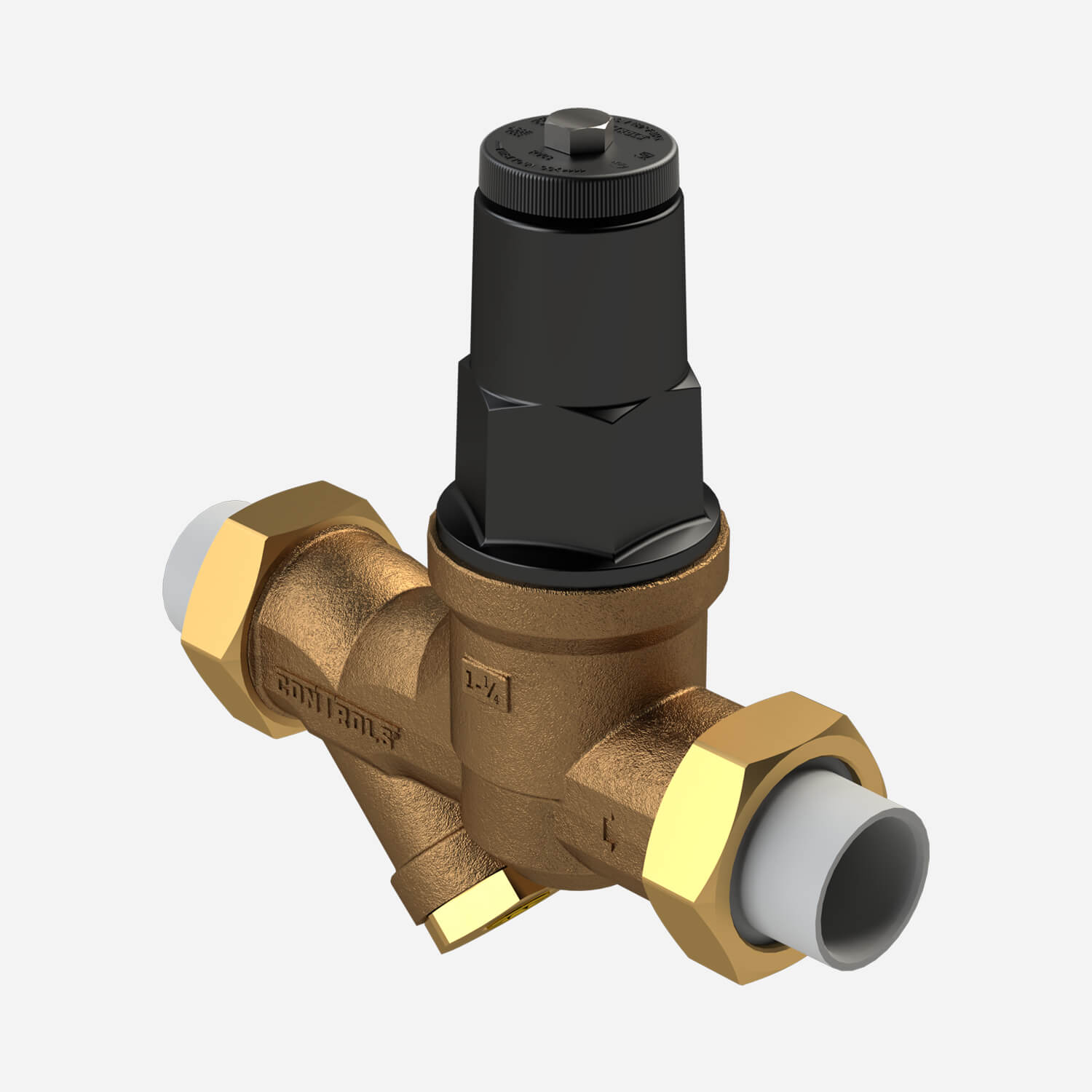

YRV03S0-4DD0 Steel Bonnet Standard Pressure Spring 1-1/4" Valve Size CPVC Inlet Adapter CPVC Outlet Adapter No Gauge Adapter

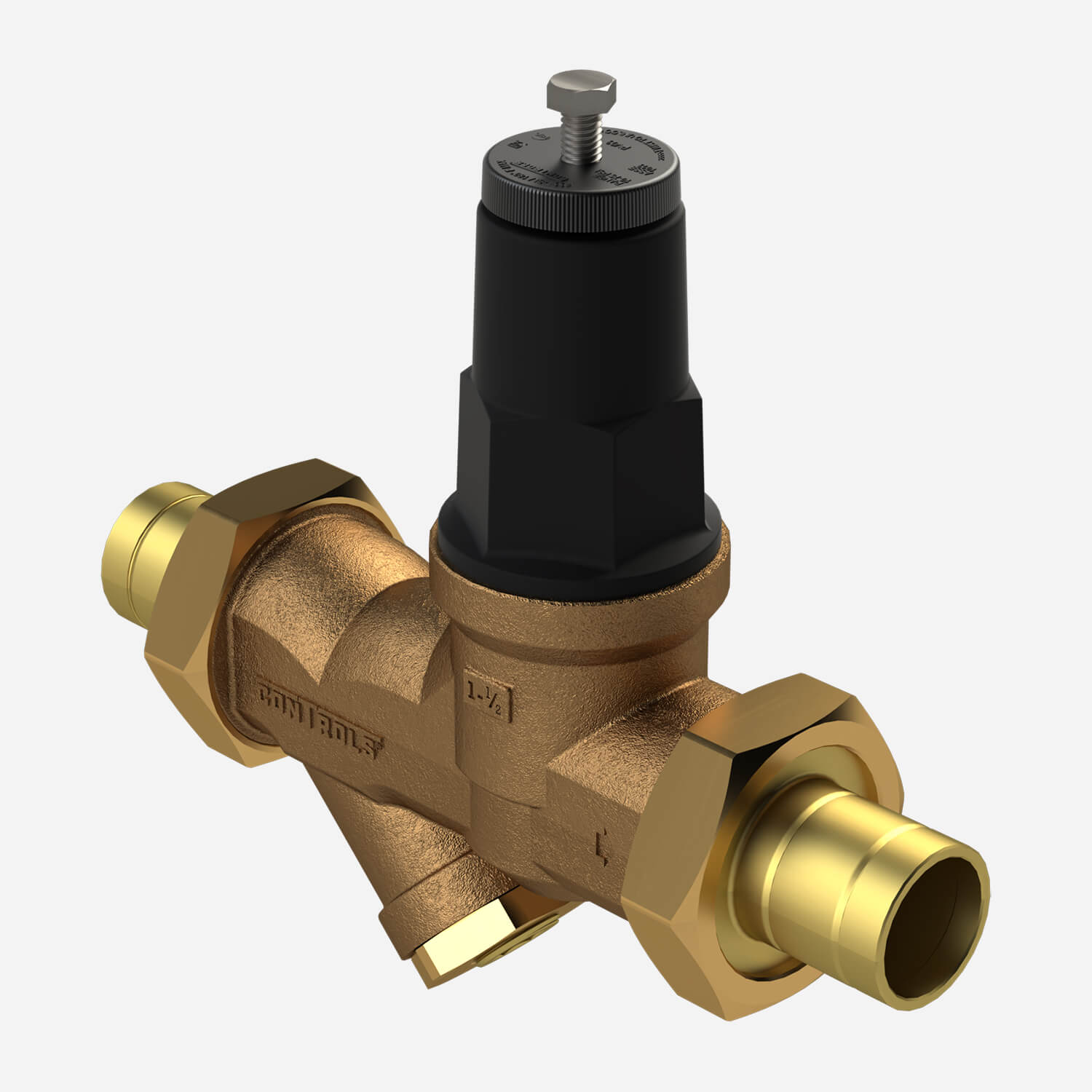

YRV03PH-5AAG Plastic Bonnet High Pressure Spring 1-1/2" Valve Size Sweat Inlet Adapter Sweat Outlet Adapter No Gauge Adapter

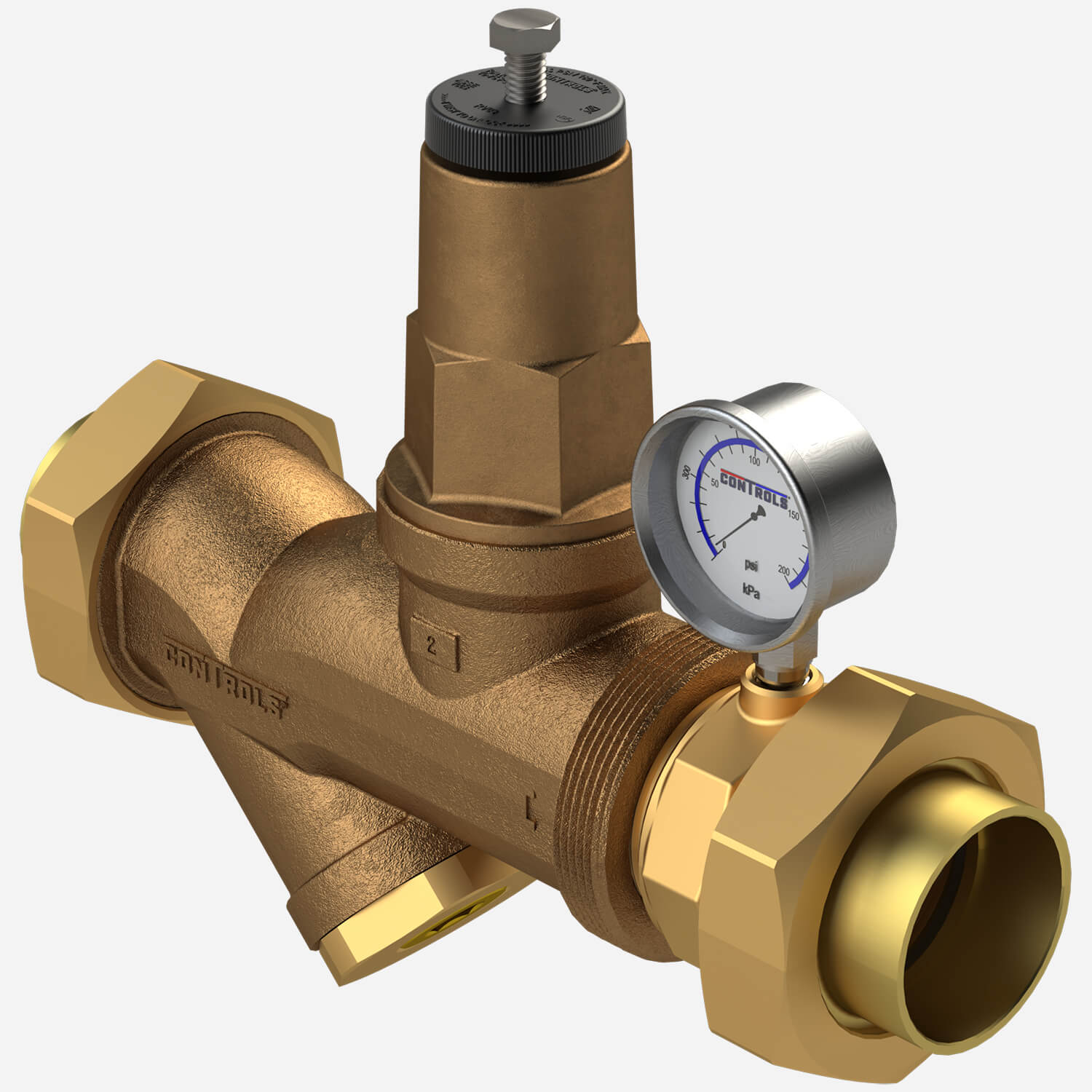

YRV03B0-6AAG Brass Bonnet Standard Pressure Spring 2" Valve Size Sweat Inlet Adapter Sweat Outlet Adapter Adapter with 0-200 psi Gauge
