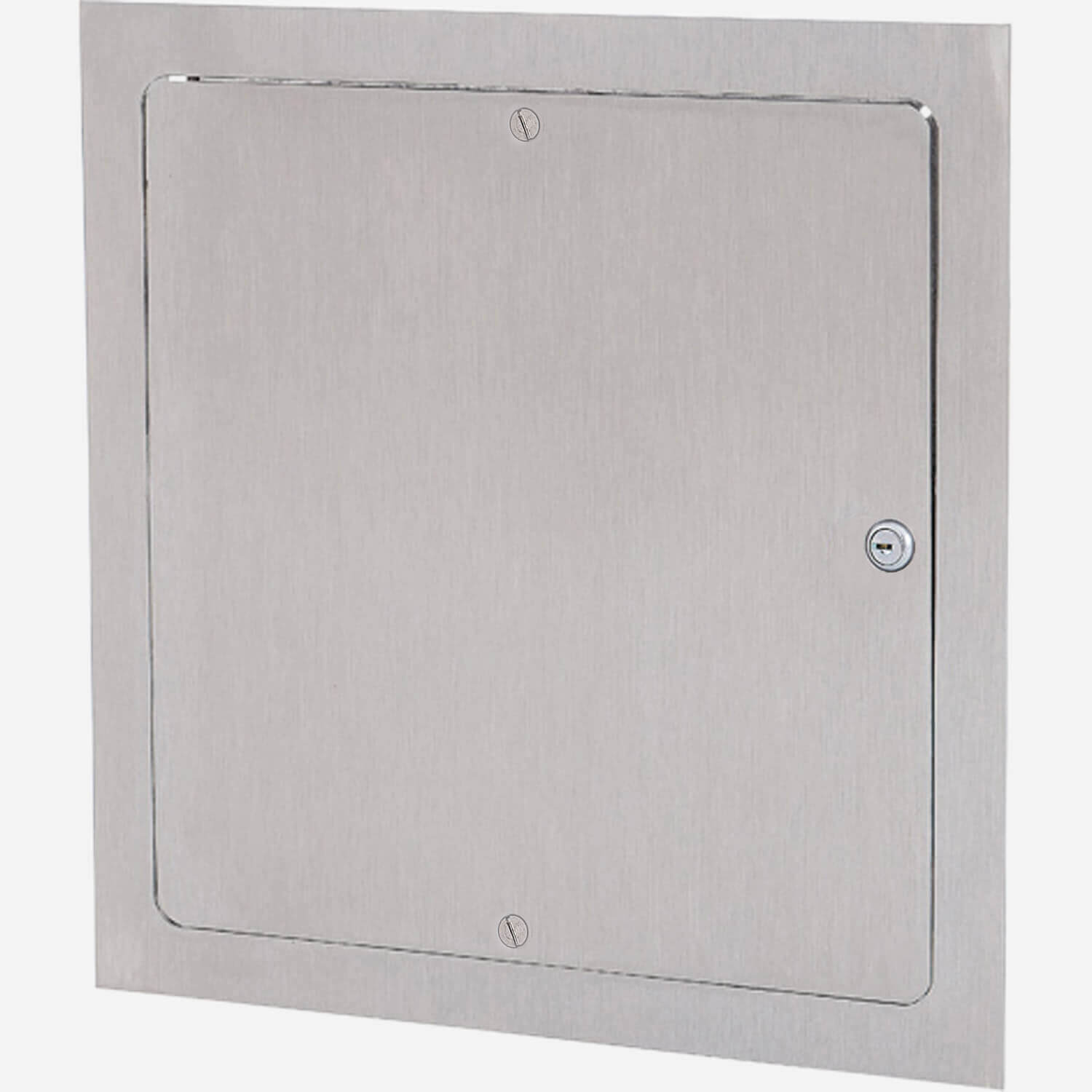

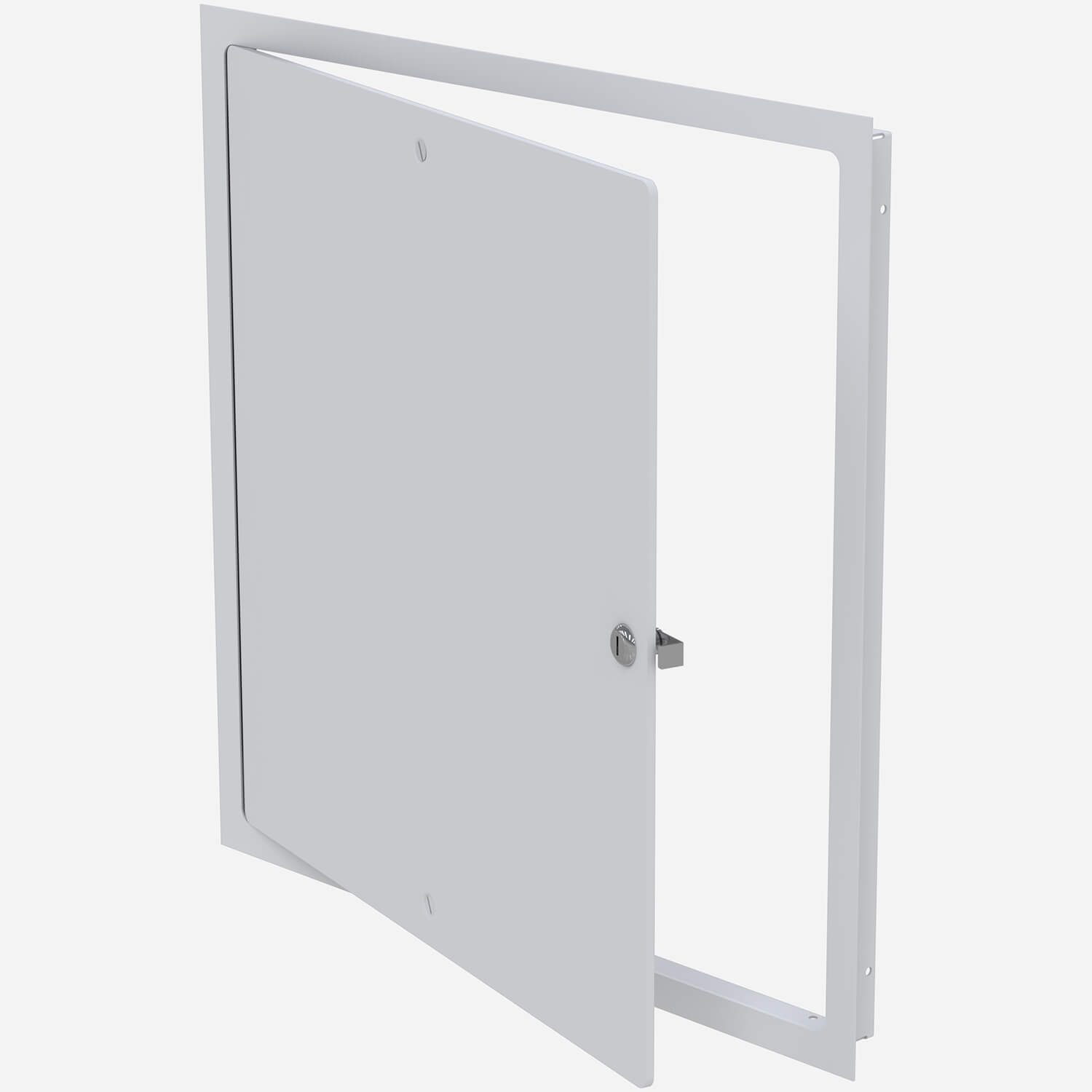

This provides a 20" x 20" access door to hide the valve. The access door is ideally suited for new installations or for remodeling in masonry, tile, wood, or other wall and ceiling surfaces.
The door and frame are fabricated from 16 gauge, galvannealed steel with a white prime coat finish. Alternatively, an all-stainless steel model is also available— specify -SS.
The door features rounded safety corners. The frame is one piece construction, 13/16" (20.64 mm) wide, and provides perfect concealment of the rough wall opening. Wall frame is provided with 1/4" mounting holes for fastening within the furred spaces, allowing faster installation and fixing maximum clearance.
The concealed pivoting rod hinge prevents distortion and closes the door squarely. Three latches are provided—the two (center top and center bottom) are screwdriver latches, while the middle latch is cylinder lock-operated. Keys are provided.
Dimensions
The nominal 20" x 20" (508 mm x 508 mm) dimension is the actual size of the door panel.
Overall dimensions, including the frame, are 21-5/8" x 21-5/8" x 2" (549 mm x 540 mm x 51 mm)
Shipping weight is 11 lbs (5 kg)
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Downloads
Resource Type
Title
Description
File Size
Action
Submittals
Spec Sheet Accessory -AD Door (pdf)
Accessory: 20" x 20" Access Door
137 KB
Brochures/Flyers
Acorn ConTrols® Sales Brochure (pdf)
Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building.
5 MB
Brochures/Flyers
Acorn ConTrols® Technical Brochure (pdf)
Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves.
