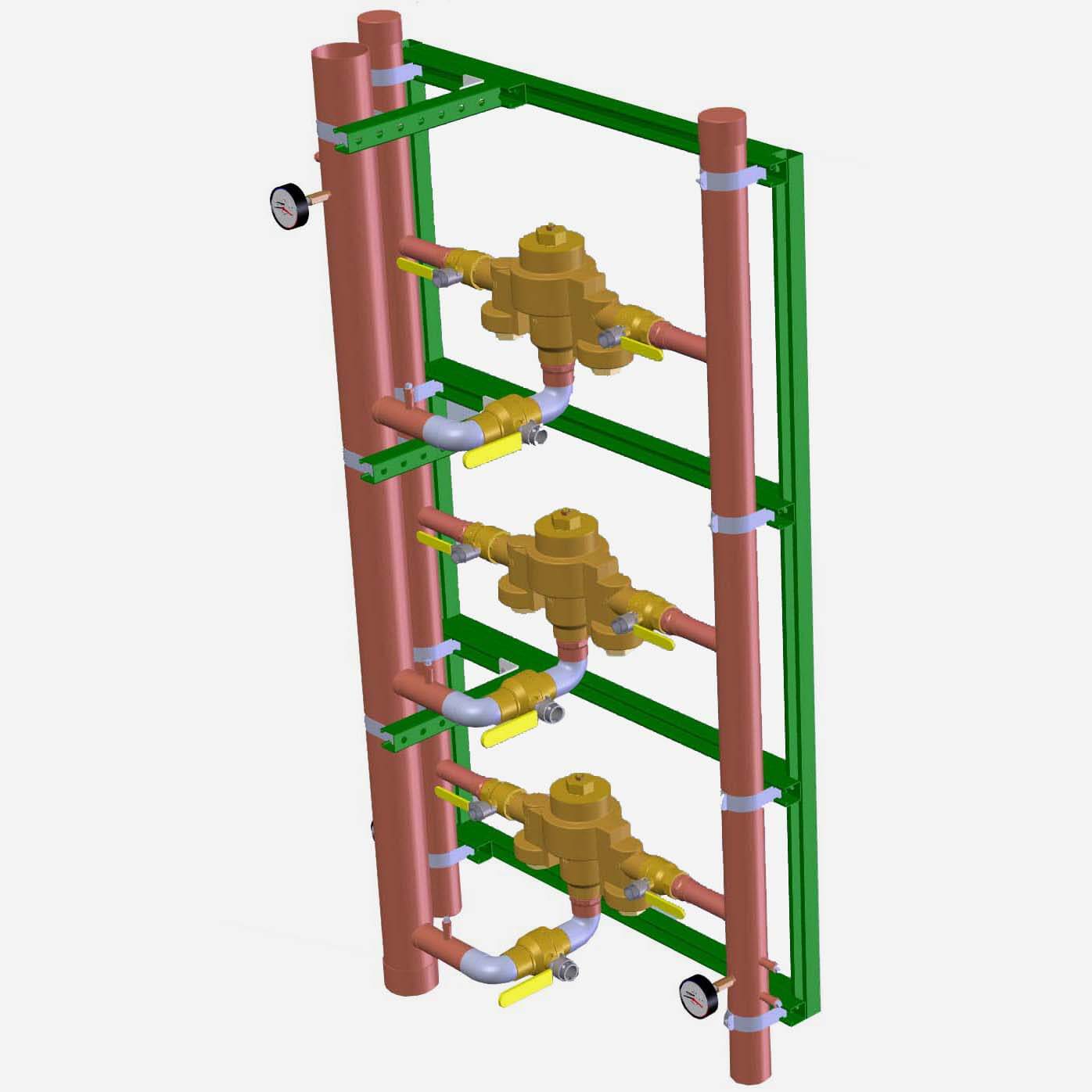

Thermostatic Hi-Lo Multi-Valve Supply Fixture

The model SFMMV Series Multi-Valve Supply Fixtures can be accurately referred to as a High/Low Multi-Valve fixture, compliant with the temperature control requirements of ASSE 1017 at flow rates well below the ASSE standard tested flow rate.

Key Benefits

• A customized valve system for whole- building or recirculating loop regulation
• 100% factory assembled and tested
• Based on  MV17 Master Mixing Valves
• Use for hot water distribution systems in small to large
• Available with BASyC ® upgrade  or option to add later

The SFMMV Series Multi-Valve Supply Fixture is ideal for applications without recirculating pumps where the minimum flow for accurate control can be met by the actual demand of but a few fixtures. They are also ideal for recirculating systems where demand can vary from the pump draw alone (no user demand) up to a very high user usage.

USED IN RESIDENTIAL, COMMERCIAL, INSTITUTIONAL, AND INDUSTRIAL APPLICATIONS

From small to large commercial applications, the SFMMV Series is offered in 10 models to allow you to select the valve with the capacity and performance capable of delivering safely controlled tempered hot water to all your fixtures, at all times.

SFMMV Series Supply Fixture Features

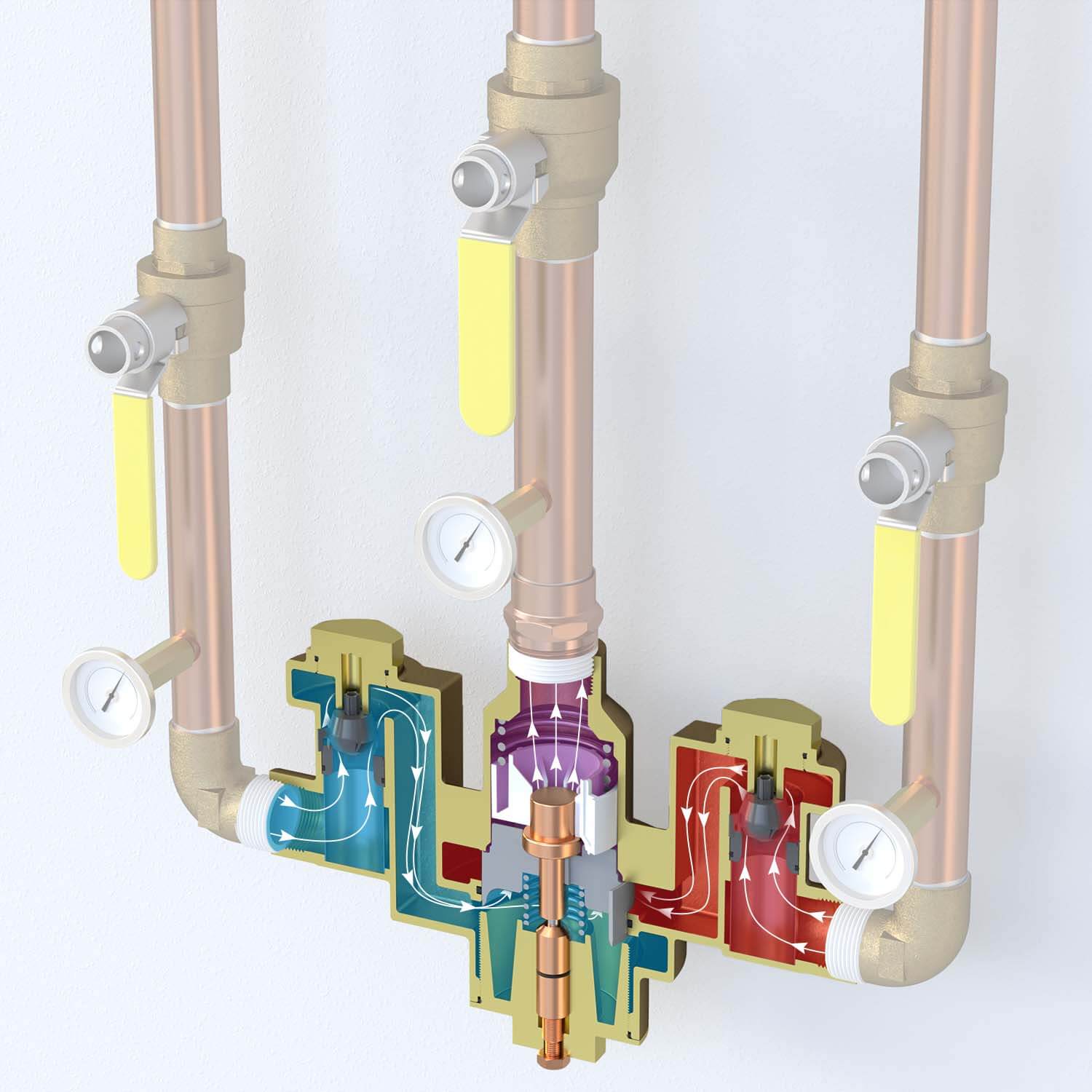

• Lead-Free soldered assembly featuring a DZR brass body mixing valve containing corrosion-resistant internal components. The wetted surface of these valves contacted by consumable water contains less than 0.25% of lead by weight in conformance with national lead free-law
• Integral cartridge-style checks with screens to prevent backflow and filter debris from entering the valve.
• Temperature adjustment is made using an Allen wrench. A locknut on the bonnet prevents unauthorized or accidental temperature adjustment.
• Commercial quality paraffin actuator provides repeatable, reliable performance.
• Includes lockable full port brass ball valves on inlet and outlet connections.
• Temperature/Pressure gauges on inlets and outlet.
• IAPMO certified per ASSE 1017 and CSAB125.3.
• Factory assembled and pneumatically tested to 80 PSI (552 kPa).
• The MV17 is capable of exceeding the temperature control accuracy requirements of ASSE 1017 at Zero GPM actual user demand. The system must include a continuously operating recirculation pump capable of meeting the minimum flow rate shown on the enclosed chart (3 to 12 GPM based on the model) with a correctly adjusted balancing valve.
• Option -CVS - Controlled Valve Staging eliminates the need for a PRV when lower minimum flows are required. Option -CVS offers a way to get lower minimum flows when using multi-valve systems in cases where these systems can’t be recirculated continuously or in cases where there are extreme high and low flow requirements. This is a less expensive, less complicated, and better performing system than two-valve high/low systems used in the past. With Option -CVS, a modified check valve is used in the larger valve to keep it closed during the low flow to force the water through the small valve.
• Upgradable to BASyC® by Acorn ConTrols®

This supply fixture is upgradeable with
