Name: Check Valve
Brand: Acorn ConTrols
SKU: CV Series

Model CV Series

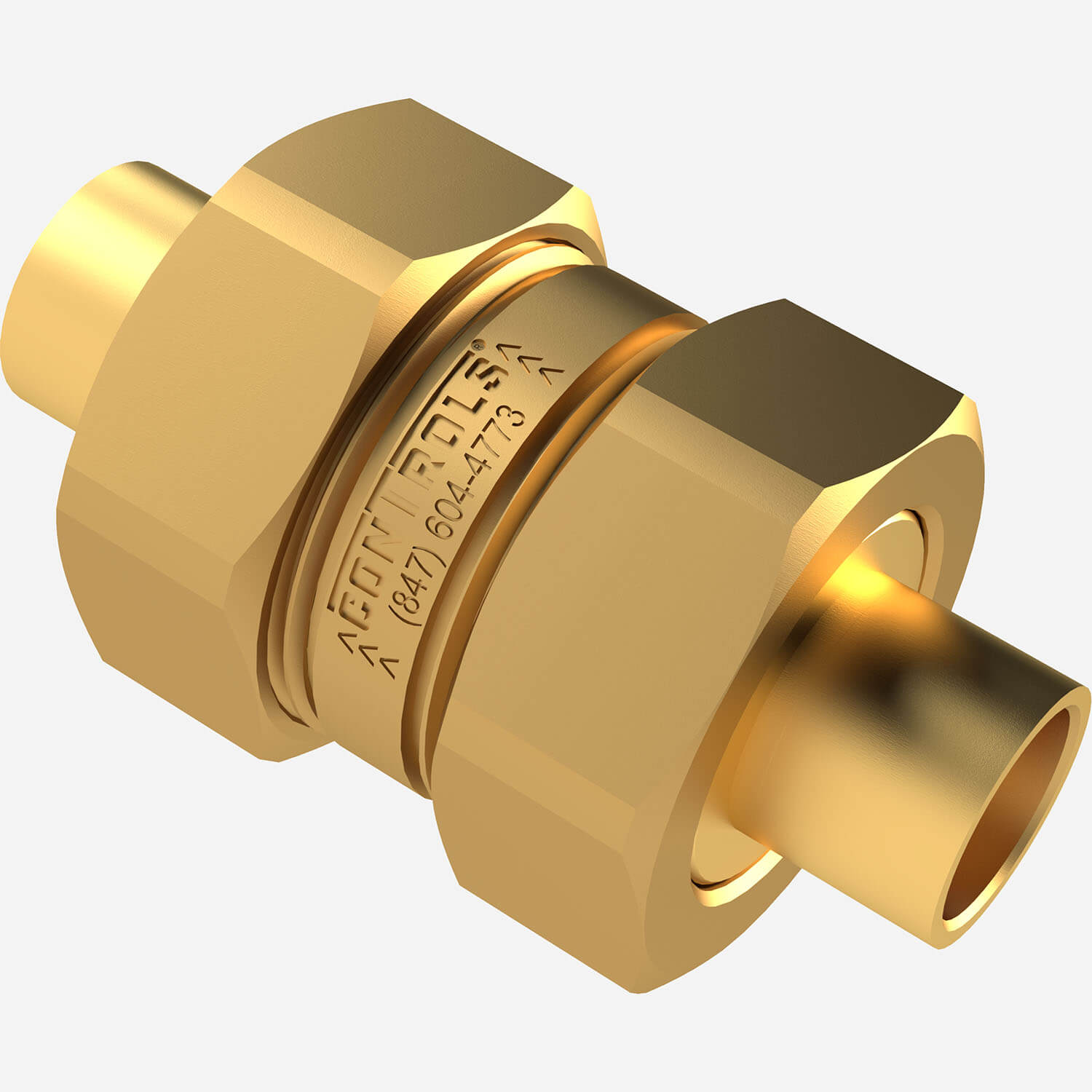

Check Valve

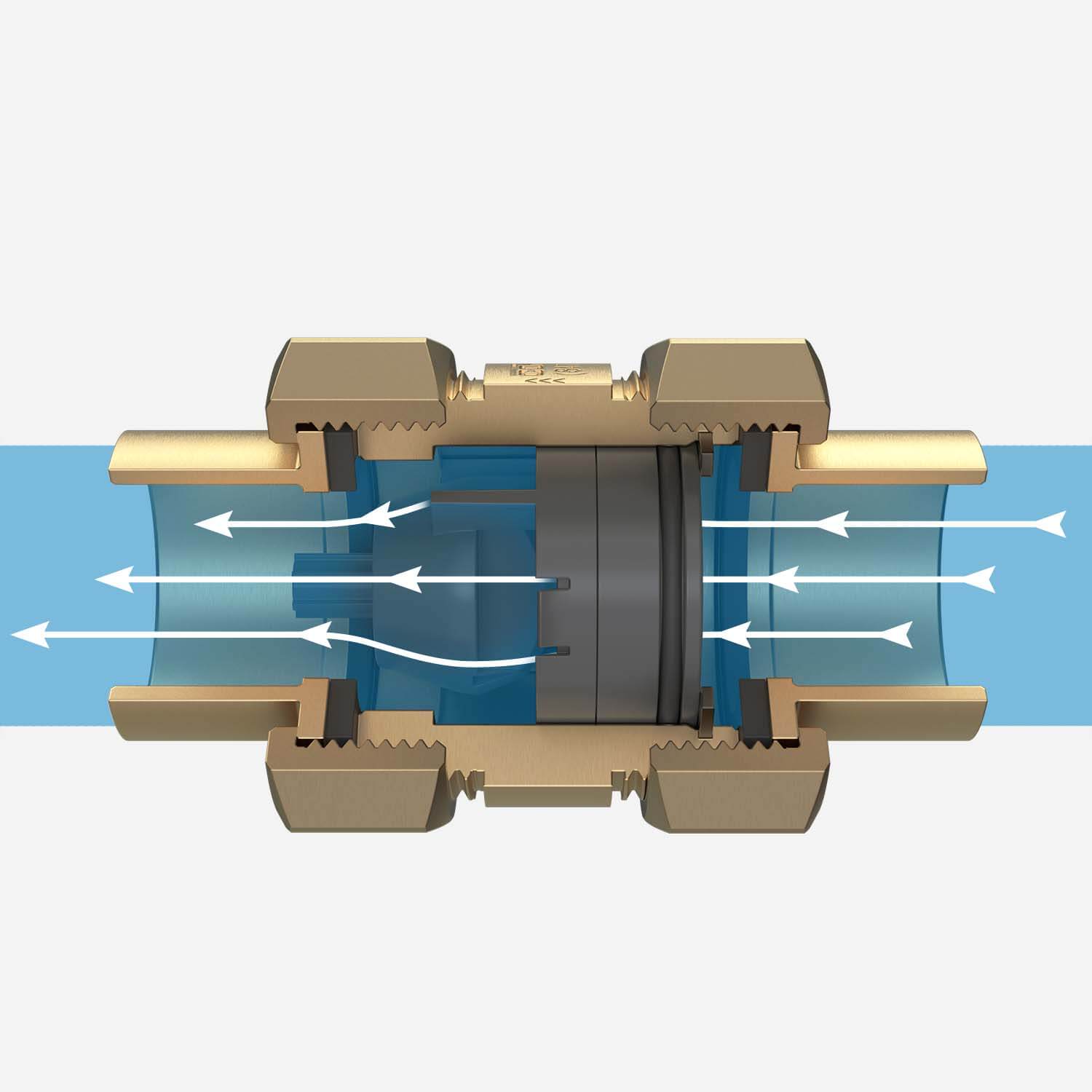

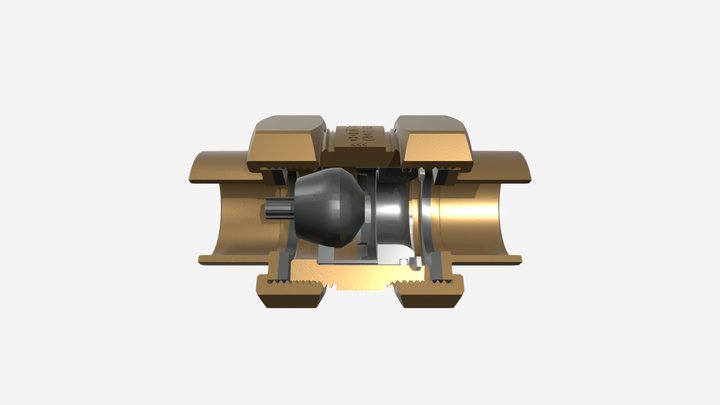

Acorn ConTrols® CV Series Check Valves are designed to allow flow in one direction and protect against crossflow. The valves are offered with unions/adapter kits for Sweat, NPTF, PEX, Press, and CPVC adapters. The water check valve features Lead-Free construction suitable for water supply pressures up to 125 psi (862 kPa) and temperatures up to 180°F (82.2°C).

Features

Available in 1/2" through 2" with Sweat, NPTF, PEX-A, Press, and CPVC Adapter Kits
Lead-Free construction - the wetted surface of these valves contacted by consumable water contains less than 0.25% of lead by weight in conformance with national lead-free law.
Compliant with NSF/ANSI 372
EPDM Gaskets
Engineered Thermoplastic
Stainless Steel Springs
Cracking Pressure less than 0.5 PSI
High Flow Rates
Optional Strainer Available

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual CV Series Check Valve (pdf)	Check Valve (available for 1/2", 3/4", 1", 1-1/4", 1-1/2",2" Valve Sizes)	300 KB
Submittals	Submittal CV Series Check Valves (pdf)	Check Valve (available for 1/2", 3/4", 1", 1-1/4", 1-1/2",2" Valve Sizes)	186 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Comprised of 28 divisions spanning diverse markets, Morris Group International designs, engineers, and manufactures products with precision to meet today’s construction and installation trends.	27 MB
Brochures/Flyers	Acorn ConTrols® System Flyer (pdf)	See how Acorn ConTrols® valves and systems work together to regulate the water flow through an entire building.	1 MB
Brochures/Flyers	Acorn ConTrols® Sales Brochure (pdf)	Acorn ConTrols® manufactures and distributes a complete line of thermostatic mixing, balancing, pressure regulating, and check valves to handle water temperature, pressure, and flow in a building.	5 MB
Brochures/Flyers	Acorn ConTrols® Technical Brochure (pdf)	Detailed specs and descriptions for the complete Acorn ConTrols® line of mixing, tempering, balancing, check, and pressure reducing valves.	4 MB
Brochures/Flyers	PRV Pressure Reducing Valves Flyer (pdf)	Acorn ConTrols® PRV Flyer (pdf)	1 MB
Brochures/Flyers	Kwik Ship® Brands PRV Spec Sheet (pdf)	Kwik Ship® Brands PRV Spec Sheet (pdf)	707 KB
BIM/CAD/Revit	CV Series Check Valve (rfa)	Check Valves [CV-1AA0 \| 1/2" Valve Size; Sweat Inlet/Outlet; CV-2BB0 \| 3/4" Valve Size; NPTF Inlet/Outlet; CV-3CC0 \| 1" Valve Size; PEX Inlet/Outlet; CV-4DD0 \| 1-1/4" Valve Size; CPVC Inlet/Outlet; CV-5EED \| 1-1/2" Valve Size; Press Fit Inlet/Outlet]	376 KB
BIM/CAD/Revit	CV Series Check Valves (dwg/zip)	Check Valves [CV-1AA0 \| 1/2" Valve Size; Sweat Inlet/Outlet; CV-2BB0 \| 3/4" Valve Size; NPTF Inlet/Outlet; CV-3CC0 \| 1" Valve Size; PEX Inlet/Outlet; CV-4DD0 \| 1-1/4" Valve Size; CPVC Inlet/Outlet; CV-5EED \| 1-1/2" Valve Size; Press Fit Inlet/Outlet]	372 KB
Videos	Acorn ConTrols® Valves Make Water Circulation Simple (video)	Make water circulation simple with Acorn ConTrols® valves. Our valves address all your water supply needs throughout the entire building at every fixture on every floor. Watch our video to learn how!	133 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Pressure Rating	125 PSI (862 kPa)
Temperature Rating	180°F (82.2°C)
Compliance	No Lead - Federal Public Law 111-380, NSF/ANSI 372
Valve Size	1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Connections	PEX-A, Sweat, NPTF, PEX-B, CPVC, Press Fit
Brand	Acorn ConTrols®
Product Type	Check Valve, Thermostatic Balancing Valve

Models

CV -

Valve Size 1st Cell

1 | 1/2"
2 | 3/4"
3 | 1"
4 | 1-1/4"
5 | 1-1/2"
6 | 2"

Inlet Adapter Type 2nd Cell

0 | None
A | Sweat
B | NPTF
C | PEX-B
D | CPVC
E | Press Fit
F | PEX-A

Outlet Adapter Type 3rd Cell

0 | None
A | Sweat
B | NPTF
C | PEX-B
D | CPVC
E | Press Fit
F | PEX-A

Strain/Filter 4th Cell

0 | None
F | Included
